Paper,
cont'd.

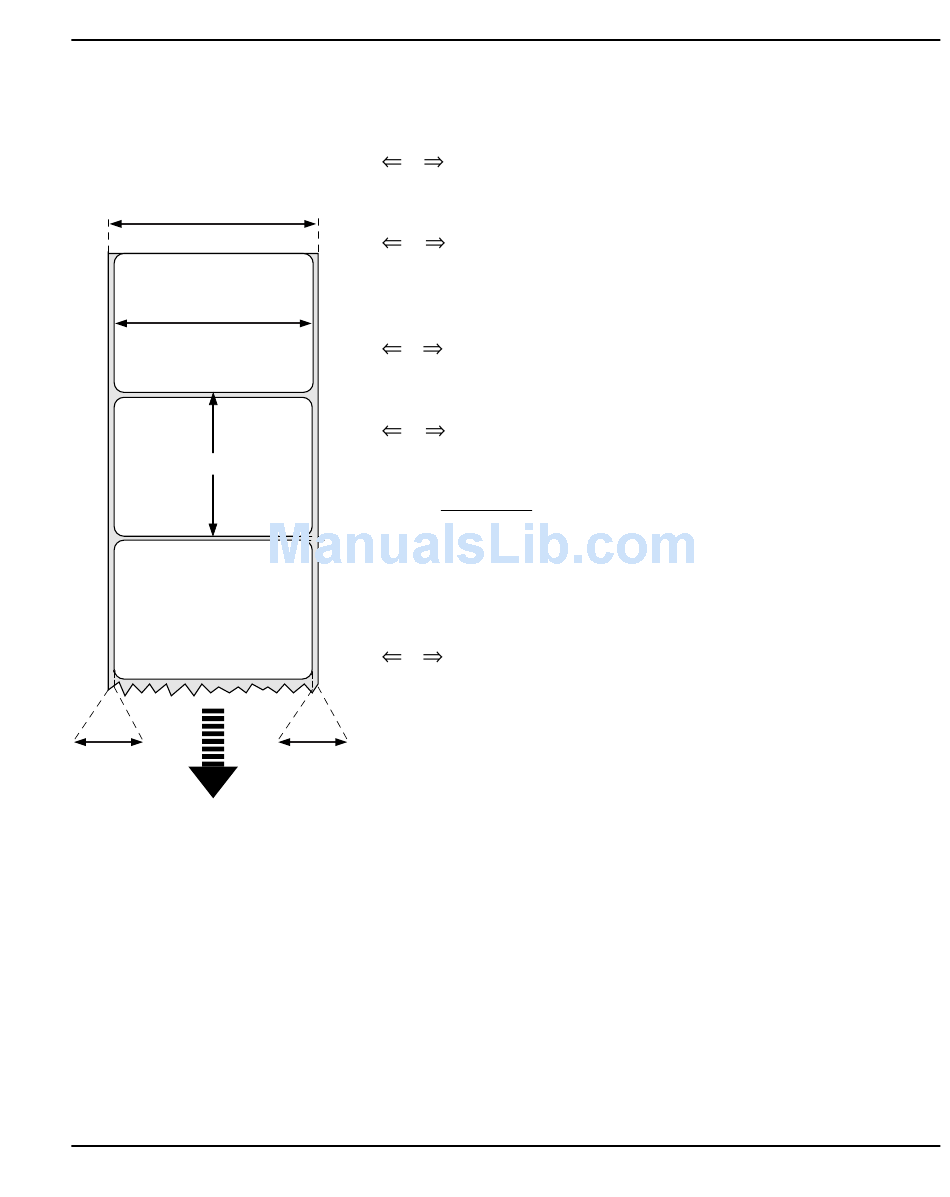

Self-Adhesive Labels
a
c
d
SELF-ADHESIVE
LABELS
b
PAPER FEED
DIRECTION
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
a Web Width (including backing paper):
Maximum .......................... :
Minimum .......................... :
b Backing Paper
The backing paper must not extend more than a total of 1.6 mm
(0.06") outside the paper and should protrude equally on both side.
Minimum transparency: 40% (DIN 53147).
c Label Width (excluding backing paper):
Maximum .......................... :
Minimum .......................... :
d Label Length:
Minimum .......................... :
Max label length ................ :
Under favourable circumstances, a minimum label length down to
4 mm (0.16") could be used. It requires the sum of the label length
e
(d) and the label gap (e) to be larger than 7 mm (0.28"), that batch
printing is used, and that no pull back of the paper is performed.
Intermec does not guarantee that such short labels will work, but it
is up to the user to test this in his unique application.
e Label Gap:
Maximum .......................... :
Recommended ................... :
Minimum: ..........................
b
The Label Stop Sensor must be able to detect the extreme front
edges of the labels. It can be moved within a range of 0 – 50 mm
(1.97") from the inner edge of the paper web.
Media Type Setup:
• Label (w gaps)
Appendix 2 Media Specifications
168.0 mm (6.61")
76.2 mm (3.00")
166.4 mm (6.55")
76.4 mm (2.94")
8.0 mm (0.32")
depends on DRAM memory size
21.3 mm (0.83")
1.6 mm (0.06")
1.2 mm (0.05")
