Paper,
cont'd.

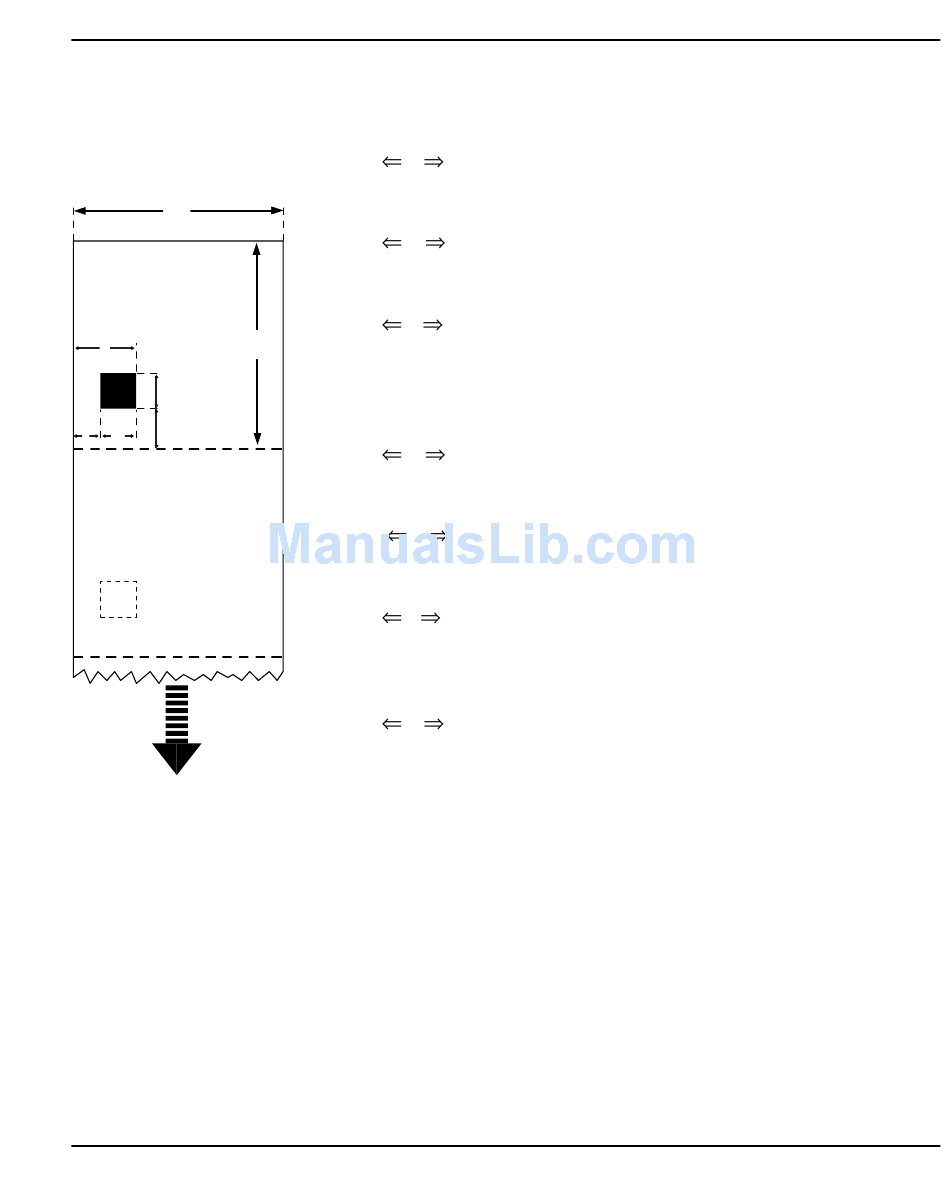

Tickets with Black Mark
a
e
f
g
c d
TICKETS
PAPER FEED
DIRECTION
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
a
Maximum .......................... :
Minimum .......................... :
b
Minimum .......................... :
Maximum .......................... : depends on DRAM memory size
c
b
The distance between the inner edge of the paper web and the inner
edge of the black mark must be:
Maximum .......................... :
Minimum .......................... :
d
The detectable width of the black mark must be:
Minimum .......................... :
e
No restriction, but the LSS cannot detect the mark more than 50
mm (1.97") from the inner edge of the paper.
f
Maximum .......................... :
Common ........................... :
Minimum .......................... :
g
It is recommended to place the black mark as close to the front edge
of the ticket as possible and use a negative Stop Adjust value to
control the paper feed, so the tickets can be properly torn or cut off.
Media Type Setup:
• Ticket (w mark)
Important! Preprint that may interfere with the detection of the black
mark should be avoided on the back of the paper. However, the
LBLCOND statement allows the sensor to be temporarily disabled
during a specified amount of paper feed in order to avoid uninten-
tional detection, see Intermec Fingerprint manuals.
Black marks should be non-reflective carbon black on a whitish
background.
Do not allow the any perforations to break the edge of the web, as
this may cause the web to split, resulting in a paper jam.
Web Width:
Copy Length:
Black Mark Offset:
Black Mark Width:
Black Mark End:
Black Mark Height:
Black Mark Y-Position:
