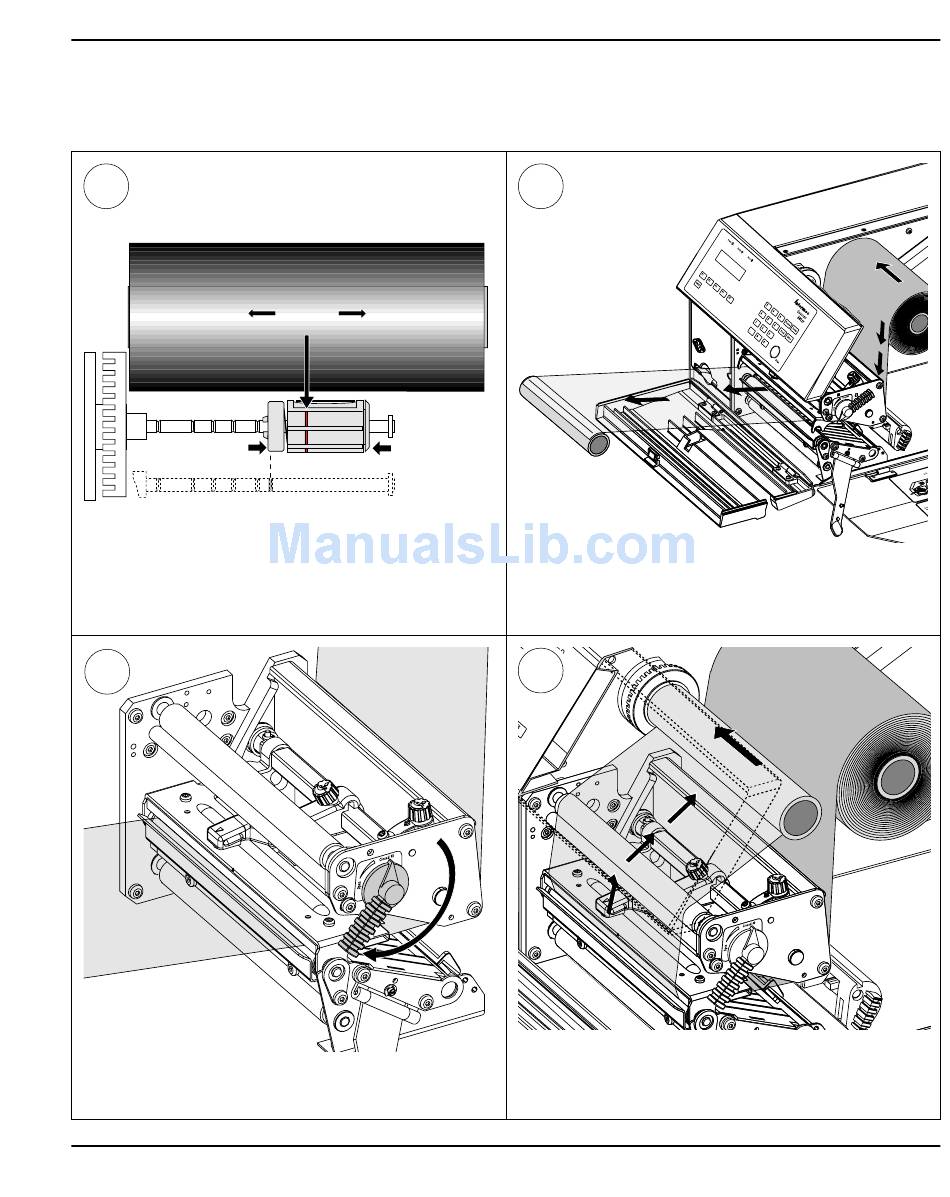

Ribbon Load,
6f
In case of 166 mm (6.5") ribbon width, com-
press the bobbin and move it so it snaps into the
6:th (outermost) groove.
8
Without releasing the ribbon, turn the printhead
lift knob to "Closed" position to lock the ribbon.
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
cont'd.
166 mm
(6.5")
#6
Chapter 6
7
2.
Press the ribbon roll onto the ribbon supply spool
(1) and thread the ribbon through the print unit.
Pull out approx. 20 cm (8) of ribbon (2).
9
Press the cardboard core at the front end of the
ribbon onto the take-up spool. Both spools
should rotate counter-clockwise.
Thermal Transfer Printing
