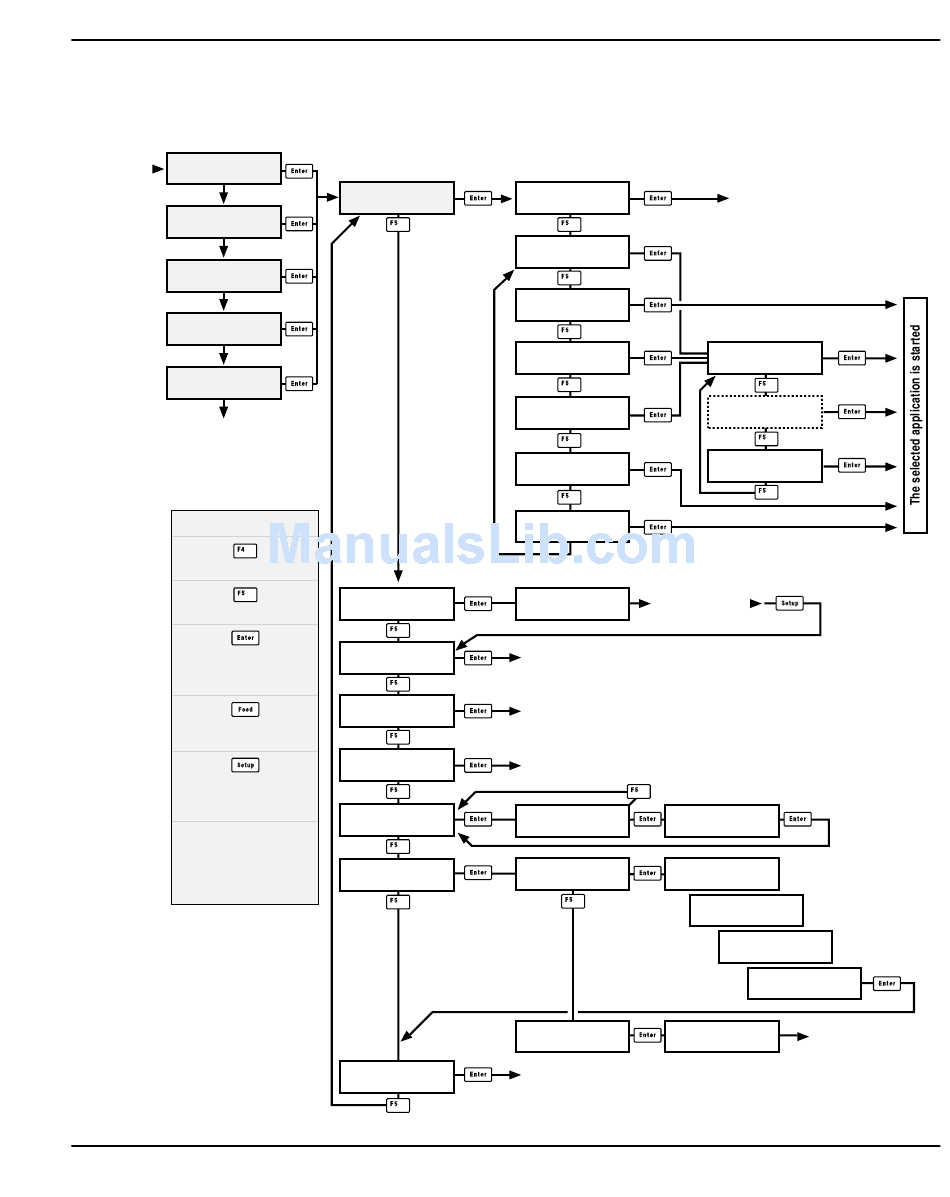

Intermec Shell Diagram

ENTER=SHELL
POWER ON
5 sec. v.4.2
ENTER=SHELL
4 sec. v.4.2
ENTER=SHELL
3 sec. v.4.2
ENTER=SHELL
2 sec. v.4.2
ENTER=SHELL
1 sec. v.4.2
Last selected
application is started
Default:
UBI Fingerprint
w. std I/O = "uart1:"
Legend:
Return to previous menu.
Proceed to next menu.
Accept displayed option
and proceed, or
execute displayed option.
Perform a Testfeed
anywhere in Intermec Shell.
Enter the Setup Mode
from anywhere
in Intermec Shell.
Enter Terminal Setup
by transmitting T T T
or t t t to printer,
when menus marked with a
shade of grey are displayed!
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
SHELL
SEL. APPLICATION
SEL. APPLICATION
CURRENT APPL.
SEL. APPLICATION
LABELSHOP
SEL. APPLICATION
WINDOWS DRIVER
SEL. APPLICATION
Fingerprint 7.12
SEL. APPLICATION
Direct Protocol
SEL.APPL rom:
LINE_AXP.PRG
SEL.APPL rom:
LSS-SENSOR.PRG
SHELL SETUP:
SETUP SER-COM,UART1
SHELL
PRINT SETUP
SHELL
TESTFEED
SHELL
TEST LABEL
SHELL
ARE YOU SURE ?
DEFAULT SETUP
Y=ENTER/ N=F5
UPDATE:
SHELL
PC-CARD?
SOFTWARE UPDATE
UPDATE:
FIRMWARE
SHELL
Restarts the printer (same as power off/on)
REBOOT
Chapter 9 Intermec Shell Startup Program
See "Setup Mode"
Prints a list of current setup values (test label #5).
Performs a Testfeed, i.e. feeds out a number of blank copies
while autoadjusting the label stop sensor.
Prints test labels #1 – #4 in a loop.
Press Enter for each new label.
DEFAULT SETUP
PERFORMED
PC-CARD ERASE
TRANSFER FILE
USING ZMODEM
TRANSFER FILE
USING ZMODEM
Last selected application is started
STD I/O CHANNEL
UART1
STD I/O CHANNEL
UART2
See note 1
STD I/O CHANNEL
CENTRONICS
Note 1:
This menu is only shown if
an optional interface pcb is fitted
PROGRAMMING
PC-CARD
PROGRAMMING
COMPLETED
Printer rebooted
automatically
71
