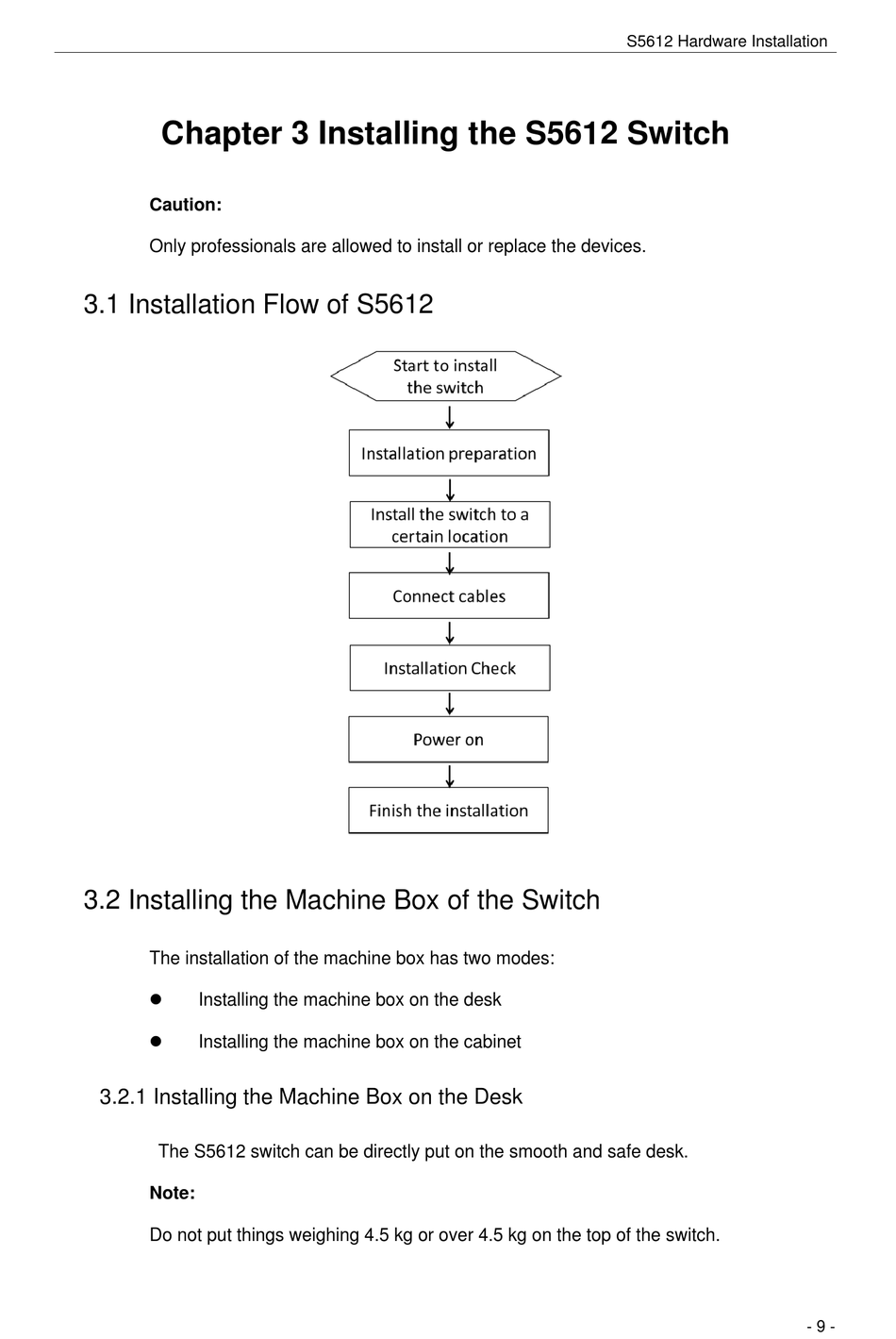

Chapter 3 Installing the S5612 Switch

Caution:
Only professionals are allowed to install or replace the devices.

3.1 Installation Flow of S5612

3.2 Installing the Machine Box of the Switch

The installation of the machine box has two modes:


Installing the machine box on the desk


Installing the machine box on the cabinet
3.2.1 Installing the Machine Box on the Desk
The S5612 switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
