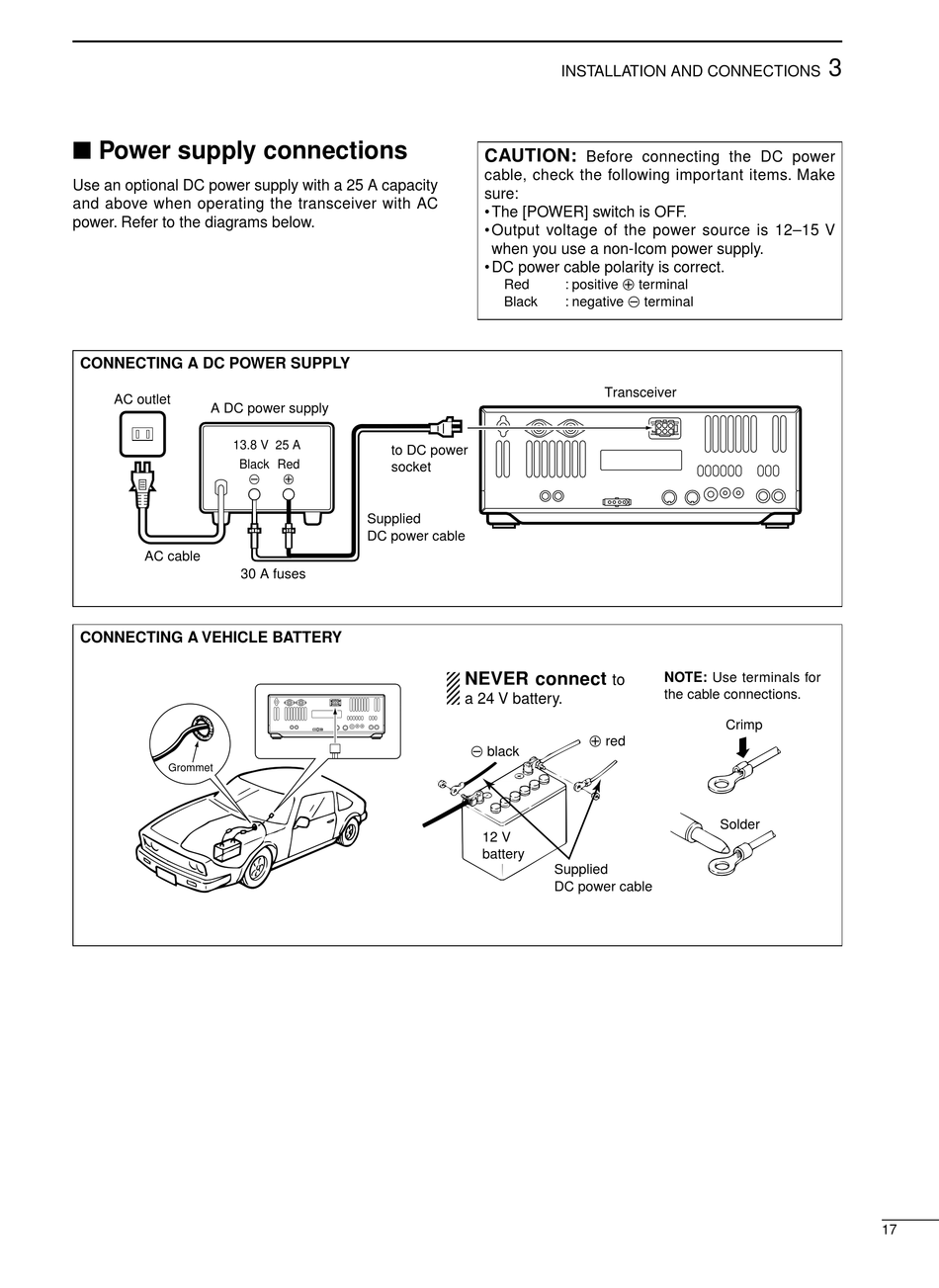

Power supply connections

Use an optional DC power supply with a 25 A capacity
and above when operating the transceiver with AC
power. Refer to the diagrams below.
CONNECTING A DC POWER SUPPLY
AC outlet
A DC power supply
13.8 V 25 A
Black
_
AC cable
30 A fuses
CONNECTING A VEHICLE BATTERY
Grommet
to DC power
Red
socket
+
Supplied
DC power cable
INSTALLATION AND CONNECTIONS
CAUTION:
Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
Transceiver
NEVER connect
to
a 24 V battery.
+ red
_ black
12 V
battery
Supplied
DC power cable
3
NOTE: Use terminals for
the cable connections.
Crimp
Solder
