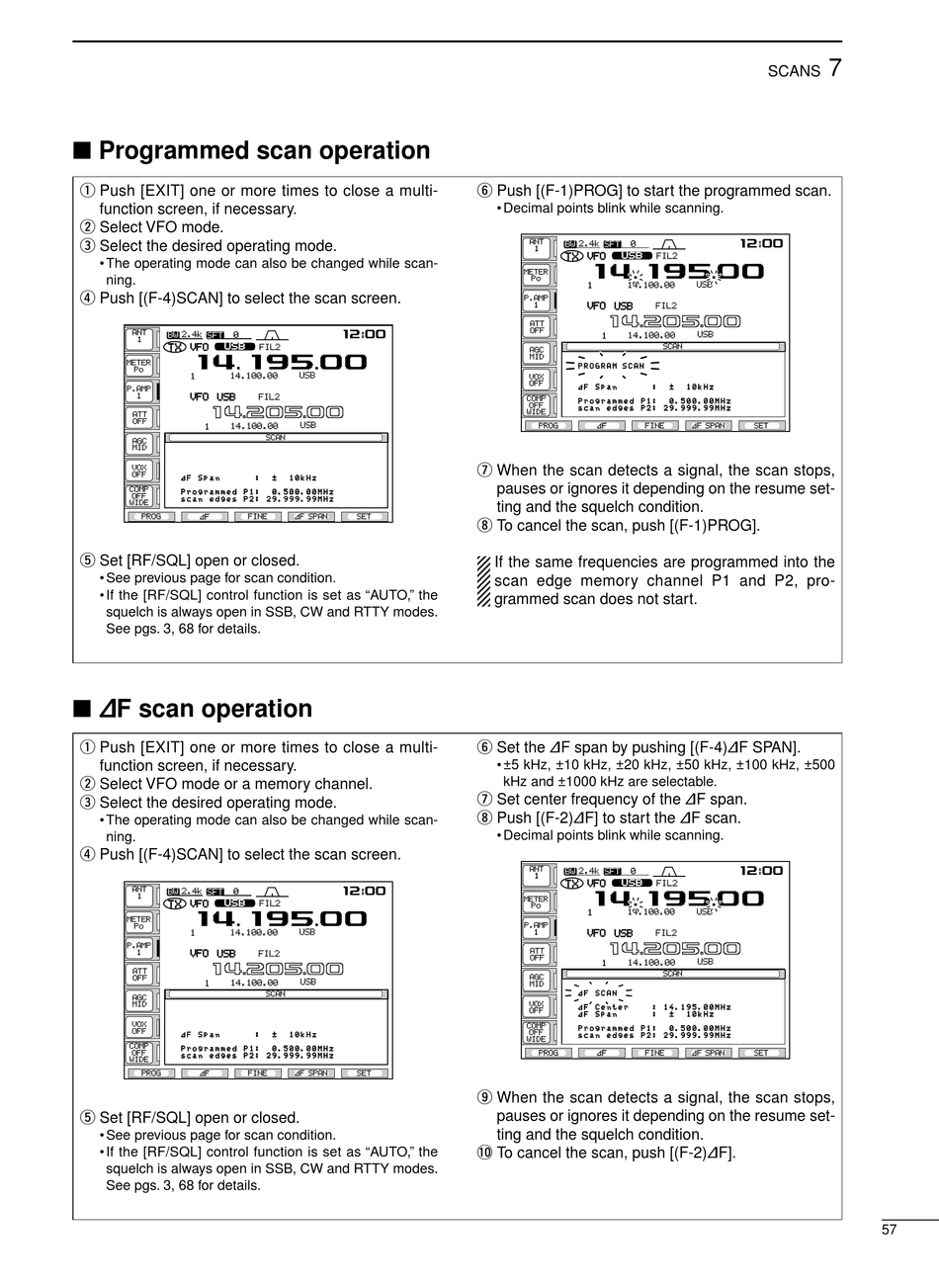

Programmed scan operation

q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Select VFO mode.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [(F-4)SCAN] to select the scan screen.
qr≥qot≥pp
qr≥wpt≥pp
t Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as "AUTO," the
squelch is always open in SSB, CW and RTTY modes.
See pgs. 3, 68 for details.
∂ ∂ F scan operation
q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Select VFO mode or a memory channel.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [(F-4)SCAN] to select the scan screen.
qr≥qot≥pp
qr≥wpt≥pp
t Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as "AUTO," the
squelch is always open in SSB, CW and RTTY modes.
See pgs. 3, 68 for details.
y Push [(F-1)PROG] to start the programmed scan.
• Decimal points blink while scanning.
qw pp
u When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
i To cancel the scan, push [(F-1)PROG].
If the same frequencies are programmed into the
scan edge memory channel P1 and P2, pro-
grammed scan does not start.
y Set the ∂F span by pushing [(F-4)∂F SPAN].
• ±5 kHz, ±10 kHz, ±20 kHz, ±50 kHz, ±100 kHz, ±500
kHz and ±1000 kHz are selectable.
u Set center frequency of the ∂F span.
i Push [(F-2)∂F] to start the ∂F scan.
• Decimal points blink while scanning.
qw pp
o When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
!0 To cancel the scan, push [(F-2)∂F].
qw pp
qr≥qot≥pp
qr≥wpt≥pp
qw pp
qr≥qot≥pp
qr≥wpt≥pp
7
SCANS
57
