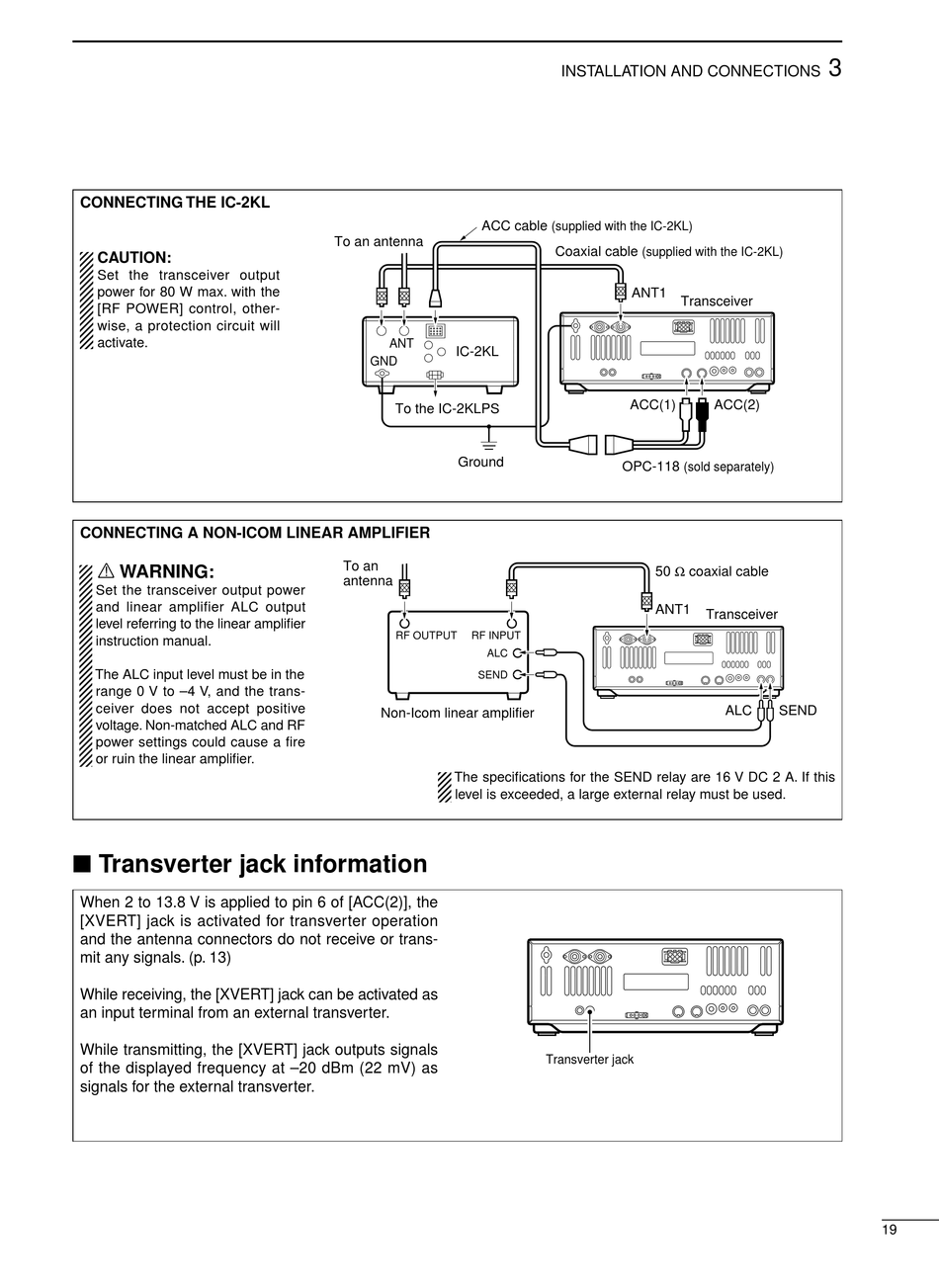

CONNECTING THE IC-2KL
CAUTION:
Set the transceiver output
power for 80 W max. with the
[RF POWER] control, other-
wise, a protection circuit will
activate.
CONNECTING A NON-ICOM LINEAR AMPLIFIER
R WARNING:
Set the transceiver output power
and linear amplifier ALC output
level referring to the linear amplifier
instruction manual.
The ALC input level must be in the
range 0 V to –4 V, and the trans-
ceiver does not accept positive
voltage. Non-matched ALC and RF
power settings could cause a fire
or ruin the linear amplifier.

Transverter jack information

When 2 to 13.8 V is applied to pin 6 of [ACC(2)], the
[XVERT] jack is activated for transverter operation
and the antenna connectors do not receive or trans-
mit any signals. (p. 13)
While receiving, the [XVERT] jack can be activated as
an input terminal from an external transverter.
While transmitting, the [XVERT] jack outputs signals
of the displayed frequency at –20 dBm (22 mV) as
signals for the external transverter.
ACC cable
To an antenna
ANT
IC-2KL
GND
To the IC-2KLPS
Ground
To an
antenna
RF OUTPUT RF INPUT
ALC
SEND
Non-Icom linear amplifier
The specifications for the SEND relay are 16 V DC 2 A. If this
level is exceeded, a large external relay must be used.
INSTALLATION AND CONNECTIONS
(supplied with the IC-2KL)
Coaxial cable
(supplied with the IC-2KL)
ANT1
Transceiver
ACC(1) ACC(2)
OPC-118
(sold separately)
50 coaxial cable
ANT1
Transceiver
Transverter jack
3
ALC SEND
19
