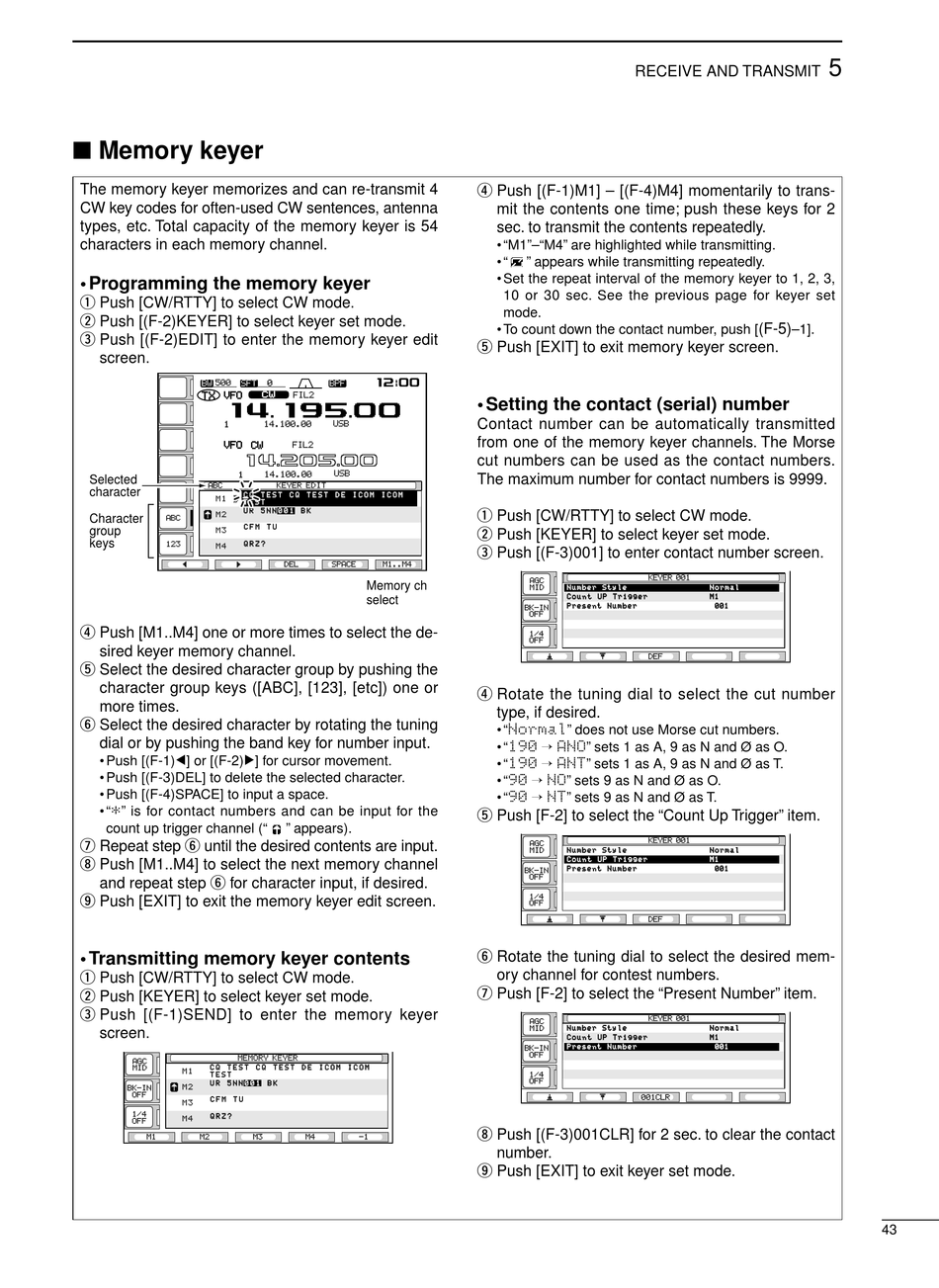

Memory keyer

The memory keyer memorizes and can re-transmit 4
CW key codes for often-used CW sentences, antenna
types, etc. Total capacity of the memory keyer is 54
characters in each memory channel.
• Programming the memory keyer
q Push [CW/RTTY] to select CW mode.
w Push [(F-2)KEYER] to select keyer set mode.
e Push [(F-2)EDIT] to enter the memory keyer edit
screen.
qr≥qot≥pp
qr≥wpt≥pp
Selected
character
Character
group
keys
r Push [M1..M4] one or more times to select the de-
sired keyer memory channel.
t Select the desired character group by pushing the
character group keys ([ABC], [123], [etc]) one or
more times.
y Select the desired character by rotating the tuning
dial or by pushing the band key for number input.
• Push [(F-1)Ω] or [(F-2)≈] for cursor movement.
• Push [(F-3)DEL] to delete the selected character.
• Push [(F-4)SPACE] to input a space.
• " " is for contact numbers and can be input for the
count up trigger channel ("
u Repeat step y until the desired contents are input.
i Push [M1..M4] to select the next memory channel
and repeat step y for character input, if desired.
o Push [EXIT] to exit the memory keyer edit screen.
• Transmitting memory keyer contents
q Push [CW/RTTY] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [(F-1)SEND] to enter the memory keyer
screen.
qw pp
Memory ch
select
" appears).
RECEIVE AND TRANSMIT
r Push [(F-1)M1] – [(F-4)M4] momentarily to trans-
mit the contents one time; push these keys for 2
sec. to transmit the contents repeatedly.
• "M1"–"M4" are highlighted while transmitting.
• " " appears while transmitting repeatedly.
• Set the repeat interval of the memory keyer to 1, 2, 3,
10 or 30 sec. See the previous page for keyer set
mode.
• To count down the contact number, push [
t Push [EXIT] to exit memory keyer screen.
• Setting the contact (serial) number
Contact number can be automatically transmitted
from one of the memory keyer channels. The Morse
cut numbers can be used as the contact numbers.
The maximum number for contact numbers is 9999.
q Push [CW/RTTY] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [(F-3)001] to enter contact number screen.
r Rotate the tuning dial to select the cut number
type, if desired.
• " " does not use Morse cut numbers.
• " " sets 1 as A, 9 as N and Ø as O.
• " " sets 1 as A, 9 as N and Ø as T.
• " " sets 9 as N and Ø as O.
• " " sets 9 as N and Ø as T.
t Push [F-2] to select the "Count Up Trigger" item.
y Rotate the tuning dial to select the desired mem-
ory channel for contest numbers.
u Push [F-2] to select the "Present Number" item.
i Push [(F-3)001CLR] for 2 sec. to clear the contact
number.
o Push [EXIT] to exit keyer set mode.
5
(F-5)
–1].
