2

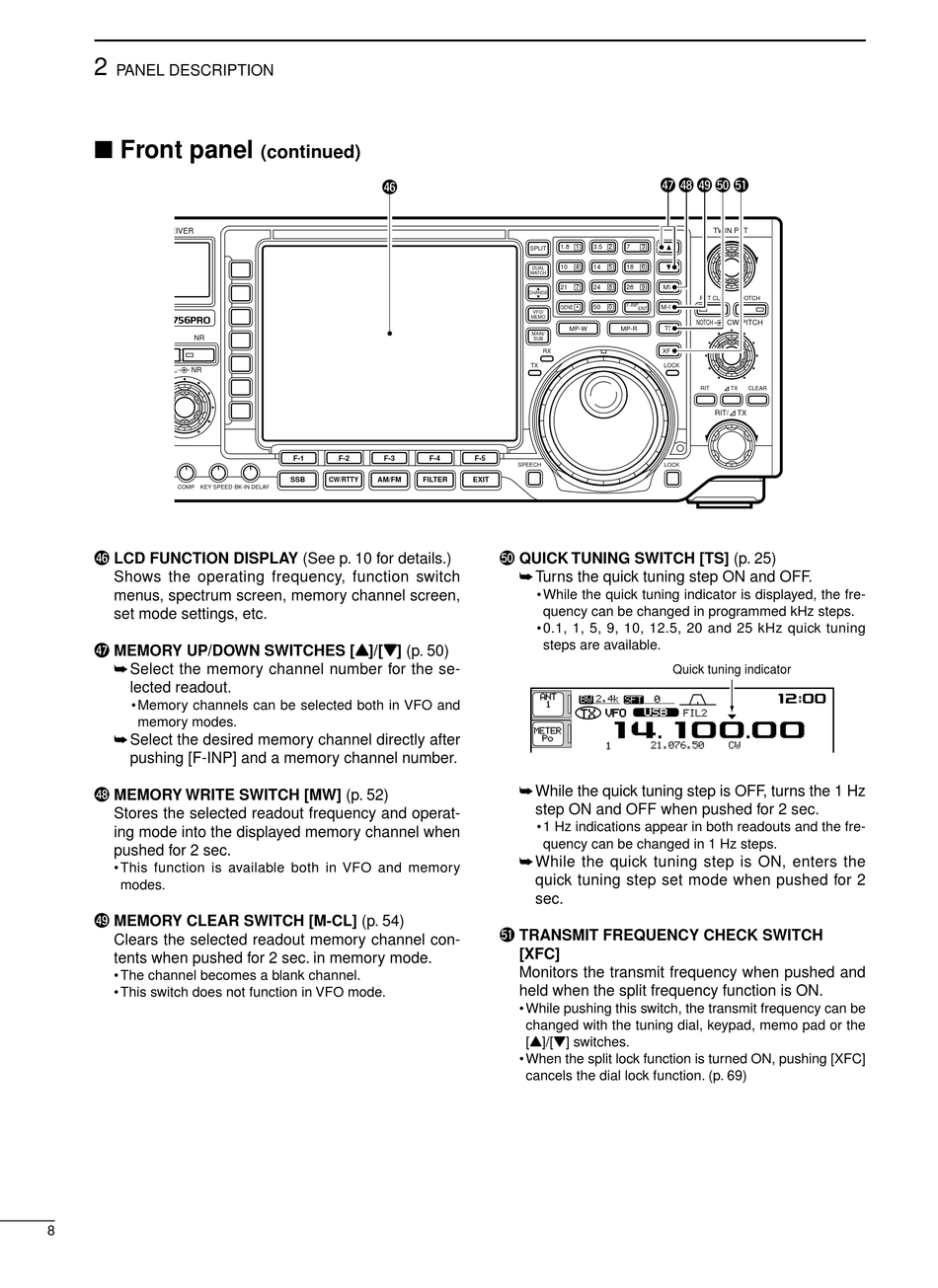

PANEL DESCRIPTION
Front panel
EIVER
i756PRO
NB NR
BAL NR
COMP KEY SPEED BK-IN DELAY
$6 LCD FUNCTION DISPLAY (See p. 10 for details.)
Shows the operating frequency, function switch
menus, spectrum screen, memory channel screen,
set mode settings, etc.
$7 MEMORY UP/DOWN SWITCHES [Y Y ]/[Z Z ] (p. 50)
Select the memory channel number for the se-
lected readout.
• Memory channels can be selected both in VFO and
memory modes.
Select the desired memory channel directly after
pushing [F-INP] and a memory channel number.
$8 MEMORY WRITE SWITCH [MW] (p. 52)
Stores the selected readout frequency and operat-
ing mode into the displayed memory channel when
pushed for 2 sec.
• This function is available both in VFO and memory
modes.
$9 MEMORY CLEAR SWITCH [M-CL] (p. 54)
Clears the selected readout memory channel con-
tents when pushed for 2 sec. in memory mode.
• The channel becomes a blank channel.
• This switch does not function in VFO mode.
8
(continued)
$ 6
F-1 F-2 F-3 F-4
SSB CW/RTTY AM/FM FILTER
1.8 1 3.5 2 7 3
SPLIT
10 4 14 5 18 6
DUAL
WATCH
21 7 24 8 28 9
CHANGE
F-INP
GENE • 50 0
ENT
VFO/
MEMO
MP-W MP-R
MAIN/
SUB
RX
TX
F-5
SPEECH
EXIT
%0 QUICK TUNING SWITCH [TS] (p. 25)
Turns the quick tuning step ON and OFF.
• While the quick tuning indicator is displayed, the fre-
quency can be changed in programmed kHz steps.
• 0.1, 1, 5, 9, 10, 12.5, 20 and 25 kHz quick tuning
steps are available.
qr≥qpp≥pp
While the quick tuning step is OFF, turns the 1 Hz
step ON and OFF when pushed for 2 sec.
• 1 Hz indications appear in both readouts and the fre-
quency can be changed in 1 Hz steps.
While the quick tuning step is ON, enters the
quick tuning step set mode when pushed for 2
sec.
%1 TRANSMIT FREQUENCY CHECK SWITCH
[XFC]
Monitors the transmit frequency when pushed and
held when the split frequency function is ON.
• While pushing this switch, the transmit frequency can be
changed with the tuning dial, keypad, memo pad or the
[Y]/[Z] switches.
• When the split lock function is turned ON, pushing [XFC]
cancels the dial lock function. (p. 69)
$ 7 $ 8 $ 9 % 0 % 1
TWIN PBT
Y
Z
MW
PBT CLR NOTCH
M-CL
NOTCH CW PITCH
TS
XFC
LOCK
RIT TX CLEAR
RIT/ TX
LOCK
Quick tuning indicator
qw pp
