Figure 1-1
shows the default jumper settings and boot mode switch used
in installation. Confirm that your board is in the default configuration
before using the board.

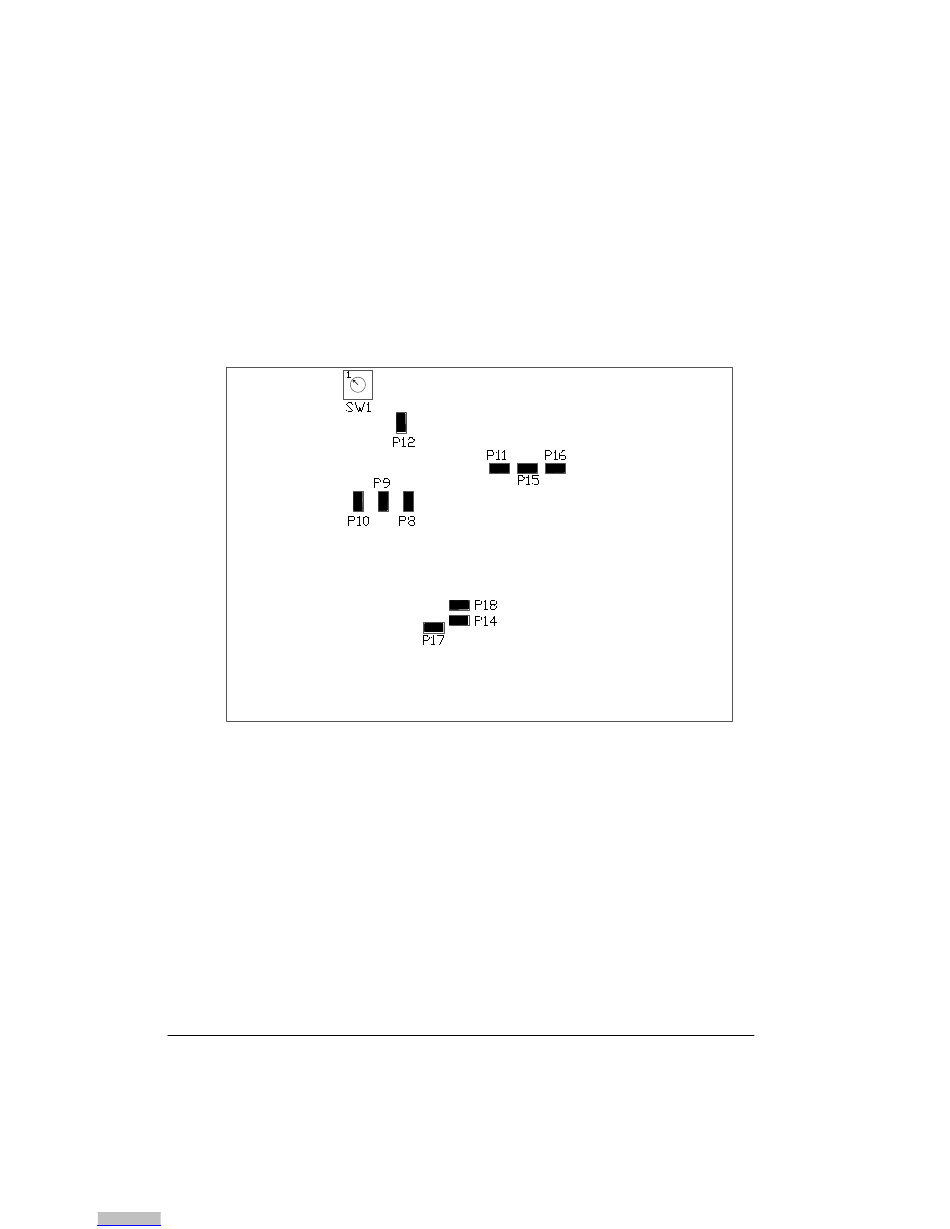

Figure 1-1. Default EZ-KIT Lite Hardware Setup
ADSP-BF707 EZ-KIT Lite Evaluation System Manual
