BackupStore 5000
Routine Maintenance
Parameter
Status
Capacity
Type
Enclosure ID
Exception Handling



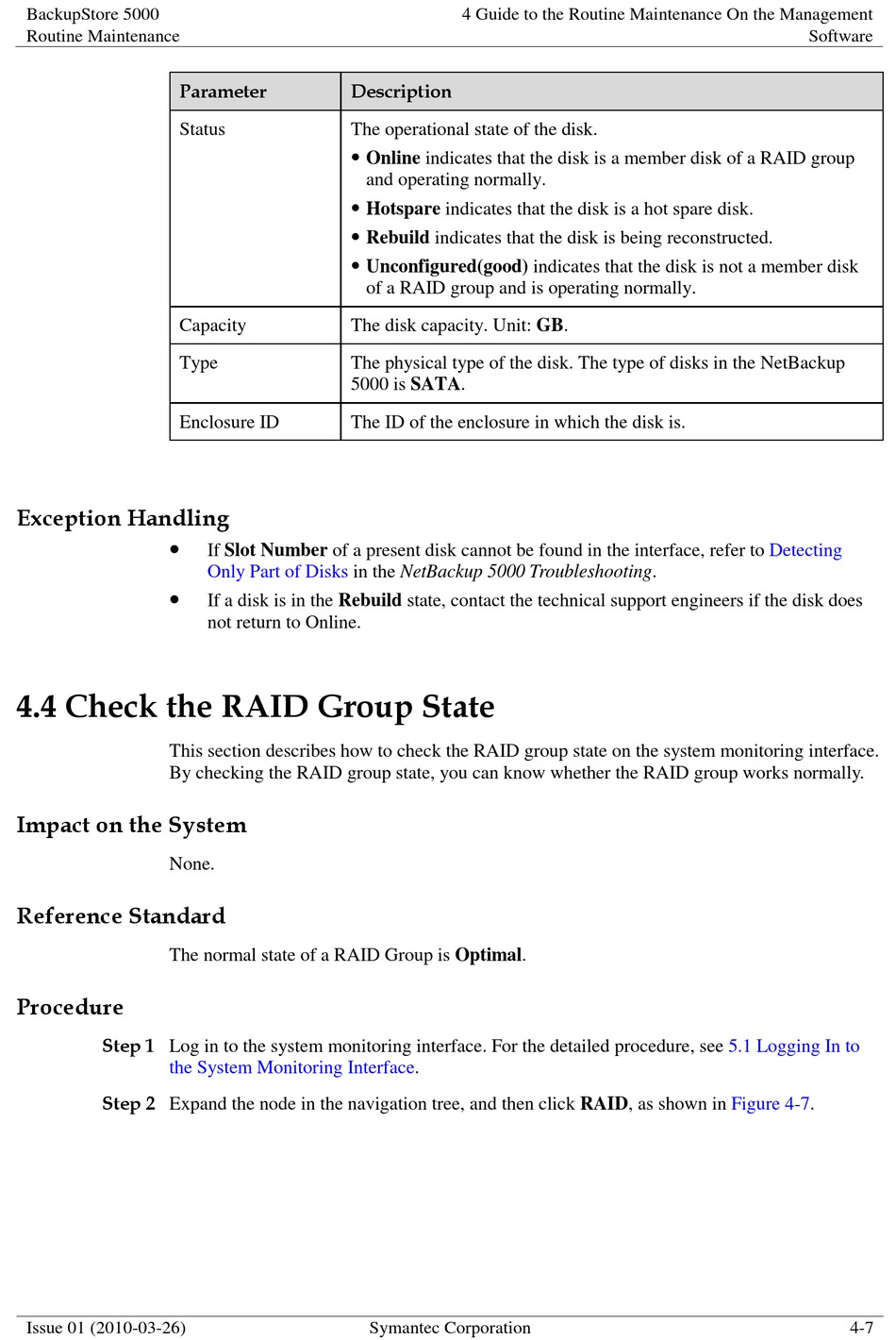

4.4 Check the RAID Group State

This section describes how to check the RAID group state on the system monitoring interface.
By checking the RAID group state, you can know whether the RAID group works normally.
Impact on the System
None.
Reference Standard
The normal state of a RAID Group is Optimal.
Procedure
Step 1 Log in to the system monitoring interface. For the detailed procedure, see
the System Monitoring
Step 2 Expand the node in the navigation tree, and then click RAID, as shown in
Issue 01 (2010-03-26)
Description
The operational state of the disk.

Online indicates that the disk is a member disk of a RAID group
and operating normally.
 Hotspare indicates that the disk is a hot spare disk.

Rebuild indicates that the disk is being reconstructed.
 Unconfigured(good) indicates that the disk is not a member disk
of a RAID group and is operating normally.
The disk capacity. Unit: GB.
The physical type of the disk. The type of disks in the NetBackup
5000 is SATA.
The ID of the enclosure in which the disk is.
If Slot Number of a present disk cannot be found in the interface, refer to
Only Part of Disks in the NetBackup 5000 Troubleshooting.
If a disk is in the Rebuild state, contact the technical support engineers if the disk does
not return to Online.
Interface.
Symantec Corporation
4 Guide to the Routine Maintenance On the Management
Software
Detecting
5.1 Logging In to
Figure 4-7.
4-7
