BackupStore 5000
Routine Maintenance

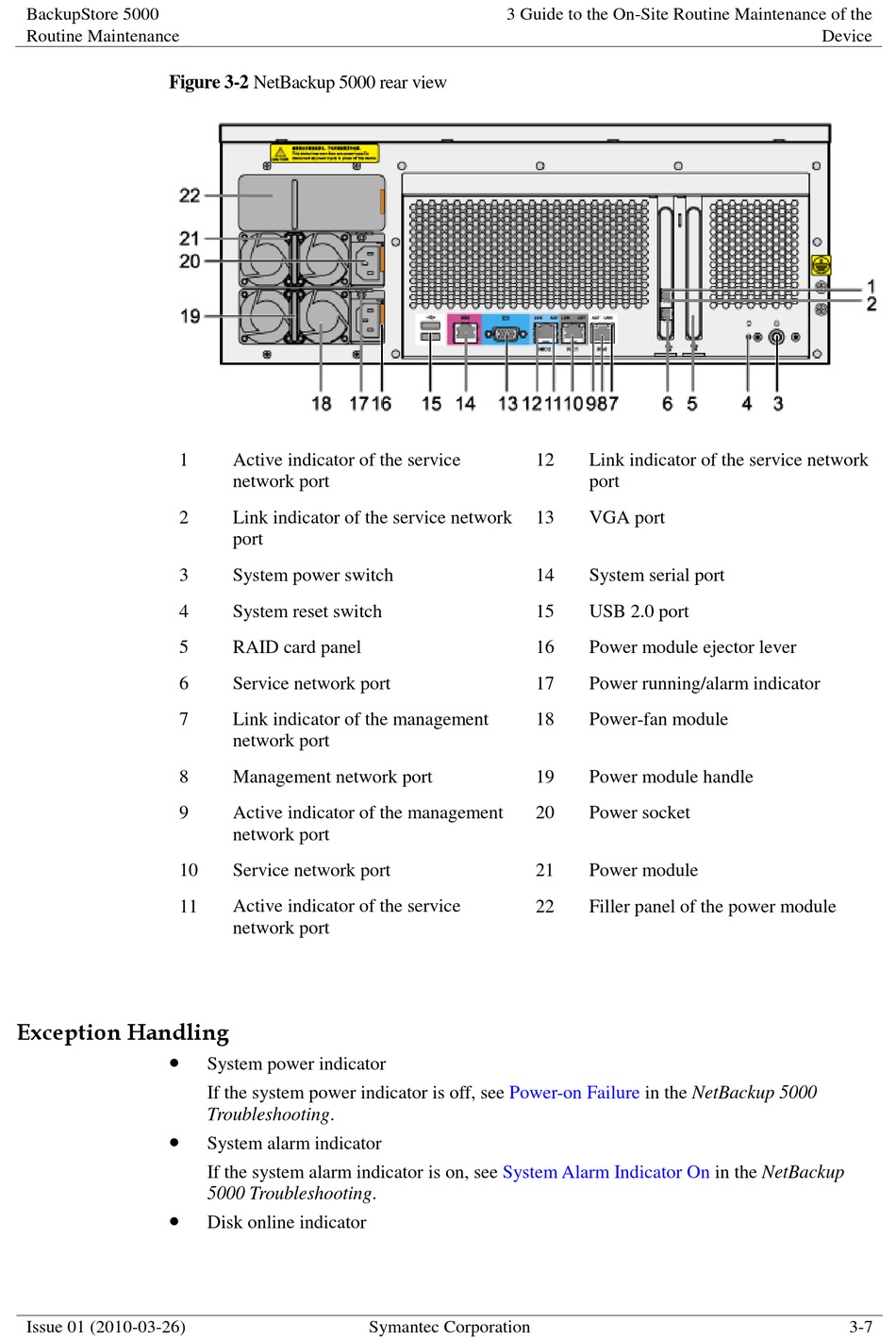

Figure 3-2 NetBackup 5000 rear view

1
2
3
4
5
6
7
8
9
10
11
Exception Handling



Issue 01 (2010-03-26)
Active indicator of the service
network port
Link indicator of the service network
port
System power switch
System reset switch
RAID card panel
Service network port
Link indicator of the management
network port
Management network port
Active indicator of the management
network port
Service network port
Active indicator of the service
network port
System power indicator
If the system power indicator is off, see
Troubleshooting.
System alarm indicator
If the system alarm indicator is on, see
5000 Troubleshooting.
Disk online indicator
Symantec Corporation
3 Guide to the On-Site Routine Maintenance of the
Link indicator of the service network
12
port
13 VGA port
14 System serial port
15 USB 2.0 port
16 Power module ejector lever
17 Power running/alarm indicator
18 Power-fan module
19 Power module handle
20 Power socket
21 Power module
22 Filler panel of the power module
Power-on Failure in the NetBackup 5000
System Alarm Indicator On
Device
in the NetBackup
3-7
