BackupStore 5000
Routine Maintenance

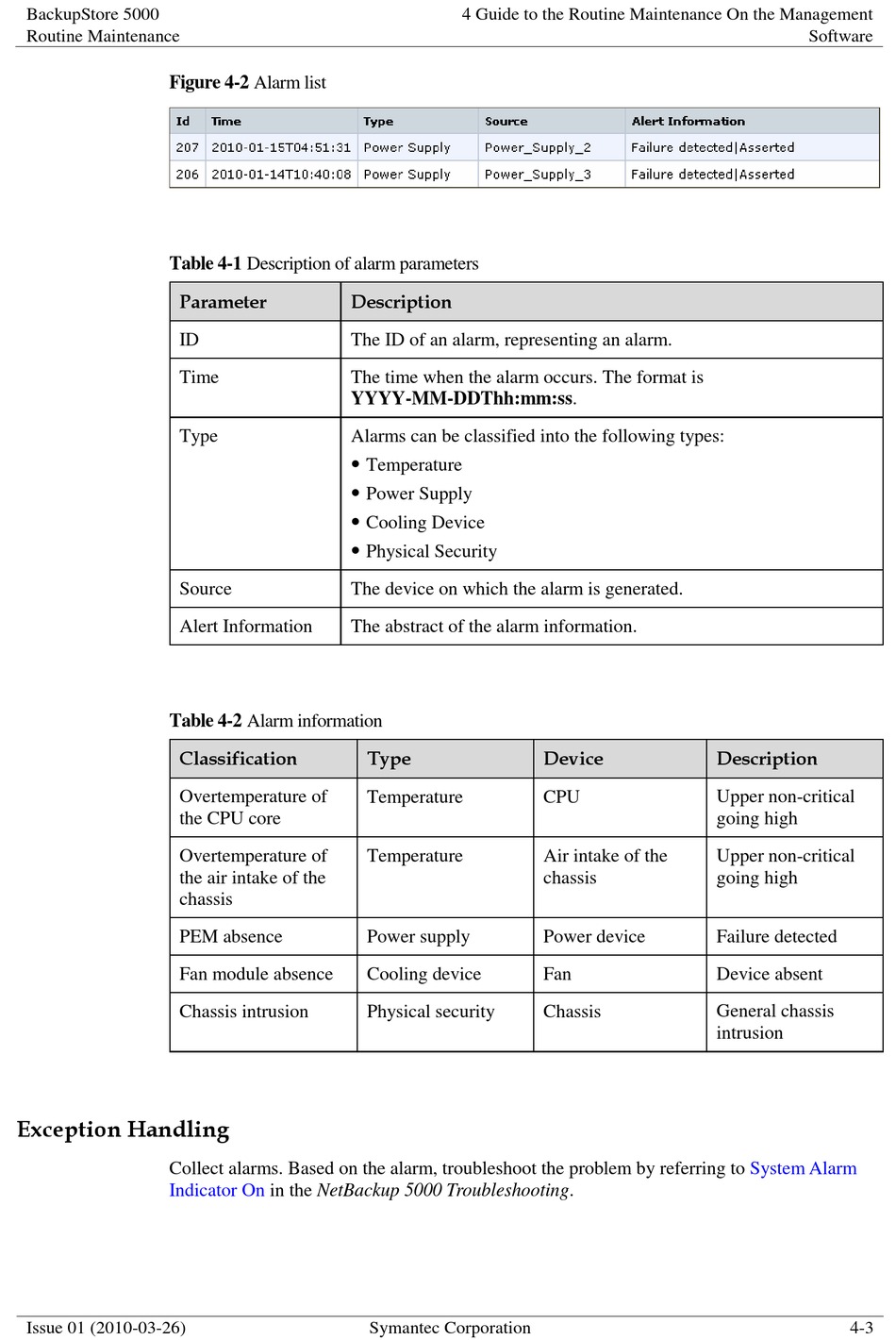

Figure 4-2 Alarm list

Table 4-1 Description of alarm parameters

Parameter
ID
Time
Type
Source
Alert Information

Table 4-2 Alarm information

Classification
Overtemperature of
the CPU core
Overtemperature of
the air intake of the
chassis
PEM absence
Fan module absence
Chassis intrusion
Exception Handling
Collect alarms. Based on the alarm, troubleshoot the problem by referring to
Indicator On
Issue 01 (2010-03-26)
Description
The ID of an alarm, representing an alarm.
The time when the alarm occurs. The format is
YYYY-MM-DDThh:mm:ss.
Alarms can be classified into the following types:
 Temperature
 Power Supply

Cooling Device
 Physical Security
The device on which the alarm is generated.
The abstract of the alarm information.
Type
Temperature
Temperature
Power supply
Cooling device
Physical security
in the NetBackup 5000 Troubleshooting.
Symantec Corporation
4 Guide to the Routine Maintenance On the Management
Device
CPU
Air intake of the
chassis
Power device
Fan
Chassis
Software
Description
Upper non-critical
going high
Upper non-critical
going high
Failure detected
Device absent
General chassis
intrusion
System Alarm
4-3
