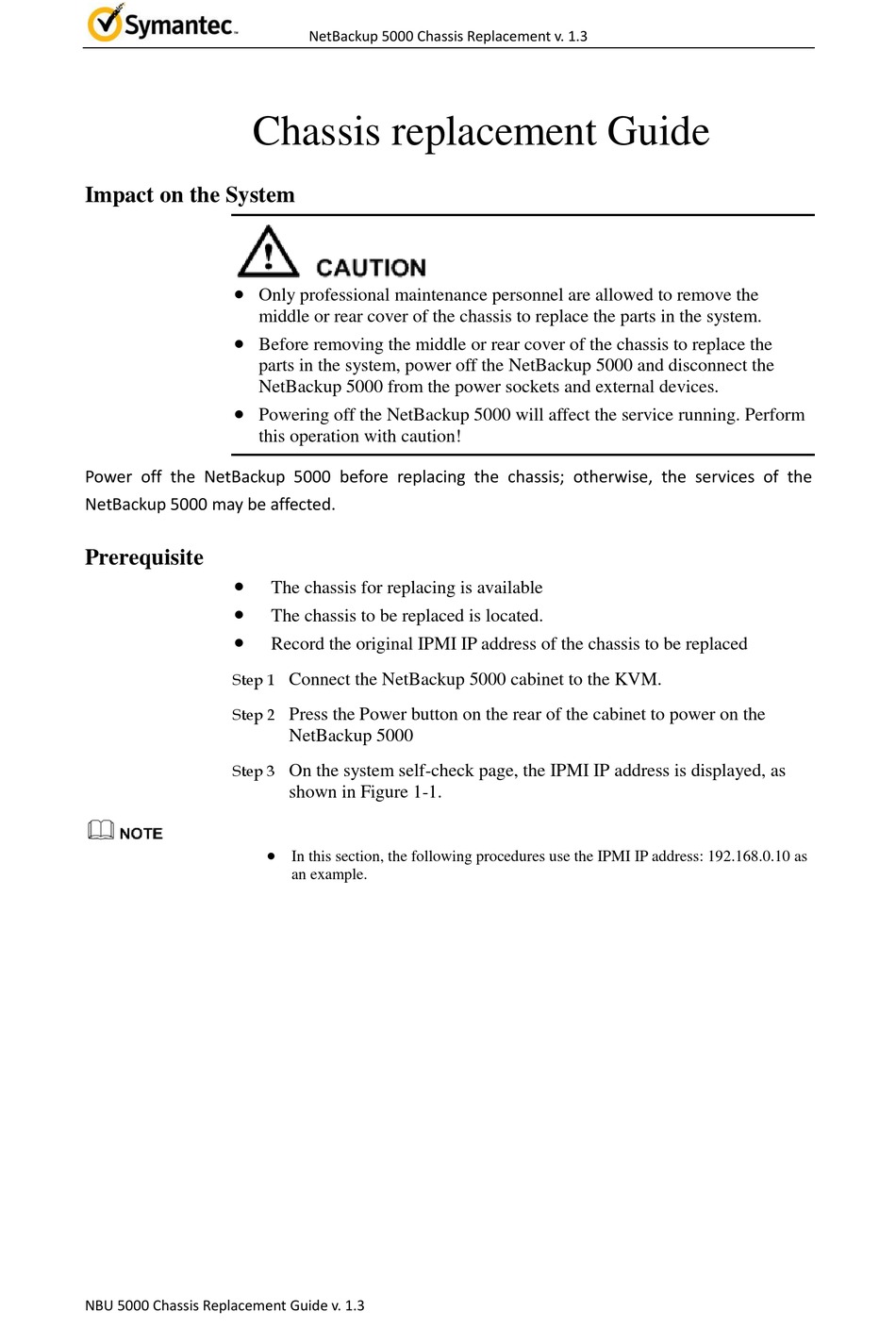

Chassis replacement Guide

Impact on the System

Power off the NetBackup 5000 before replacing the chassis; otherwise, the services of the
NetBackup 5000 may be affected.

Prerequisite

Step 1
Step 2
Step 3
NBU 5000 Chassis Replacement Guide v. 1.3
NetBackup 5000 Chassis Replacement v. 1.3
Only professional maintenance personnel are allowed to remove the
middle or rear cover of the chassis to replace the parts in the system.
Before removing the middle or rear cover of the chassis to replace the
parts in the system, power off the NetBackup 5000 and disconnect the
NetBackup 5000 from the power sockets and external devices.
Powering off the NetBackup 5000 will affect the service running. Perform
this operation with caution!
The chassis for replacing is available
The chassis to be replaced is located.
Record the original IPMI IP address of the chassis to be replaced
Connect the NetBackup 5000 cabinet to the KVM.
Press the Power button on the rear of the cabinet to power on the
NetBackup 5000
On the system self-check page, the IPMI IP address is displayed, as
shown in Figure 1-1.
In this section, the following procedures use the IPMI IP address: 192.168.0.10 as
an example.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetBackup 5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Symantec NetBackup 5000

Summary of Contents for Symantec NetBackup 5000

  • Page 1 NetBackup 5000 from the power sockets and external devices.  Powering off the NetBackup 5000 will affect the service running. Perform this operation with caution! Power off the NetBackup 5000 before replacing the chassis; otherwise, the services of the NetBackup 5000 may be affected. Prerequisite ...
  • Page 2 IPMITOOL software Precaution  The NetBackup 5000 is supported by two power supplies. Cut off both of the power supplies when powering off the NetBackup 5000.  Do not pry the CPU cooling fin during operation; otherwise the CPU and the cooling fin will be damaged.
  • Page 3 Step 3 Smoothly pull the NetBackup 5000 out of the cabinet, and lay the NetBackup 5000 on a grounded and ESD-free operating platform. For details, see Error! Reference source not found. in Error! Reference source not found.“Error! Reference source not...
  • Page 4 Error! Reference source not found. in Error! Reference source not found.Error! Reference source not found.. Step 20 Install the new NetBackup 5000 into the cabinet. For details, see Error! Reference source not found. in Error! Reference source not found.“Error! Reference source not found.”.
  • Page 5 NetBackup 5000 Chassis Replacement v. 1.3 Use the arrow keys to locate System and Date and Time, and then press Enter. Figure 1-3 Selecting Date and Time On the Clock and Time Zone interface, Under Time and Date, select Change …, and then press Enter.
  • Page 6 NetBackup 5000 Chassis Replacement v. 1.3 Figure 1-5 Setting the date and time In the Clock and Time Zone interface, select Accept, and then press Enter. Figure 1-6 Confirming the changes Quit the YaST control center. Type the following commands to setup IPMI time: service ipmi start ipmitool sel time set "mm/dd/yyyy hh:mm:ss"...
  • Page 7 NetBackup 5000 Chassis Replacement v. 1.3 Figure 1-7 Config network card 12. Select the network card which have been replaced, select Edit to go on. Figure 1-8 Select network card 13. Input the IP address and Subnet Mask field, select Next to finish configuration.
  • Page 8 NetBackup 5000 Chassis Replacement v. 1.3 Figure 1-9 Edit network card IP address 14. Select Quit. 15. Run the reboot command to reboot the NetBackup 5000. ----End NBU 5000 Chassis Replacement Guide v. 1.3...
