EXULUS
Spatial Light Modulators

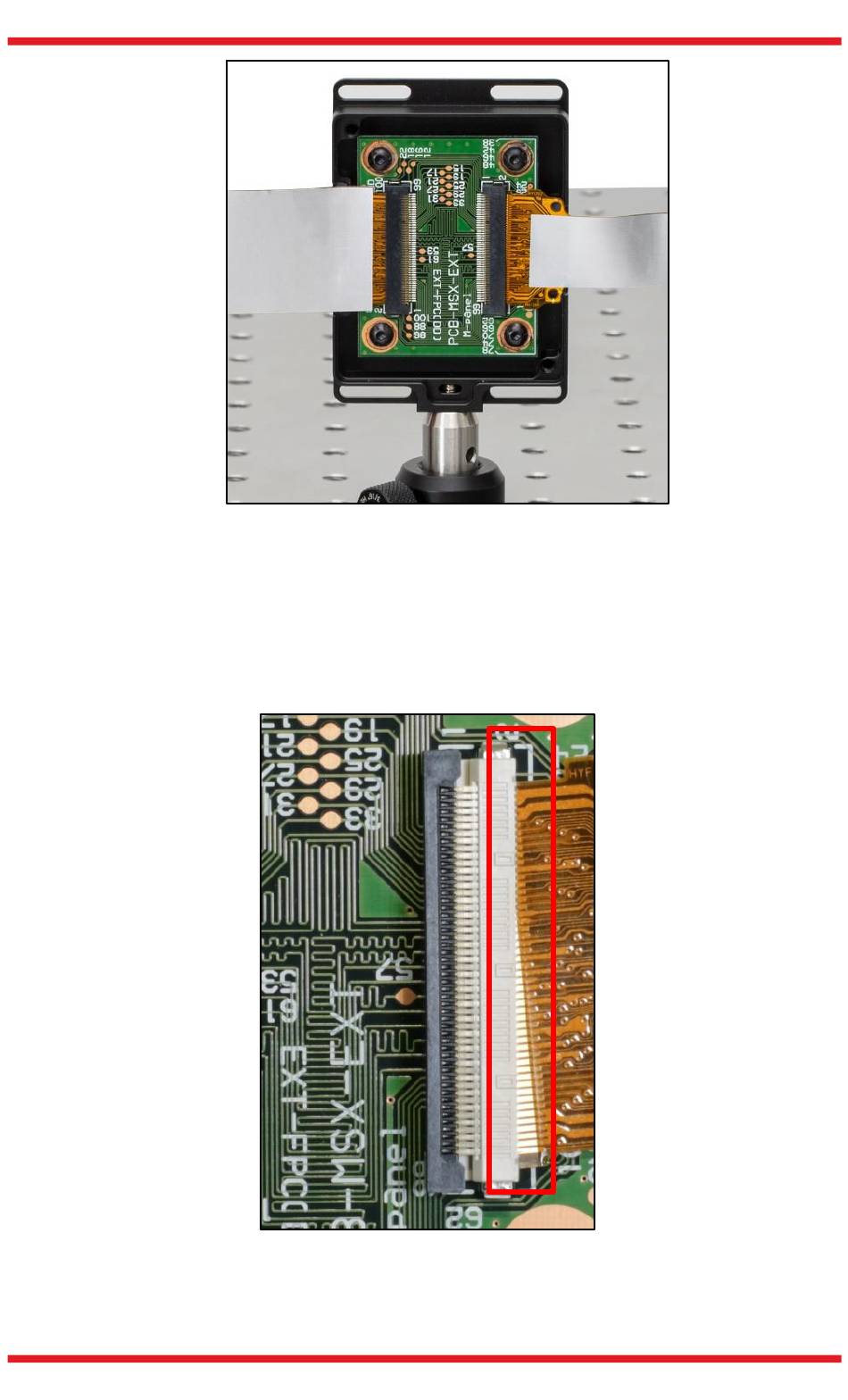

Figure 33 Aligned FPCs for Both Board and Panel Sides
Then make sure that the FPC has been inserted correctly and fully into the
two connectors (see examples in Figure 34 and Figure 35) before closing the
FPC connector lid, avoiding any tilts. Failing to do so can cause the panel to
be damaged after power on.
Figure 34 Incorrect FPC Position While Inserted to FPC Connector
Page 20
Chapter 4: Setup and Software Operation
CTN013676-D02
