Display Mode

®
The EXULUS SLM software contains four different modes for the image displayed
on the SLM panel and the Rotate Function for rotating the image preview.
•
Frame Mode
•
File Mode
•
CGH Mode
•
Pattern Mode
•
Rotate Function
Frame Mode
By default, the software initially starts with Frame Mode. A uniform gray level from
0 to 255 can be set by the user and a related gray scale pattern is created and
shown in the preview window.
File Mode
The file mode allows the user to upload a custom pattern in common image format
(PNG, JPEG, and BMP).
Page 34
Chapter 4: Setup and Software Operation

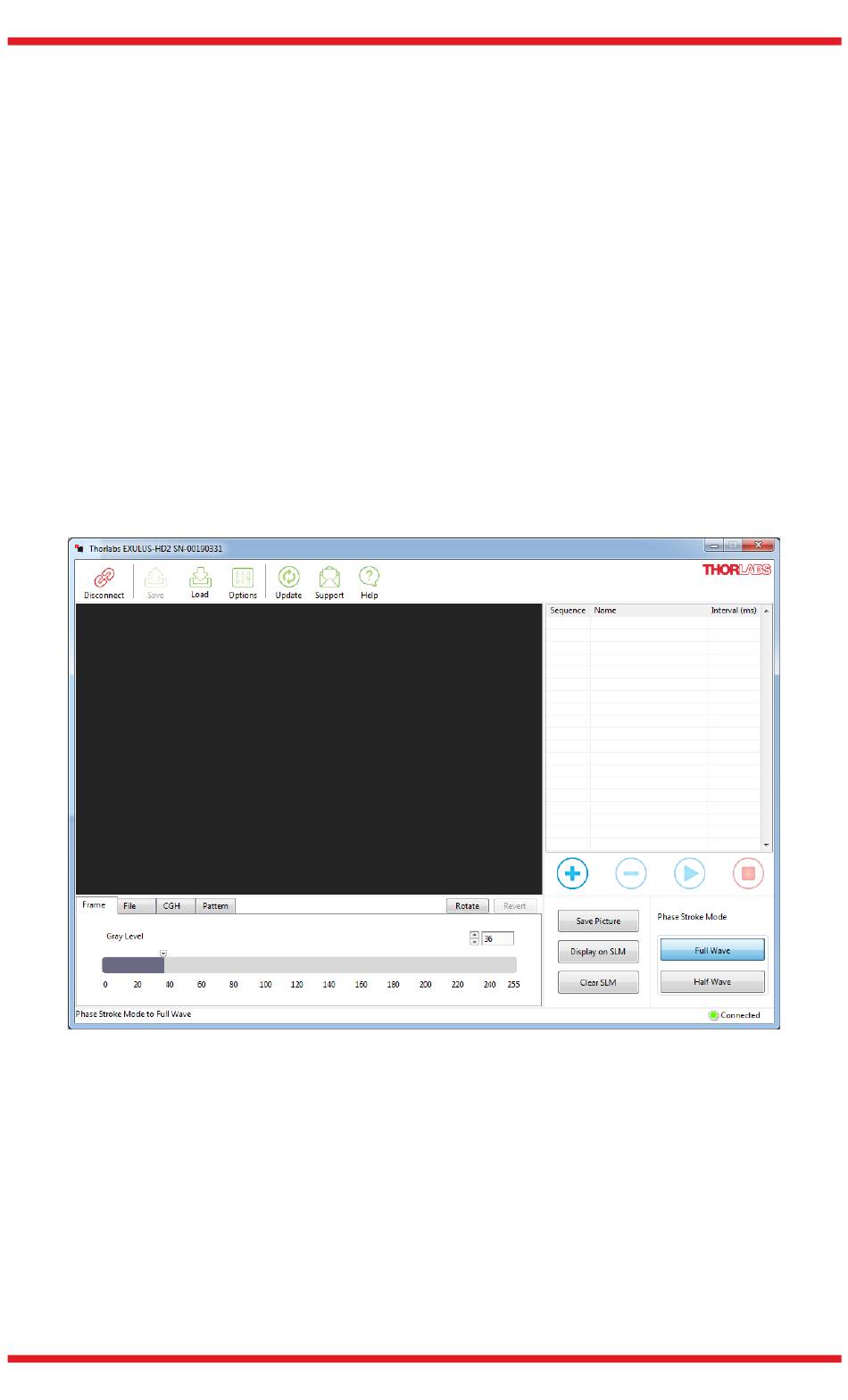

Figure 46 Frame Mode
