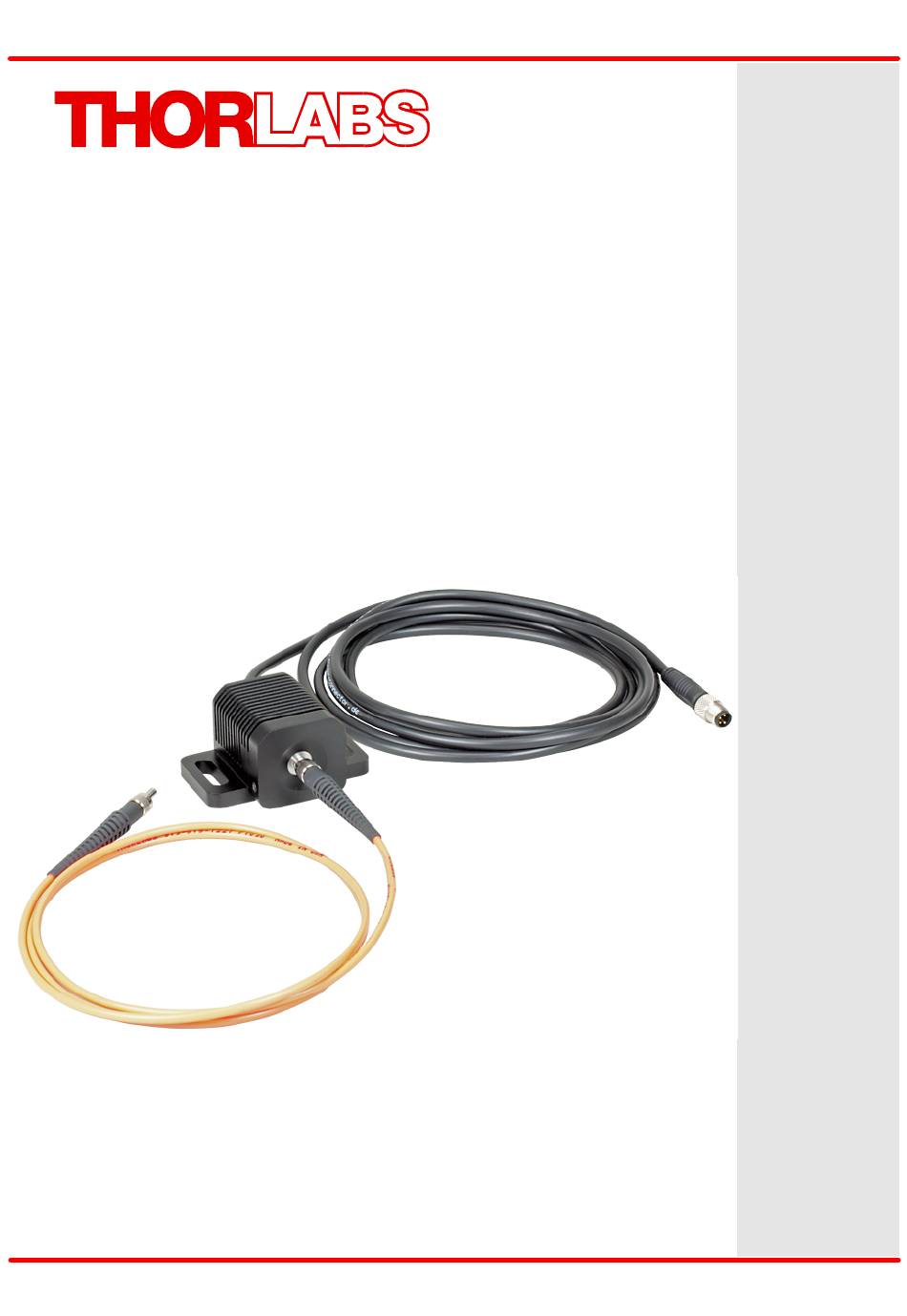

- Page 1 Fiber Coupled LED MxxxF1 Series Operation Manual 2012...
- Page 2 Version: Date: 22.05.2012 Copyright © 2012 Thorlabs...
-
Page 3: Table Of Contents
Contents Foreword 1 General Information 1.1 Safety 1.2 Ordering Codes and Accessories 1.3 Parts List 2 Operating Instruction 3 Maintenance and Service 4 Appendix 4.1 Technical Data 4.2 LED Spectra 4.3 Drawing 4.4 Thorlabs Worldwide Contacts... -
Page 4: Foreword
Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2012 Thorlabs... -
Page 5: General Information
- do not look into the connector or fiber aperture. All modules must only be operated with proper shielded connection cables. Only with written consent from Thorlabs may changes to single components be carried out or components not supplied by Thorlabs be used. -
Page 6: Operating Instruction
Pinning of the DC connector of MxxxF1 (view from pin side) Power supply We recommend to use Thorlabs DC2100 or LEDD1B LED current drivers (for control of single LED), alternatively DC4100 with DC4100-HUB (control of up to 4 individual LED simultaneously). -
Page 7: Maintenance And Service
2 Operating Instruction Operation If one of the a.m. Thorlabs LED current drivers is used, please follow the instructions in the driver’s User Manual. If using a 3 party current source, make sure - about correct connection - use only pin 1 and 2! - that the current source delivers at nominal LED current a sufficient forward voltage - that the max. -
Page 8: Appendix
9.0 mW Minimum LED Output Power 10.7 mW Typical LED Output Power Current for LED Power Test 700 mA Maximum Current CW 700 mA Forward Voltage 4.3 V Line Width (FWHM) 10 nm >10,000 h Typical Lifetime © 2012 Thorlabs... - Page 9 Minimum LED Output Power 1.6 mW 1.7 mW Typical LED Output Power 500 mA Current for LED Power Test 500 mA Maximum Current CW Forward Voltage 3.6 V Line Width (FWHM) 12 nm Typical Lifetime >10,000 h © 2012 Thorlabs...
- Page 10 Minimum LED Output Power 8.0 mW Typical LED Output Power 10.1 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 3.6 V Forward Voltage 25 nm Line Width (FWHM) >50,000 h Typical Lifetime © 2012 Thorlabs...
- Page 11 Minimum LED Output Power 7.0 mW Typical LED Output Power 8.0 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 3.3 V Forward Voltage 30 nm Line Width (FWHM) >50,000 h Typical Lifetime © 2012 Thorlabs...
- Page 12 Minimum LED Output Power 1.8 mW Typical LED Output Power 2.0 mW Current for LED Power Test 500 mA Maximum Current CW 500 mA 3.2 V Forward Voltage 80 nm Line Width (FWHM) >10,000 h Typical Lifetime © 2012 Thorlabs...
- Page 13 Minimum LED Output Power 9.0 mW Typical LED Output Power 10.8 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 2.5 V Forward Voltage 18 nm Line Width (FWHM) >50,000 h Typical Lifetime © 2012 Thorlabs...
- Page 14 Minimum LED Output Power 13.0 mW Typical LED Output Power 14.5 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 2.15 V Forward Voltage 25 nm Line Width (FWHM) >50,000 h Typical Lifetime © 2012 Thorlabs...
- Page 15 Minimum LED Output Power 1.3 mW Typical LED Output Power 1.5 mW Current for LED Power Test 500 mA Maximum Current CW 800 mA 2.0 V Forward Voltage 25 nm Line Width (FWHM) >10,000 h Typical Lifetime © 2012 Thorlabs...
- Page 16 Minimum LED Output Power 2.4 mW Typical LED Output Power 2.8 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 1.7 V Forward Voltage 50 nm Line Width (FWHM) >10,000 h Typical Lifetime © 2012 Thorlabs...
- Page 17 Minimum LED Output Power 0.2 mW Typical LED Output Power 0.2 mW Current for LED Power Test 600 mA Maximum Current CW 600 mA 1.4 V Forward Voltage 45 nm Line Width (FWHM) >10,000 h Typical Lifetime © 2012 Thorlabs...
- Page 18 3000 K Minimum LED Output Power 6.0 mW Typical LED Output Power 7.0 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA 3.5 V Forward Voltage Line Width (FWHM) >10,000 h Typical Lifetime © 2012 Thorlabs...
- Page 19 Correlated Color Temperature 6.0 mW Minimum LED Output Power Typical LED Output Power 7.0 mW Current for LED Power Test 1000 mA Maximum Current CW 1000 mA Forward Voltage 3.6 V Line Width (FWHM) >50,000 h Typical Lifetime © 2012 Thorlabs...
-
Page 20: Led Spectra
MxxxF1 Series LED Spectra © 2012 Thorlabs... - Page 21 4 Appendix © 2012 Thorlabs...
- Page 22 MxxxF1 Series © 2012 Thorlabs...
- Page 23 4 Appendix © 2012 Thorlabs...
-
Page 24: Drawing
MxxxF1 Series Drawing © 2012 Thorlabs... -
Page 25: Thorlabs Worldwide Contacts
4 Appendix Thorlabs Worldwide Contacts USA, Canada, and South America Thorlabs, Inc. 56 Sparta Avenue Newton, NJ 07860 Tel: 973-579-7227 Fax: 973-300-3600 www.thorlabs.com www.thorlabs.us (West Coast) Email: sales@thorlabs.com Support: techsupport@thorlabs.com Europe UK and Ireland Thorlabs GmbH Thorlabs Ltd. Hans-Böckler-Str. 6... - Page 26 Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
- Page 27 For warranty repairs or service the unit must be sent back to Thorlabs. The customer will carry the shipping costs to Thorlabs, in case of warranty repairs Thorlabs will carry the shipping costs back to the customer.
- Page 28 User Manual. Should you require further information on this product, or encounter specific problems that are not discussed in sufficient detail in the User Manual, please contact your local Thorlabs dealer or system installer.
