3.4.5.
Holes for 30 mm Cage System (Standard SLMs)
These 4-40 mounting holes provide compatibility with the Thorlabs 30 mm cage
system.
3.4.6.
Post Mounting Holes
The mounting holes shown below in Figure 21 and Figure 22 are designed for
Thorlabs' optical posts. Note that these are universal tapped holes which accept
both 8-32 and M4 threaded screws. Therefore, either imperial or metric posts are
compatible (e.g.: Item # TR2 or TR50/M).

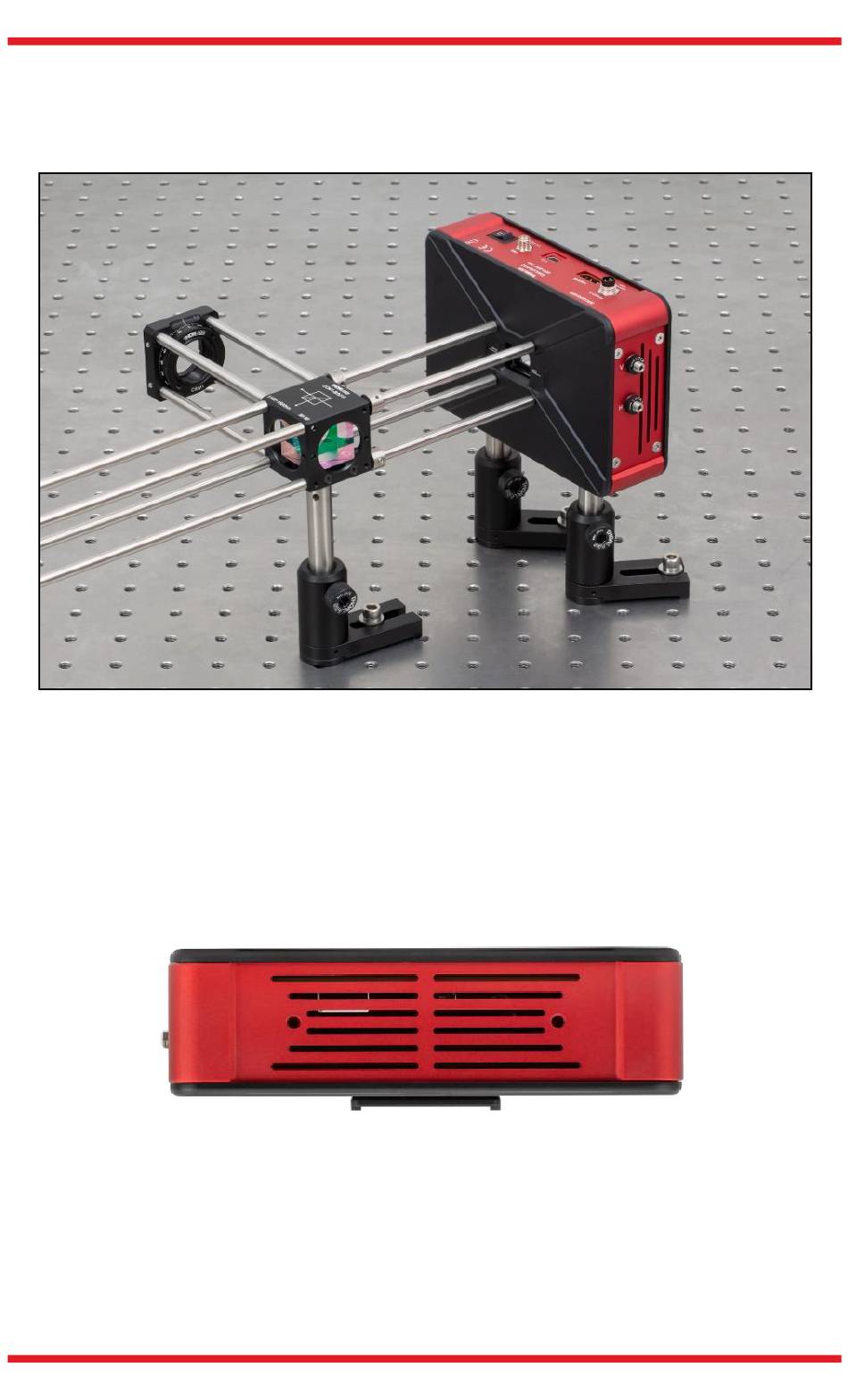

Figure 21 Two Mounting Holes on Bottom, Standard SLMs
Page 12
Figure 20 SLM with Attached 30 mm Cage System
Chapter 3: Introduction
CTN013676-D02
