EXULUS
Spatial Light Modulators
Board Side

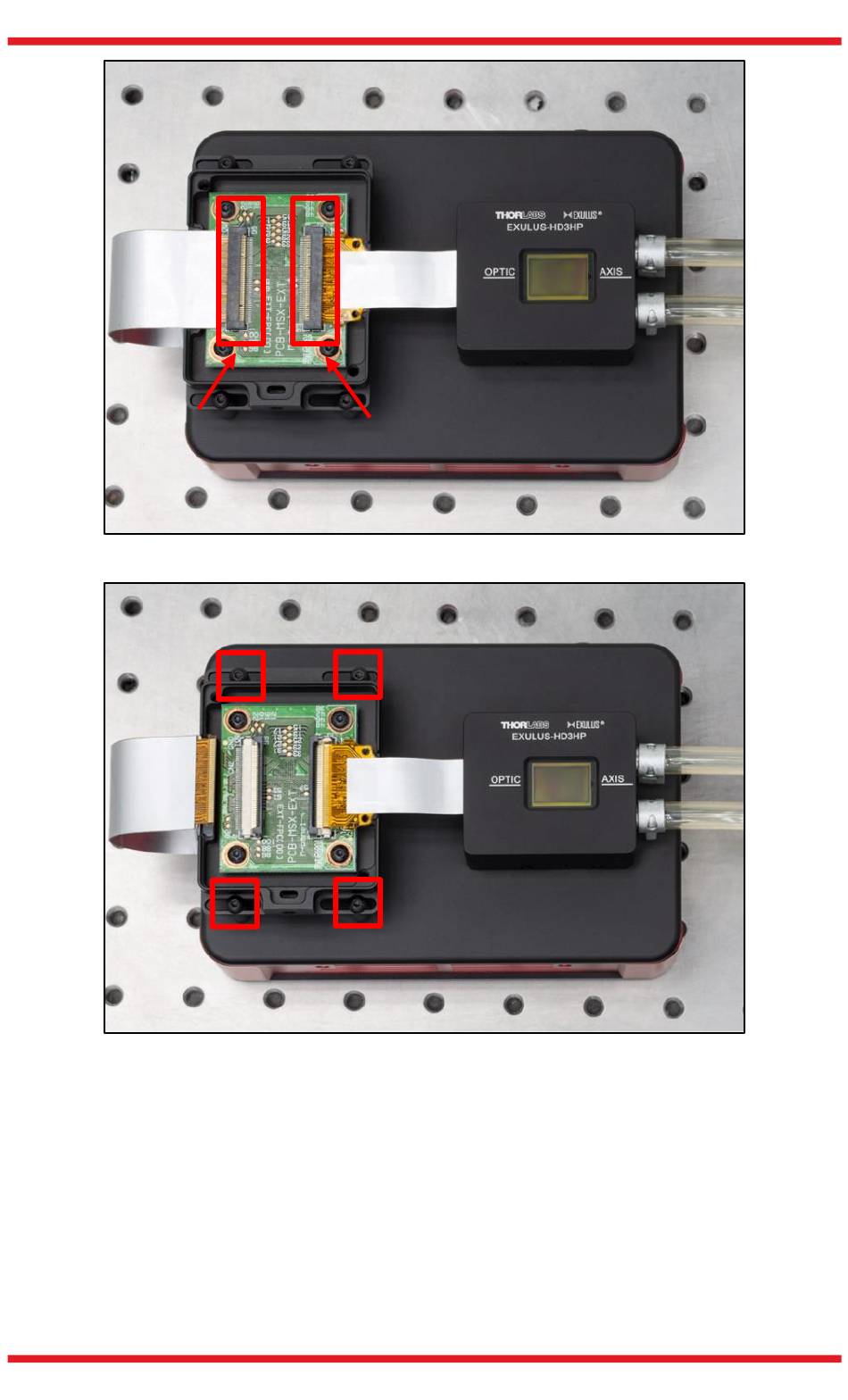

Figure 30 FPCs Disconnected with Adapter Board Connectors
•
Step 3: Disassembly of Adapter Board and Panel Mount
Remove the four screws of the adapter board (see Figure 30) and loosen the
four screws of SLM head (see Figure 31) using a 2 mm balldriver to remove
each part from the main unit, see Figure 32.
Page 18
Panel Side
Figure 29 FPC Connection of Adapter Board
Chapter 4: Setup and Software Operation
CTN013676-D02
