EXULUS Spatial Light Modulators
Help
Opens the SLM manual.
Thorlabs Logo
Opens the Thorlabs homepage.
4.5.2.

Preview Window

The Preview Window provides a preview of the image to be displayed on the SLM.
4.5.3.

Operation Mode

The operation mode provides Phase Stroke Mode selection of both Full Wave and
Half Wave, as well as the control setting of the preview image.
Save Picture
Allows the user to save the current preview pattern as a PNG image format with
resolution of 1920 x 1200.
Display on SLM
Uploads the current preview pattern to the SLM.
Clear SLM
Clear the displayed pattern on the SLM panel and reset the SLM with a black
background.
Phase Stroke Mode
The Full Wave mode provides a total phase stroke of 2π, while the Half Wave
mode offers a total phase stroke of 1π (at 633 nm for EXULUS-HD2 and EXULUS-
HD2HP; at 1064 nm for EXULUS-HD3 and EXULUS-HD3HP; at 1550 nm for
EXULUS-HD4).
Rev F, December 7, 2020

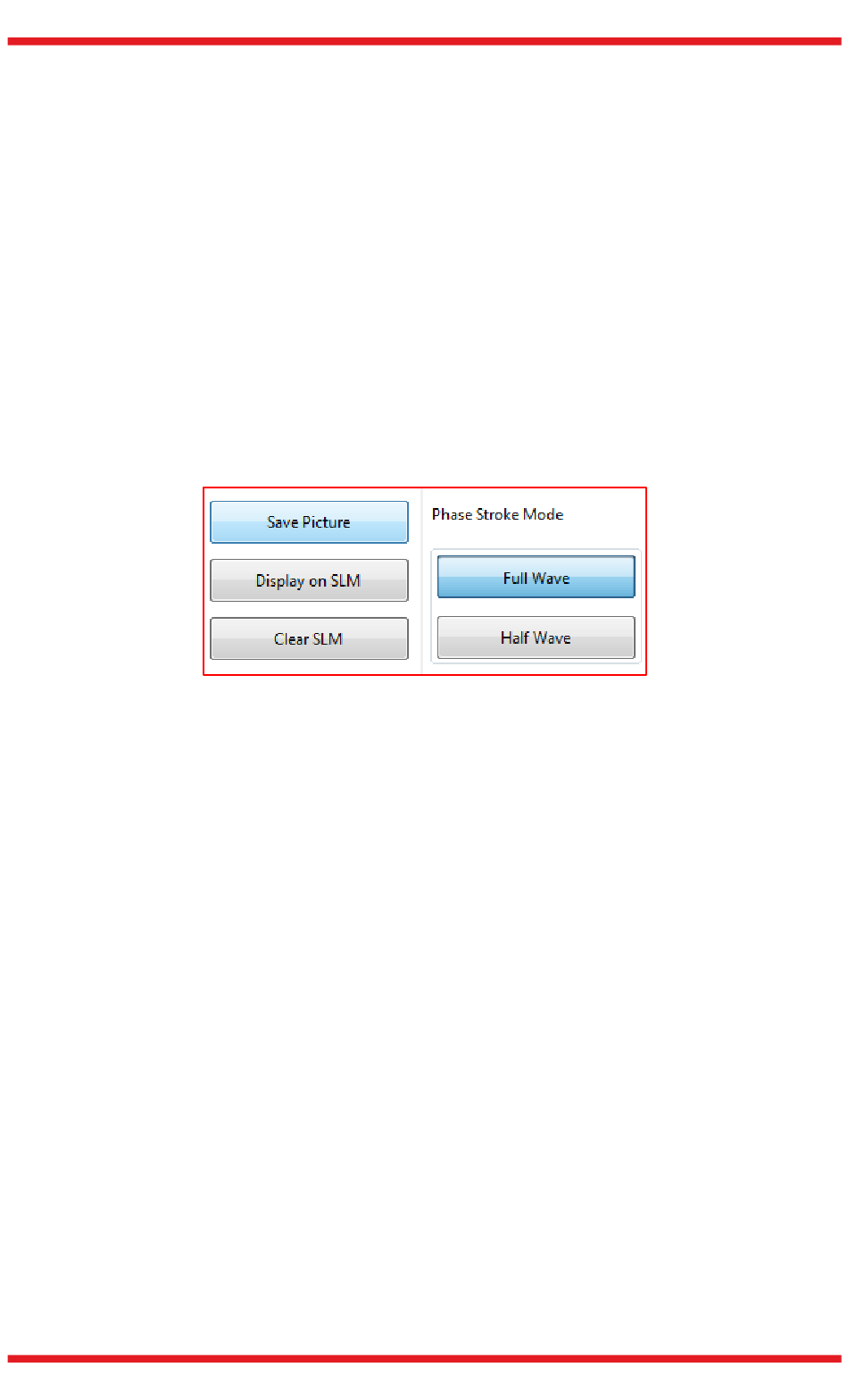

Figure 45 Operation Mode Area
Chapter 4: Setup and Software Operation
Page 33
