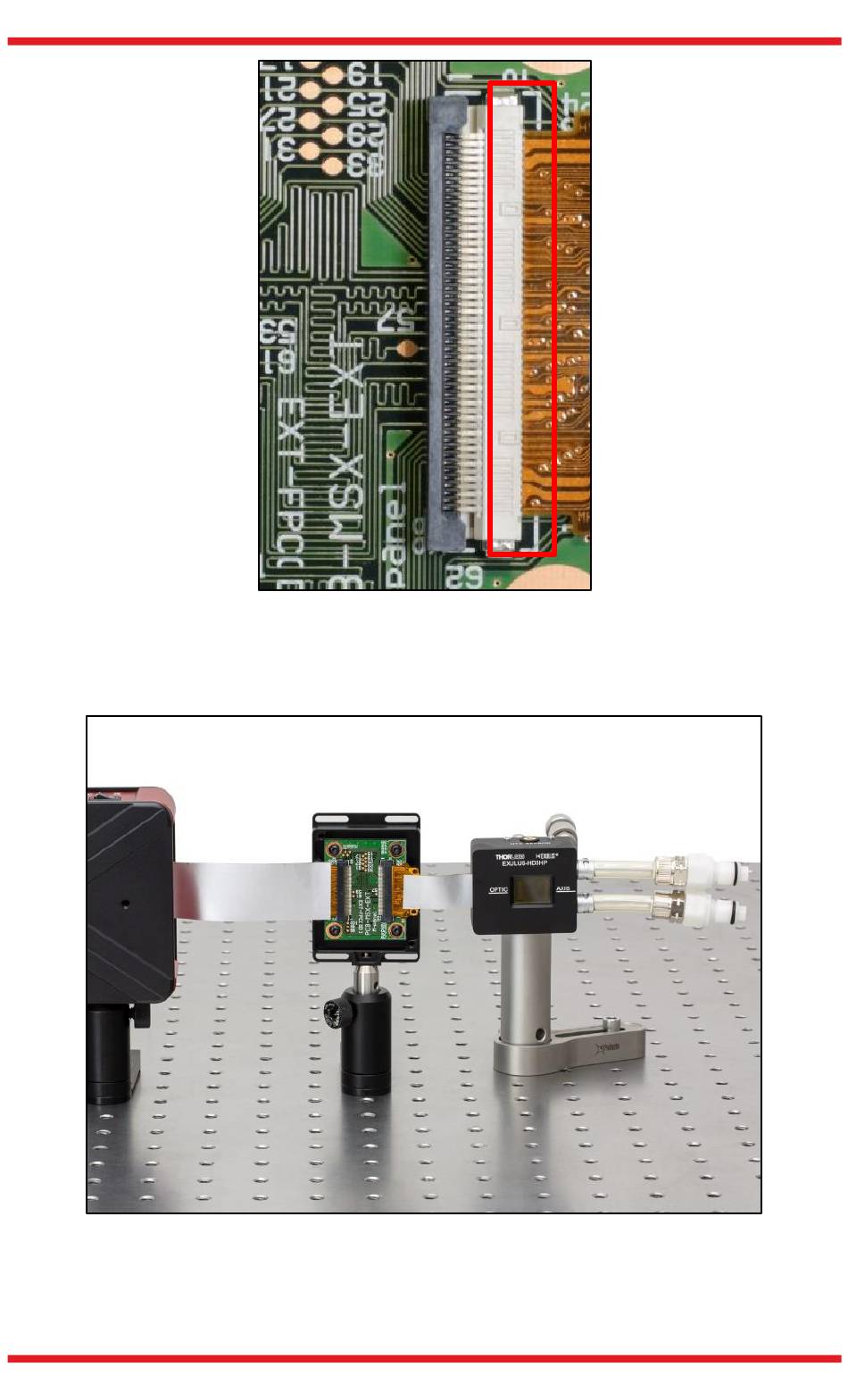

Figure 35 Correct FPC Position While Inserted to FPC Connector
Close the connector lid to secure the FPC connection between the main body
and panel head.
Figure 36 Well-Connected FPC Between Main Body and Panel
Install the adapter board lid by locking the two screws to finish the reassembly.
Rev F, December 7, 2020
