EXULUS Spatial Light Modulators Chapter 4: Setup and Software Operation

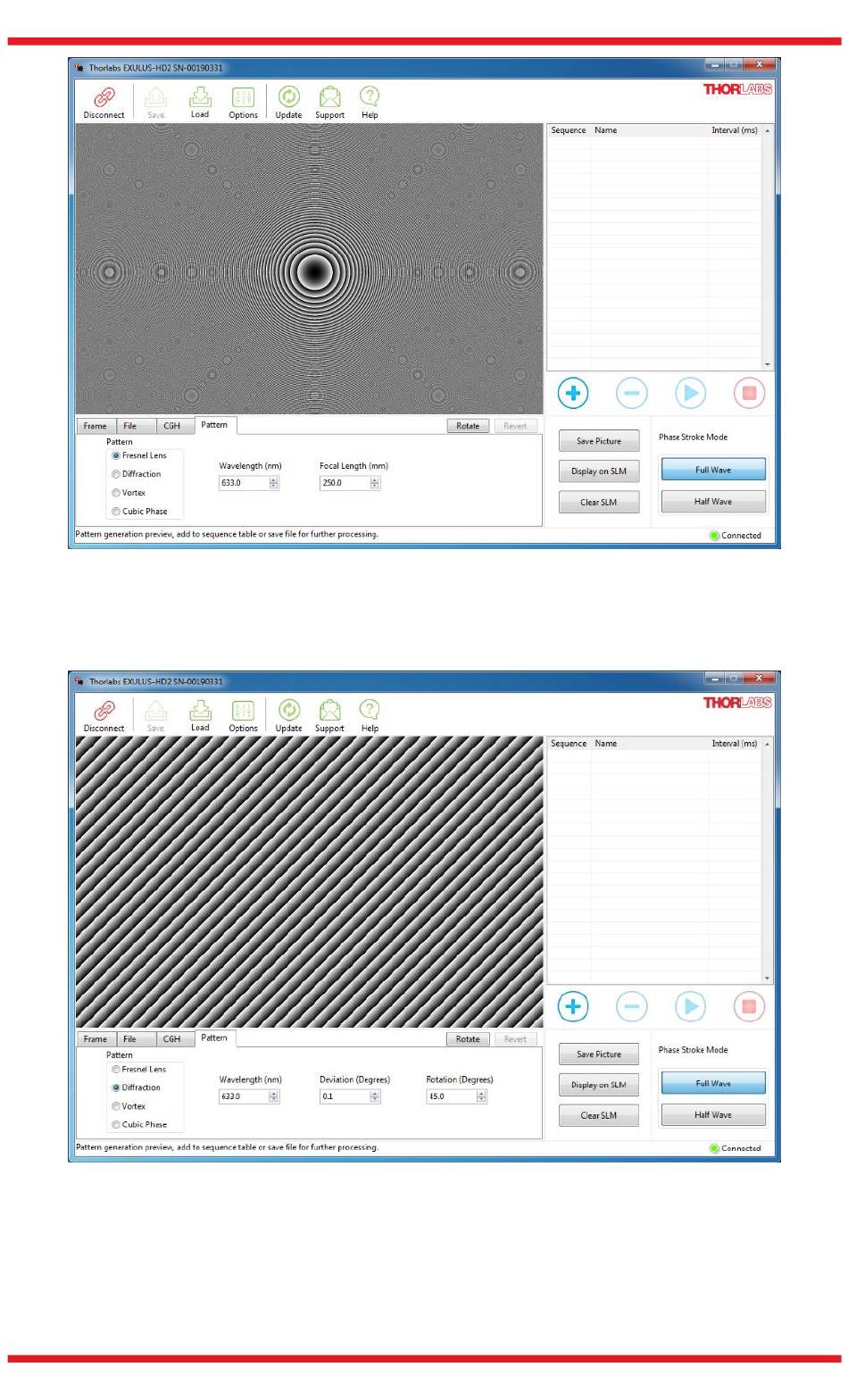

Figure 50 Generation of Fresnel Lens Pattern
The Diffraction mode contains three parameters: wavelength, diffraction angle,
and rotation angle. It is used to tilt/steer the incoming beam to a specific angle.
Figure 51 Generation of Diffraction Pattern
The Vortex mode contains two parameters: wavelength and pattern order m. This
pattern creates a helical output beam and contains a characteristic donut beam
profile.
