CAPA322 3.5" Board

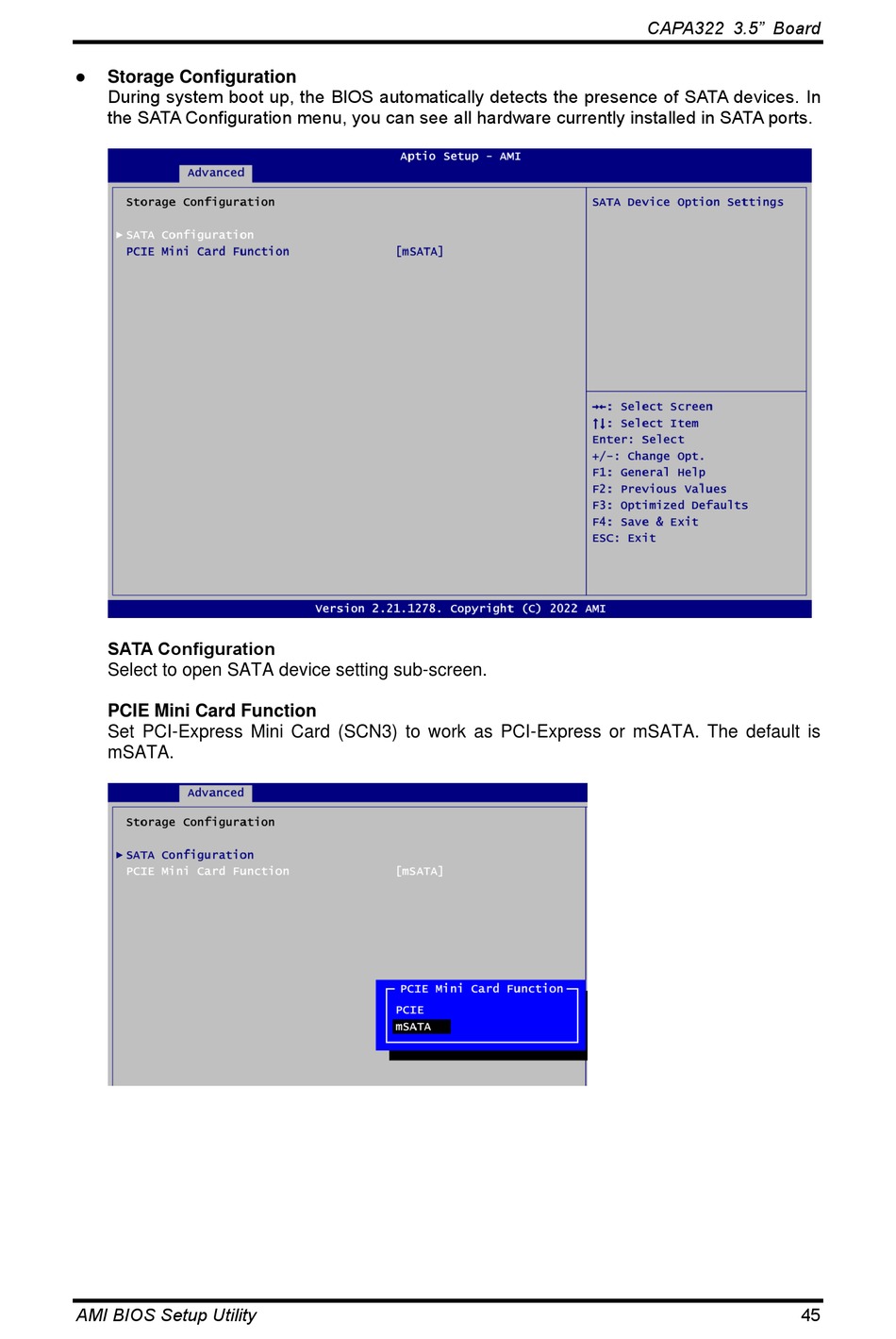

⚫ Storage Configuration
During system boot up, the BIOS automatically detects the presence of SATA devices. In
the SATA Configuration menu, you can see all hardware currently installed in SATA ports.
SATA Configuration
Select to open SATA device setting sub-screen.
PCIE Mini Card Function
Set PCI-Express Mini Card (SCN3) to work as PCI-Express or mSATA. The default is
mSATA.
AMI BIOS Setup Utility 45
