CAPA322 3.5" Board
2.4.9

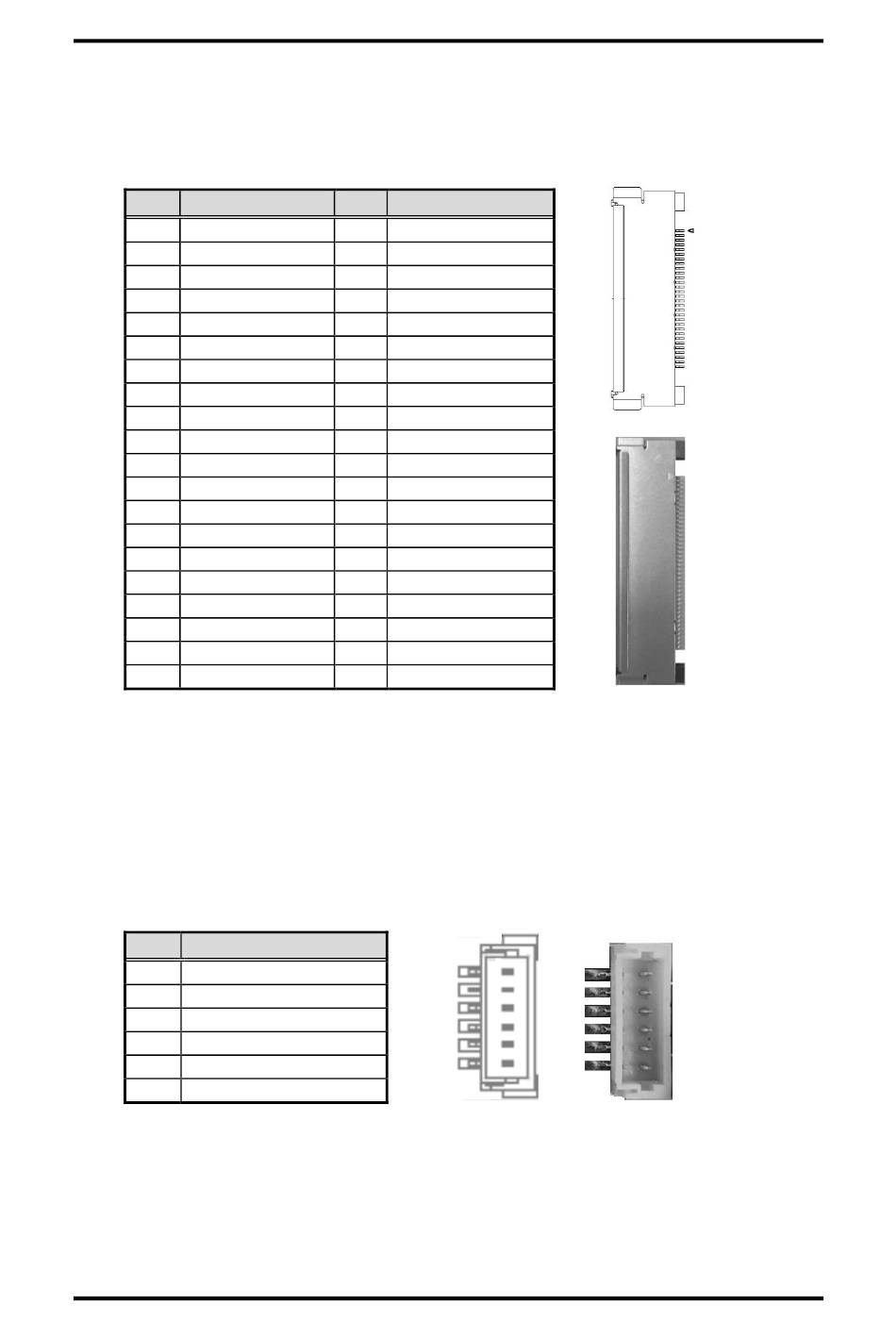

eDP Connector (CN9) (Optional)

The eDP interface is available through 40-pin connector (CN9), which is compliant with
IPEX-20143. Pin 1~4 LCD_VCC can be set to +3.3V, +5V or +12V with JP1 (see section
2.3.1).
Pin Signal
1 LCD_VCC
2 LCD_VCC
3 LCD_VCC
4 LCD_VCC
5 NC
6 LCD_GND
7 LCD_GND
8 LCD_GND
9 LCD_GND
10 HPD
11 High Speed_GND
12 TXN3
13 TXP3
14 High Speed_GND
15 TXN2
16 TXP2
17 High Speed_GND
18 TXN1
19 TXP1
20 High Speed_GND
2.4.10

SIM Card Wafer Connector (CN10)

The CN10 is a 6-pin (pitch=1.0mm) wafer connector fully compliant with JST
B6B-PH-K-S. AX93A19 SIM I/O board is suggested to use for CN10 to have SIM card
slot.
In order to work properly, the SIM card must be used together with 3G/4G/LTE/5G
module in either PCI Express Mini card (SCN3) or M.2 Key B connector (SCN4).
Pin Signal
1 PWR
2 RST
3 CLK
4 I/O
5 VPP
6 GND
14
Pin Signal
21 TXN0
22 TXP0
23 High Speed_GND
24 AUXP
25 AUXN
26 High Speed_GND
27 BKLT_GND
28 BKLT_GND
29 BKLT_GND
30 BKLT_GND
31 NC
32 BKLT_CTRL
33 BKLT_EN
34 NC
35 NC
36 BKLT_VCC_12V
37 BKLT_VCC_12V
38 BKLT_VCC_12V
39 BKLT_VCC_12V
40 NC
6
1
1
40
Board and Pin Assignment
