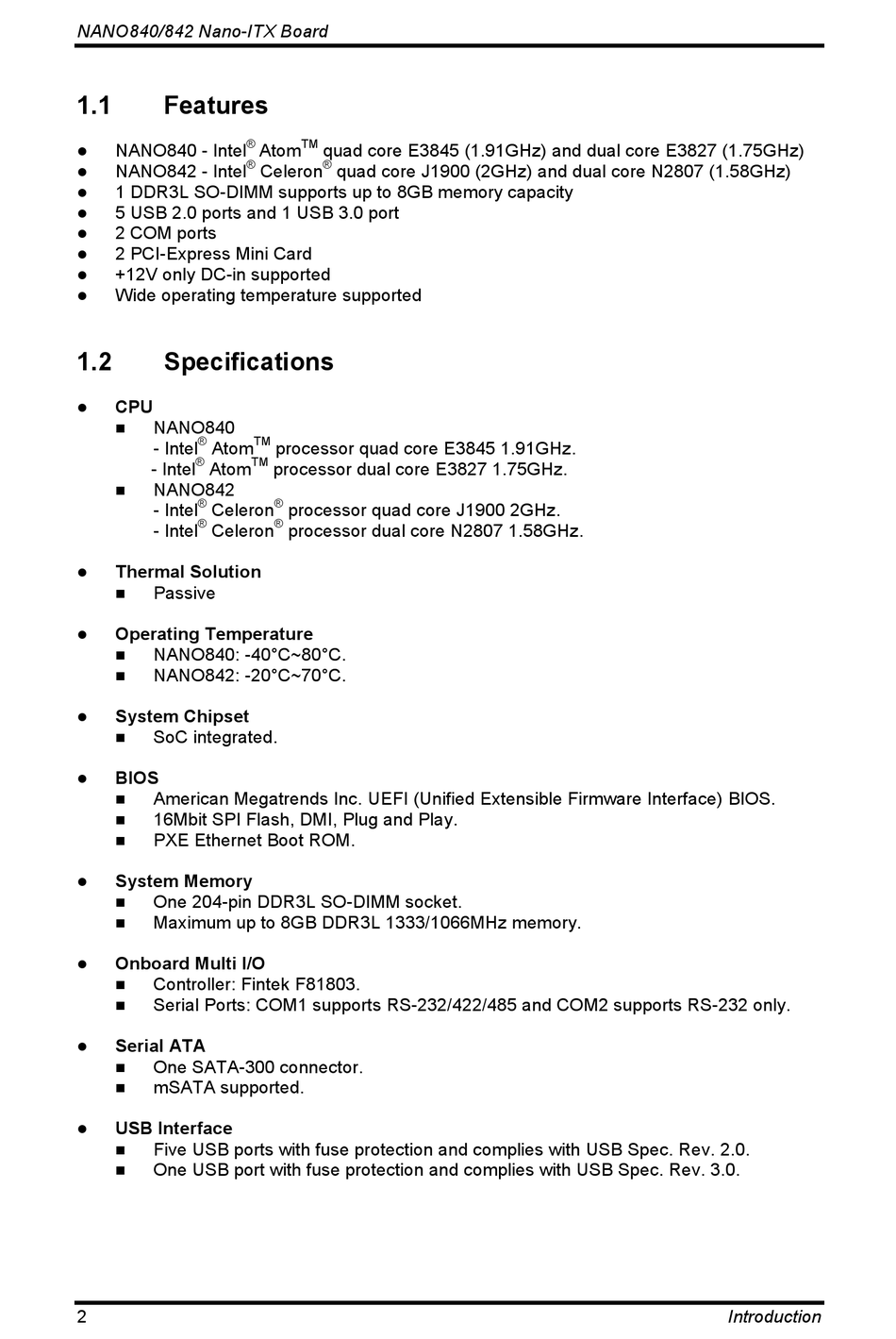

Features; Specifications - AXIOMTEK NANO840 User Manual

NANO840/842 Nano-ITX Board
1.1

Features

 NANO840 - Intel
 NANO842 - Intel
 1 DDR3L SO-DIMM supports up to 8GB memory capacity
 5 USB 2.0 ports and 1 USB 3.0 port
 2 COM ports
 2 PCI-Express Mini Card
 +12V only DC-in supported
 Wide operating temperature supported
1.2

Specifications

 CPU
 NANO840
®
- Intel Atom
®
- Intel Atom
 NANO842
®
- Intel Celeron
®
- Intel Celeron
 Thermal Solution
 Passive
 Operating Temperature
 NANO840: -40°C~80°C.
 NANO842: -20°C~70°C.
 System Chipset
SoC integrated.

 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
 16Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM.
 System Memory
 One 204-pin DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1333/1066MHz memory.
 Onboard Multi I/O
 Controller: Fintek F81803.
 Serial Ports: COM1 supports RS-232/422/485 and COM2 supports RS-232 only.
 Serial ATA
 One SATA-300 connector.
 mSATA supported.
USB Interface

 Five USB ports with fuse protection and complies with USB Spec. Rev. 2.0.
One USB port with fuse protection and complies with USB Spec. Rev. 3.0.

2
® TM
Atom quad core E3845 (1.91GHz) and dual core E3827 (1.75GHz)
® ®
Celeron quad core J1900 (2GHz) and dual core N2807 (1.58GHz)
TM
processor quad core E3845 1.91GHz.
TM
processor dual core E3827 1.75GHz.
®
processor quad core J1900 2GHz.
®
processor dual core N2807 1.58GHz.
Introduction
