CAPA322 3.5" Board
2.4.20

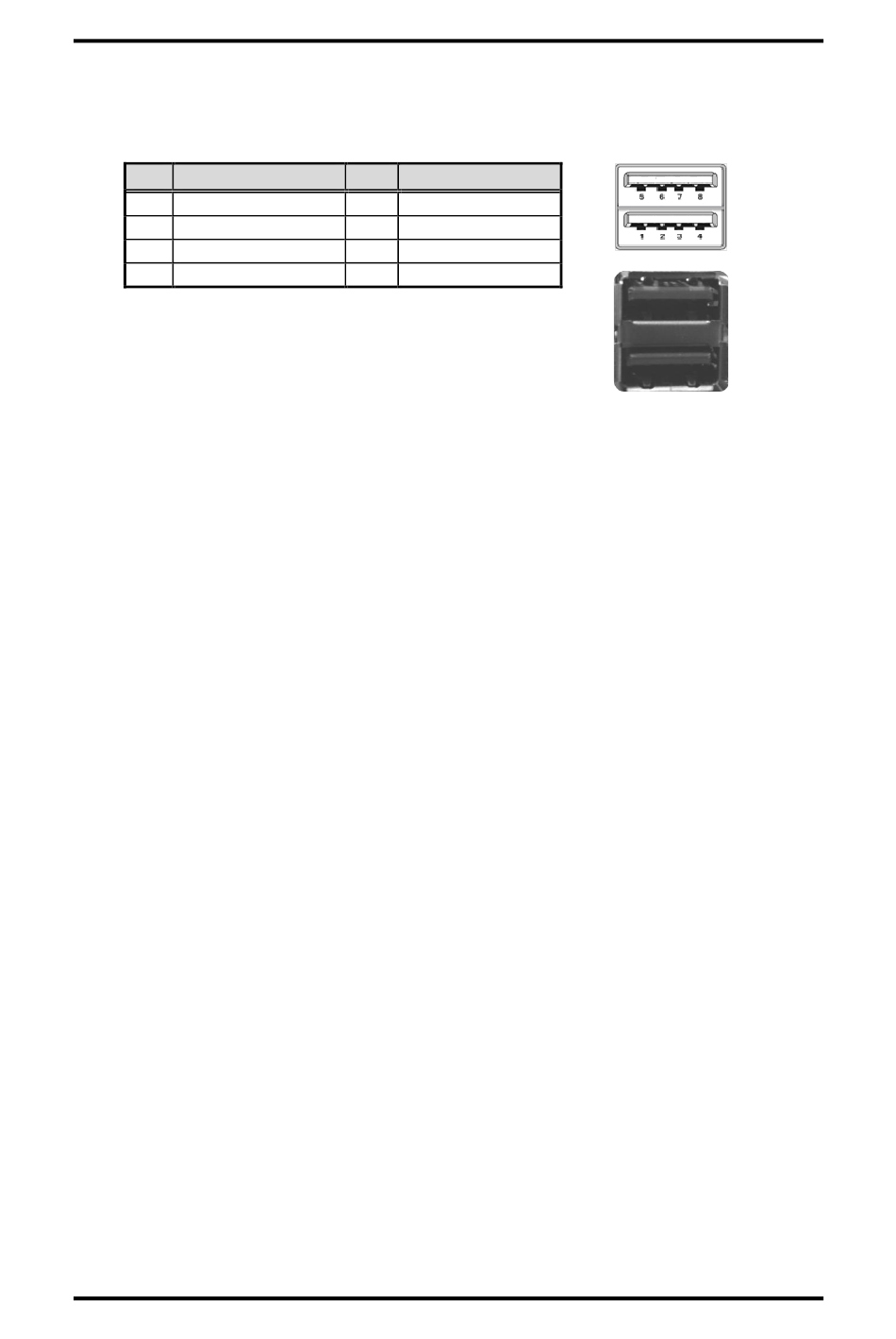

USB 2.0 Type A Port (USB3)

This connector is compliant with a Universal Serial Bus type-A connector for installing
versatile USB 2.0 compliant interface peripherals.
Pin
Signal
1
USB VCC (+5V)
2
DN2
3
DP2
4
GND
20
Pin
Signal
5
USB VCC (+5V)
6
DN3
7
DP3
8
GND
Board and Pin Assignment
