Manitowoc Grove RT540E Service Maintenance Manual page 98

HYDRAULIC SYSTEM
13
14
20
2
Item
1 Barrel
2 Piston
3 Head
4 Wear Ring
5 Setscrew
6 O-ring
7 Backup Ring
8 Hydrolock Seal
9 Wear Ring
10 O-ring
2-66
18
17
8
9
10
11
Description
Published 4-20-2015, Control # 502-01
19
17
1
15
6
16
3
Item
11 Backup Ring
12 Spacer
13 Piston
14 Spacer
15 Rod
16 Rod
17 Head
18 Wear Ring
19 Plug
20 Check Valve
RT540E SERVICE MANUAL
5
4
5
7
12
6732

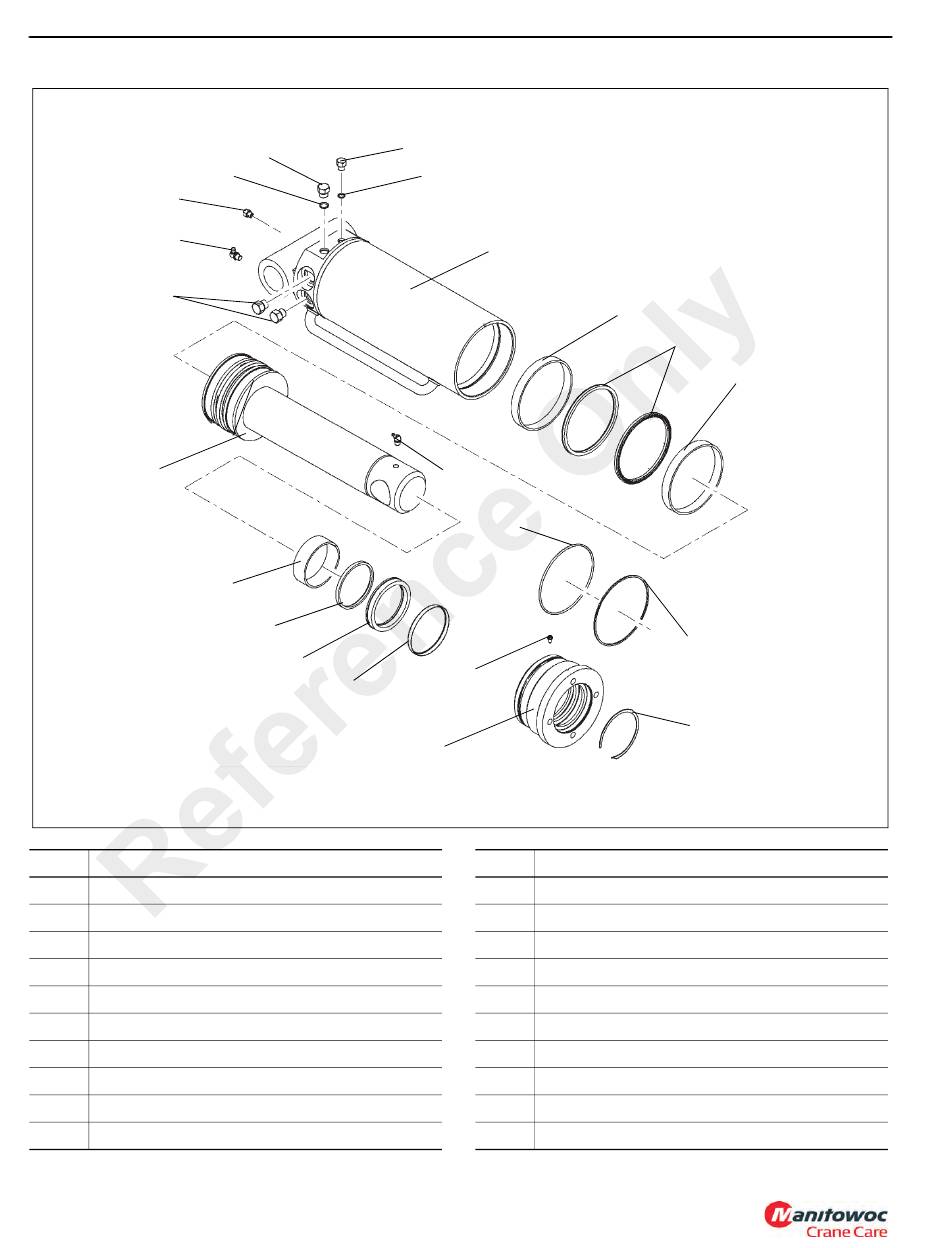

FIGURE 2-37
Description
