HOIST AND COUNTERWEIGHT
5-14
5
3
4
5
Item Description
1 Counterweight
2 Pin Assembly
3 Capscrew
4 Hex Nut
5 Jam Nut
6 Grill
7 Retaining Nut
8 Flat Washer
9 Lock Washer
10 Capscrew
11 Lock Pin
Published 4-20-2015, Control # 502-01
2, 11
4
3
5
4
RT540E SERVICE MANUAL
2, 11
7, 8, 9, 10
6
1
6826

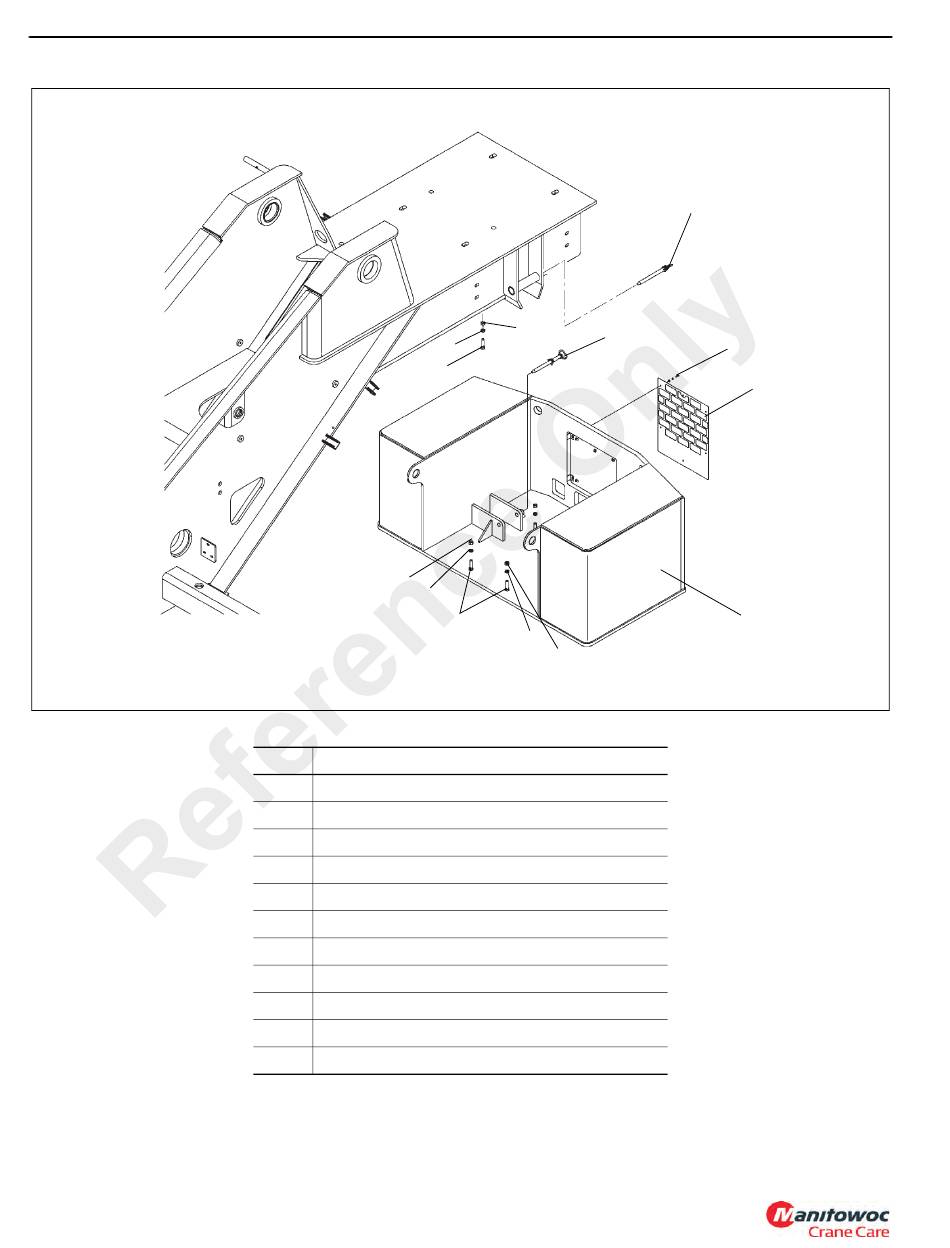

FIGURE 5-5
