RT540E SERVICE MANUAL
1
8088
Item Description
1 Sheet Metal Guard
2 Tail Pipe
3 Muffler Clamp
4 Muffler
5 Mounting Band
6 Exhaust Tube
7 Muffler Clamp
8 Mounting Band
GROVE
15
12
13
16

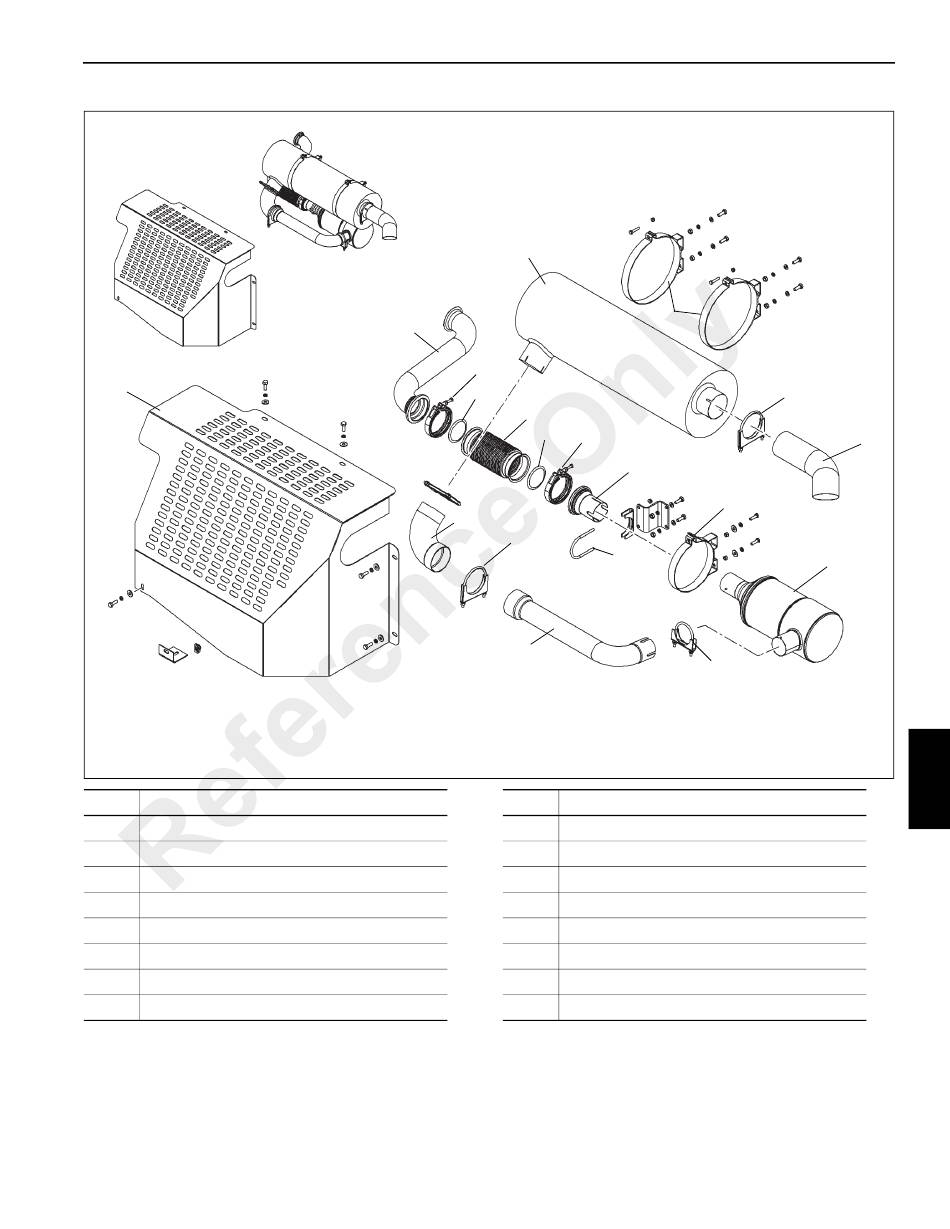

Muffler and Diesel Oxidation Catalyst - Tier 4
Published 4-20-2015, Control # 502-01
4
5
14
13
12
11
3
10
6
Item Description
9 Diesel Oxidation Catalyst
10 Muffler Clamp
11 Tube Exhaust Weldment
12 Clamp
13 Gasket
14 Bellows
15 Tube Exhaust Weldment
16 Elbow
POWER TRAIN
3
2
8
9
7
FIGURE 7-9
7-15
7
