RT540E SERVICE MANUAL
2
Item
1 Barrel
2 Rod
3 Head
4 Lip Seal Ring
5 Wear Ring
6 O-ring
7 Backup Ring
8 Buffer Ring
9 Wear Ring
GROVE
14
13
15
8
9
10
11
Description
Published 4-20-2015, Control # 502-01
18
17
18
17
1
6
3
16
Item
10 Lip Seal Ring
11 Wiper Ring
12 Retainer Ring
13 Bleeder Plug
14 Grease Fitting
15 Grease Fitting
16 Screw
17 O-ring
18 Cap Assembly
HYDRAULIC SYSTEM
5
4
4
5
7
12
6731

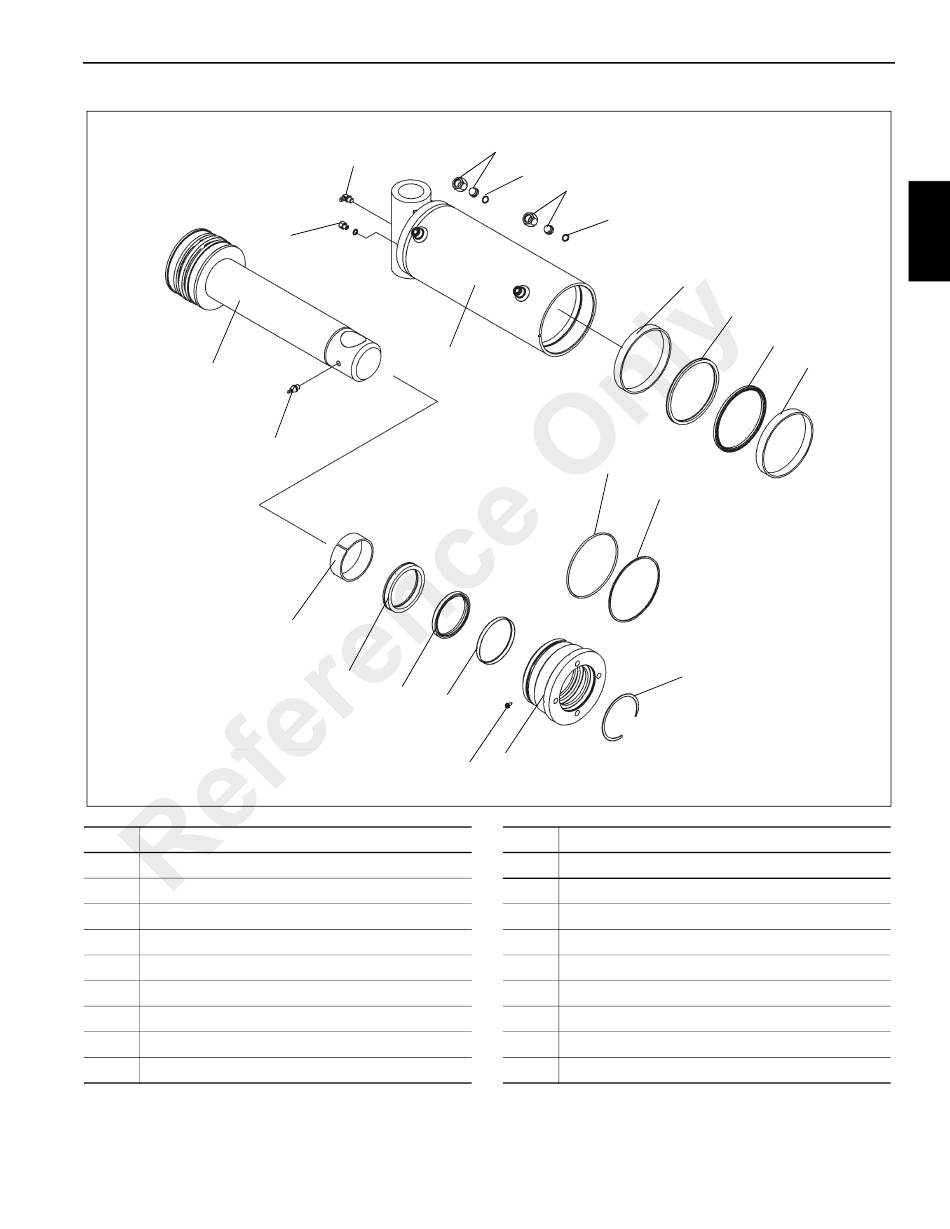

FIGURE 2-36
Description
2
2-65
