5. Connect the wire harness to the bottom of the gauge
cluster (5).
6. Install the wire harnesses on the switches (4) as tagged
during removal.
7. Install the right side cover (9) on the steering column.
8. Connect the wire harness to the ignition switch (10).
9. Install the left side cover (8) on the steering column.
10. Secure the gauge/switch cover (6) to the left and right
side covers (8, 9) using six screws (14).
11. Secure the left and right side covers (8, 9) together using
four screws (13).
12. Install the steering wheel (2); torque the securing nut to
30 lb-ft ±4 (40 Nm ±5).
4
14
8
11
8494
GROVE
3
13
12
5
Published 4-20-2015, Control # 502-01
13. Install the steering wheel cap (1).
14. Install the lever (12) and spacer that locks/unlocks the
steering column tilt/telescope function.
15. Pull the rubber boot (11) up and over the bottom of the
left and right side covers (8, 9).
16. Turn the battery disconnect switch to the ON position.
Check
1. Operate the turn signal lever or transmission shift lever
per the Operator Manual. Verify each of its functions
work.
2. As needed, troubleshoot further any system or circuit
malfunction not corrected by repair or replacement of
the switch or associated wiring.
1
6
2
7
9
14
10
ELECTRIC SYSTEM
12

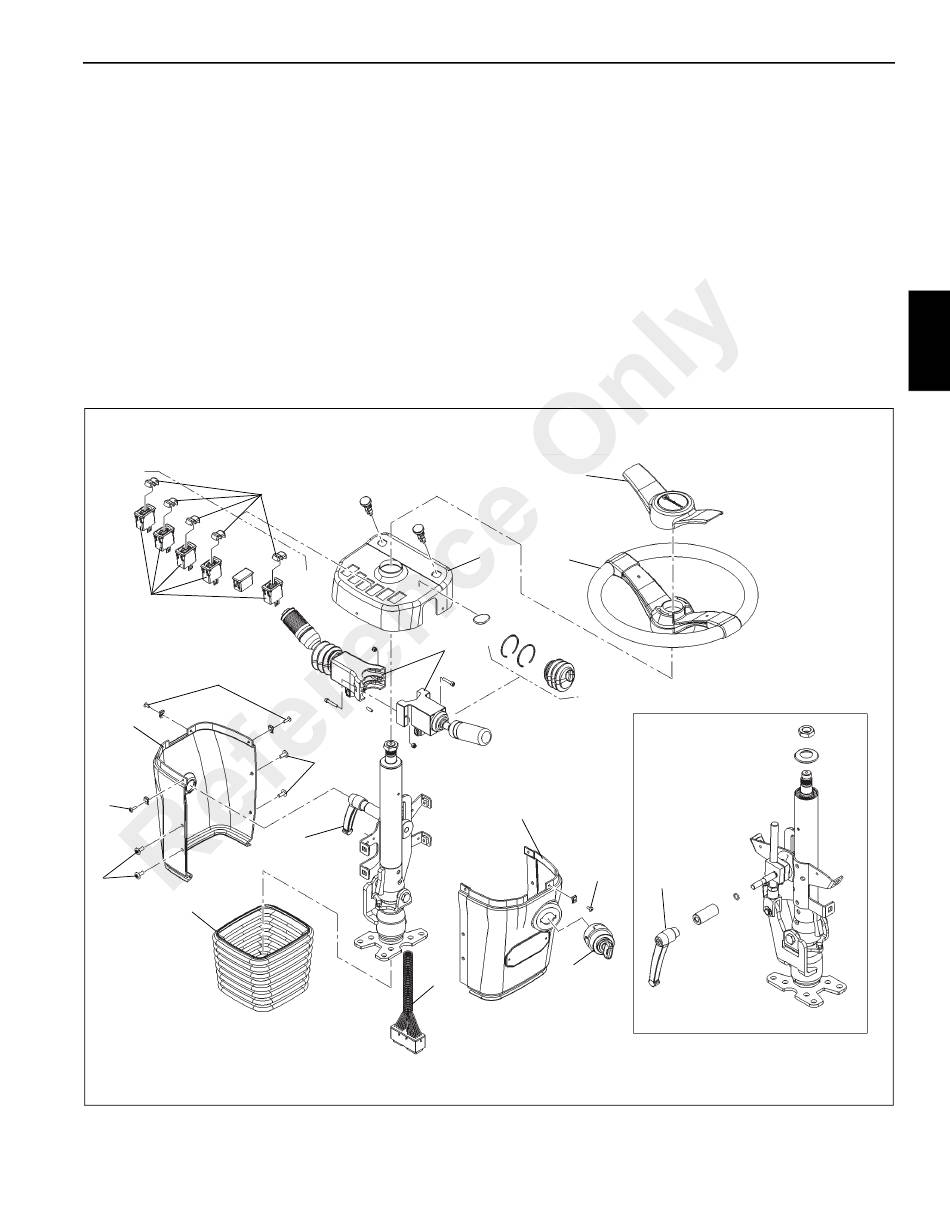

FIGURE 3-6
