RT540E SERVICE MANUAL
1

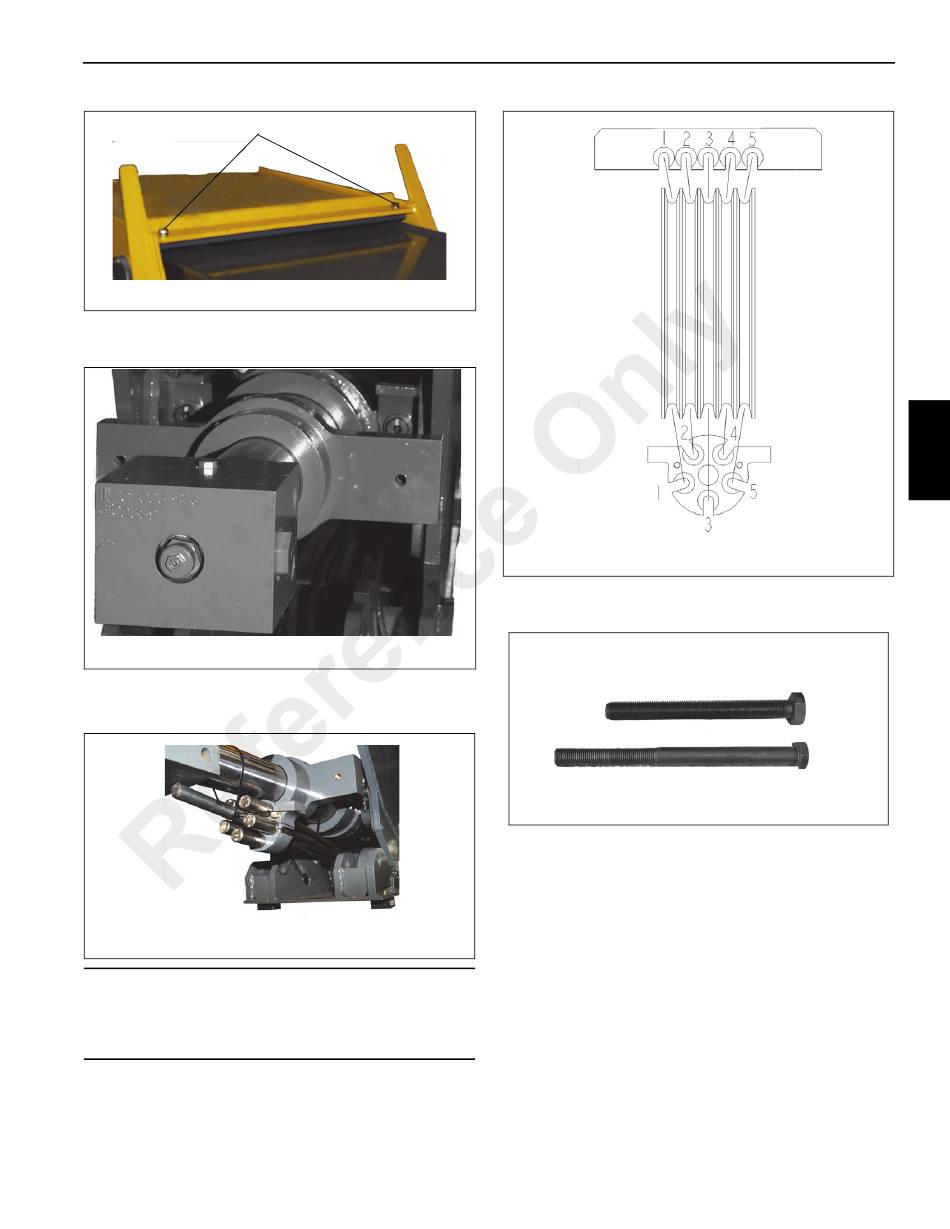

19. Rotate cylinder mounting to facilitate mounting in to the
Inner Mid section. (Figure 4-55)
6748-31
20. Install Extend Cables in to the round keeper plate
(Figure 4-56 and Figure 4-57).
6748-29
CAUTION
Install Extend Cables in proper sequence. Do not allow
the cables to become entangled or overlap. Cable or
boom failure could result.
GROVE
FIGURE 4-54
21. Install adjusting (Figure 4-58) bolt to the anchor
assembly.
.
FIGURE 4-55
22. Temporary secure anchor assembly to the Extend
Cylinder Rod.
23. Attach the mid retract cables to the anchor point at the
base end of the Outer Mid.
a.
FIGURE 4-56
24. Lay out the threaded end of the mid retract cables
through the Inner Mid section toward the base end.
Published 4-20-2015, Control # 502-01
Permanent Anchor Bolt
Assembly Bolt
Lubricate and install pin through cable ends. Secure
pin (Figure 4-59, 1) with cotter keys.
BOOM
4
FIGURE 4-57
FIGURE 4-58
4-23
