RT770E SERVICE MANUAL

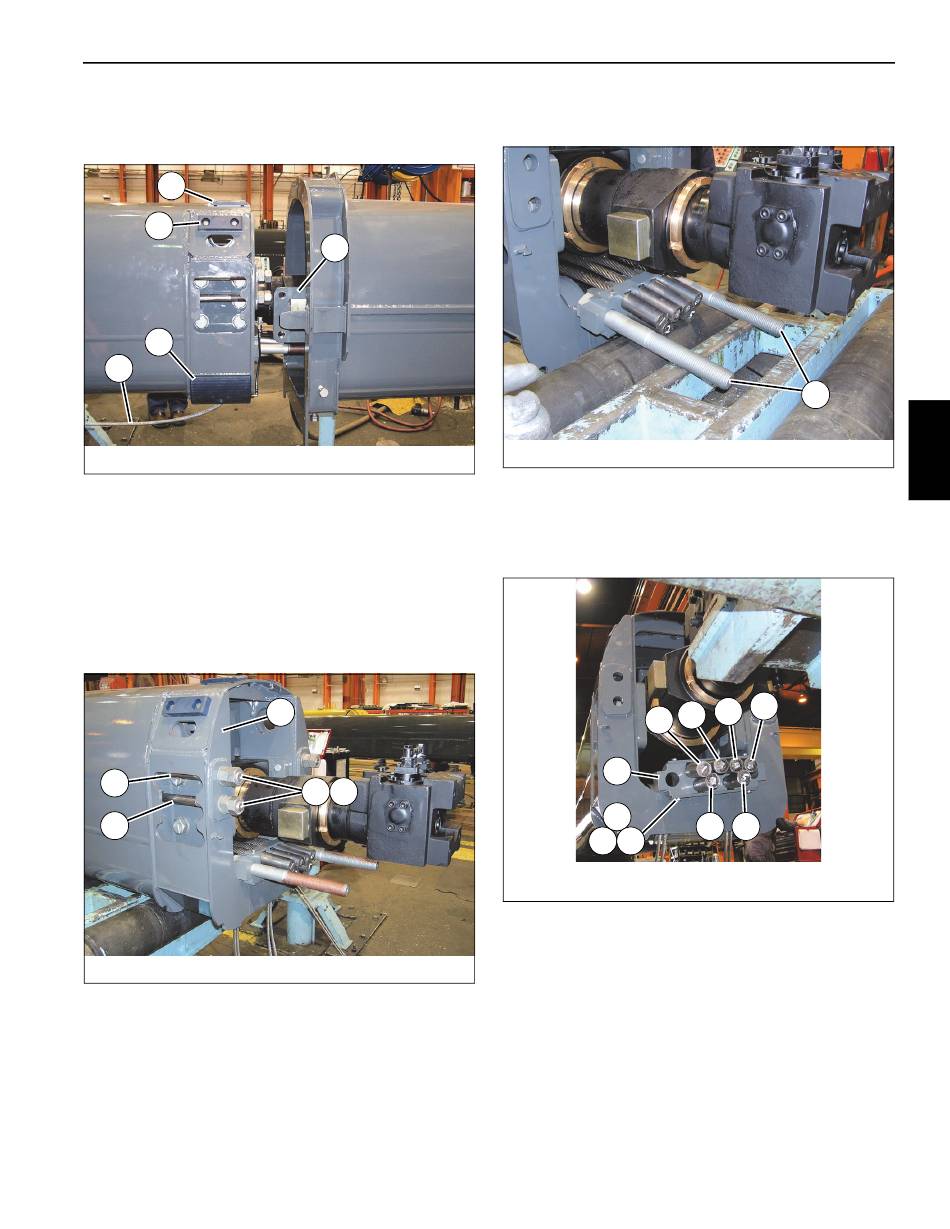

34. Remove the wear pad (94)/grease hose assembly (81,
79, 80, 77, 78) from the attaching bracket on each side
of the rear of tele 2 (3) (see Figure 4-7).
71
82
94
65
8008-28
35. Remove the two capscrews (83) and lock washers (72)
securing the wear pad assembly (71) to each side of the
bottom rear of tele 2 (3) (see Figure 4-7).
36. Remove the two capscrews (83) securing the wear pad
assembly (82) to each side of the bottom rear of tele 2
(3) (see Figure 4-7).
37. Remove the two nuts (95) and one flat washer (61)
securing each of the four tele 4 extends cables (109,
110) to the top rear of tele 2 (3) (see Figure 4-8).
110
109
8008-27
38. Remove the two tele 4 extend cables (109, 110) from the
holes in the rear of tele 2 (3) (left and right sides) (see
Figure 4-8).
GROVE
60
FIGURE 4-7
3
61
95
FIGURE 4-8
Published 11/26/2014, Control # 447-05
39. Remove the two bolts (76) from the anchor plate (73)
(see Figure 4-9).
8008-24
40. Remove the two bolts (85) and lock washers (25)
securing the plate cover (84) to the anchor plate (73),
then remove the four tele 3 extend cables (150), labeled
1, 3, 4, and 6, from the anchor plate (73) (see
Figure 4-10).
#1
73
84
25
85
8008-25
41. Remove the two bolts (85) and lock washers (25)
securing the plate cover (84) to the anchor plate (73),
then remove the two tele 3 extend cables (150), labeled
2 and 5, from the anchor plate (73) (see Figure 4-10).
42. Remove the five bolts (62) and flat washers (61)
securing the trunnion plate (60) to the inside of tele 2 (3)
(left and right sides) (see Figure 4-11).
BOOM
76
FIGURE 4-9
#6
#4
#3
#2
#5
FIGURE 4-10
4
4-15
