OPERATING CONTROLS AND PROCEDURES
CRANE CONTROL SYSTEM (CCS)
The RT530E-2 is equipped with the electronic CCS (Crane
Control System). CCS includes a control unit in the cab and
several control units (MWSCM and MWCCM) distributed
over the superstructure and carrier.

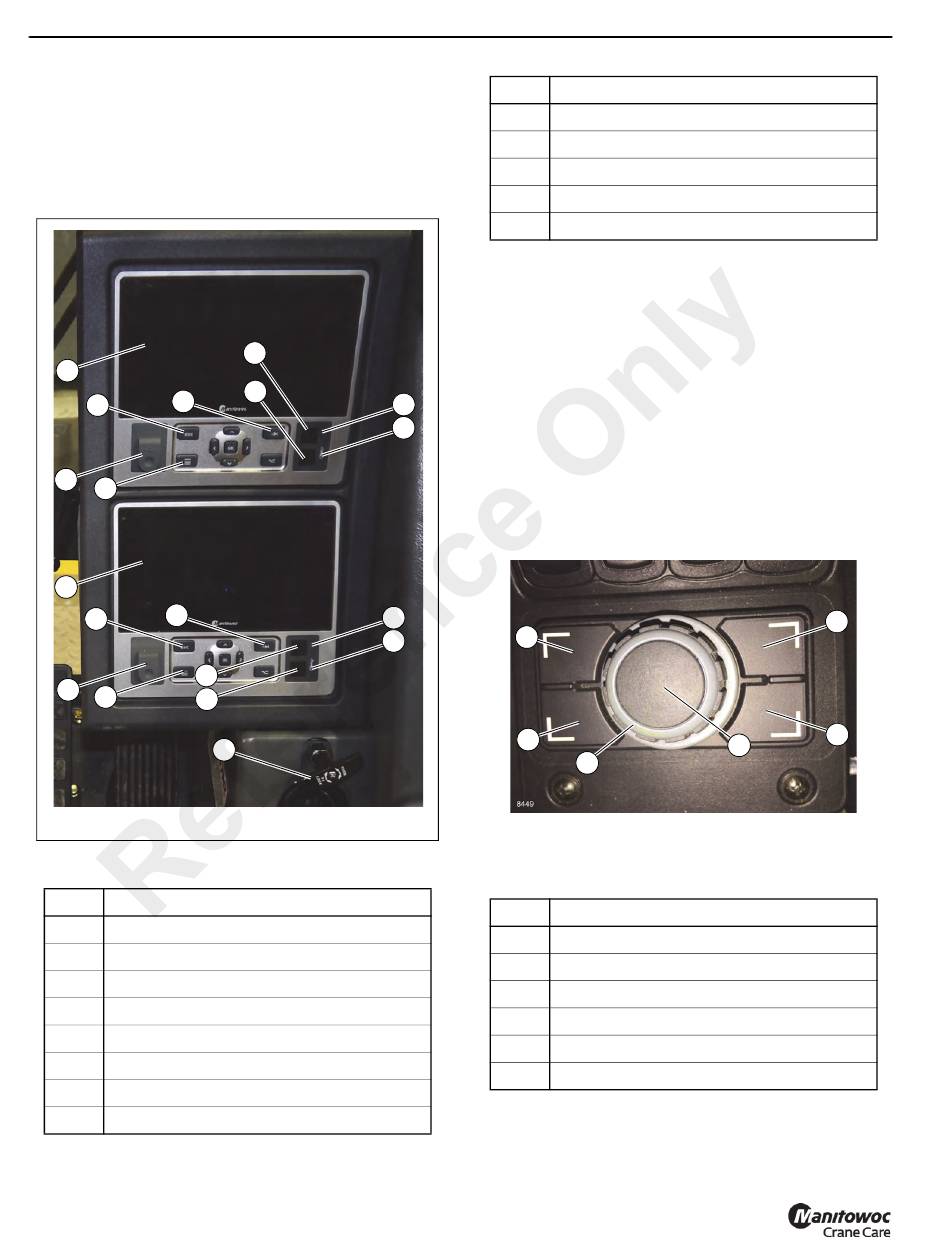

Crane Control System (CCS) Display
1
5
4
3
6
2
5
4
9
3
6
10
C9521
Figure 3-11 Item Numbers
Item
1 Rated Capacity Limiter (RCL) Display
2 CCS Operation Display
3 USB Diagnostic Connector
4 Escape Button
5 Tab Button
6 Menu Button
7 RCL Shutdown Warning Indicator
8 RCL Early Warning Indicator
3-26
7
8
11
12
13
FIGURE 3-11
Description
Published 5-3-2016, Control # 555-02
RT530E-2 OPERATOR'S MANUAL
Item
9 Anti Two-Block Indicator
10 Swing Brake Engaged Indicator
11 Brightness Sensor
12 Internal Temperature Warning Indicator
13 Turntable Pin Swing Lock Control
Menu Control
The Jog Dial operates the CCS identically to the buttons on
the display console, providing easier access for the operator.
Spinning the jog dial performs the same function as the
navigation arrow buttons on the display console. The icon in
the lower left corner of the display screen reminds the
11
operator which display is being controlled by the jog dial at
12
that time. The Screen Toggle Button (4) (Figure 3-12) is used
to switch screens. The tab button can also be used to
temporarily silence audible alarms. The functionality of the
other buttons is different depending on the area, screen and
menu.
1
3
Item
1 Escape Button
2 Tab Button
3 Menu Button
4 Screen Toggle Button
5 Jog Dial (Rotate dial to move cursor)
6 OK/Enter Button (Press Jog Dial to select)
Description
6
5
Figure 3-12 Item Numbers
Description
2
4
FIGURE 3-12
