Storage Bin - AGFA DR 100s User Manual

Storage bin

10
9
8
Emergency stop button
1.
Connectors for the hospital network, DR detectors and accessories
2.
Exposure button
3.
Wireless exposure button (optional)
4.
Lock to secure the DR Detector (large format, optional)
5.
Integrated charger for DR Detector battery (optional)
6.
Lock to secure the DR Detector (small format, optional)
7.
Grid holder
8.
Slot for positioning the detector to cover it in a protective bag
Storage space for a wireless DR Detector (large format)
9.
Storage space for a wireless DR Detector (small format)
10.

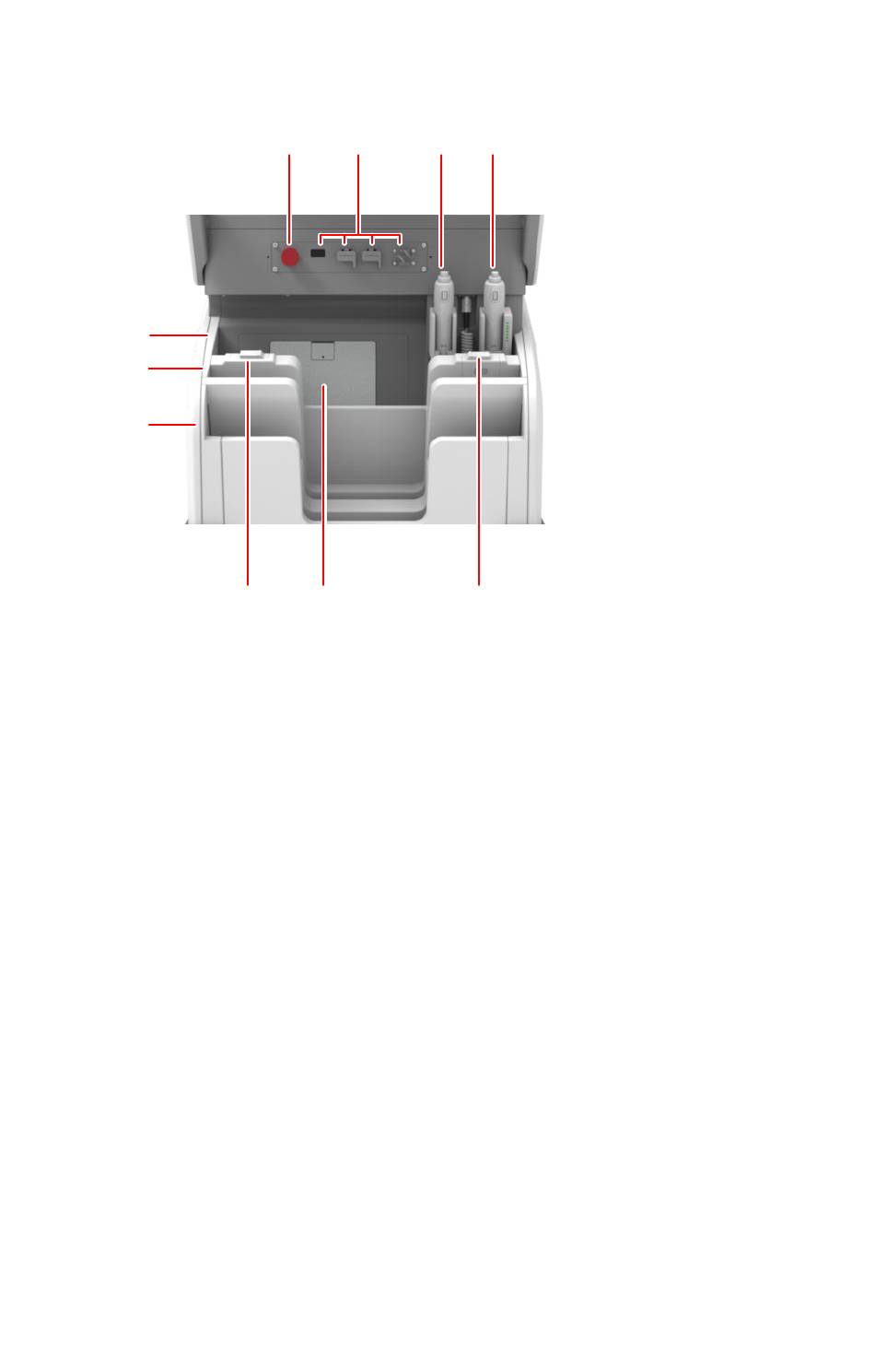

Figure 15: Storage bin
To clean the storage bin on the inside, take out the partitions of the storage
bin.
Related Links
Connectors for the hospital network, DR detectors and accessories
1 2
7 6
3 4
5
