AGFA DR 100s User Manual page 181

Table 36: X-ray tube assembly
Model
Maximum voltage to the tube
Maximum thermal capacity
Maximum continuous heat dissipation
Minimum inherent filtration @75 kV
Additional filtration
Mininimum total filtration
Maximum radiation leakage
(at 1 m)
Thermal safety

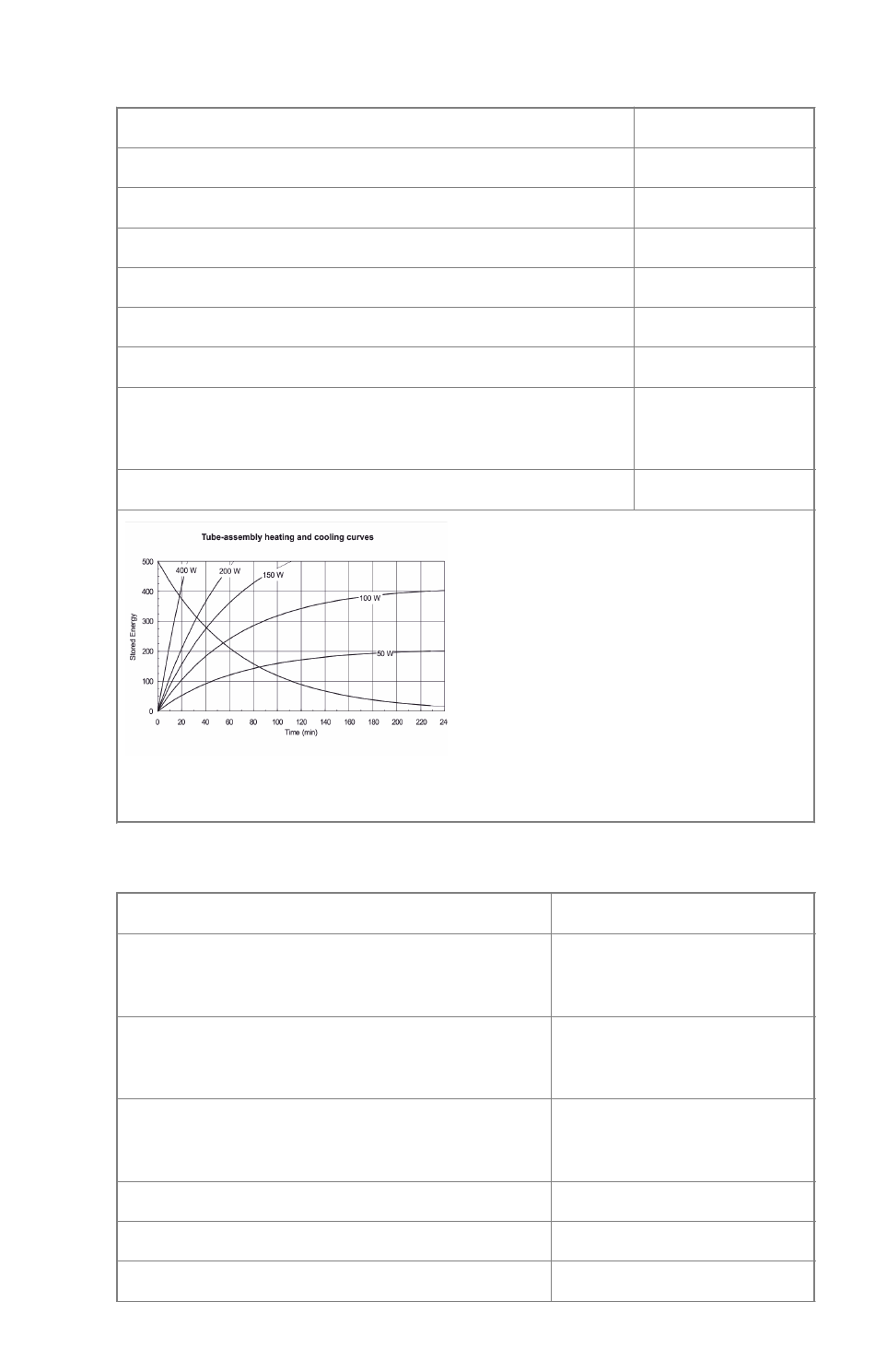

Figure 72: Heating and cooling curves
Table 37: X-ray tube
Model
Nominal focus dimension (IEC 60336)
Rotation speed
Nominal anodic power (IEC 60613)
Anodic diameter
Anodic material
Anodic angle
DR 100s | Product Information | 181
C31
150 kV
500 kJ
120 W
1.2 mm Al
0.3 mm Al
1.5 mm Al
20 mR/h
67 °C ± 3° C
RTM 72 HS
0.6 mm small focus
1.2 mm large focus
3000 rpm (f = 50 Hz)
3600 rpm (f = 60 Hz)
17 kW small focus
43 kW large focus
73 mm (2.9 inch)
RT-TZM
12.5°
