System Board Removal/Replacement

Reinserting PCI I/O Cards

Reference the PCI label in the system for correct installation procedure.

When installing a PCI I/O card, do not rock it from side to side, or the

card may be damaged.

To ensure optimum system performance and prevent system damage,

install all I/O cards into their original slots. Refer to the I/O slot numbers

on the back of the workstation.

1. Align the edges of the PCI card with its slot and ﬁrmly push down to

connect the card to the system board. Visually inspect and conﬁrm

the connection between the I/O card and the system board.

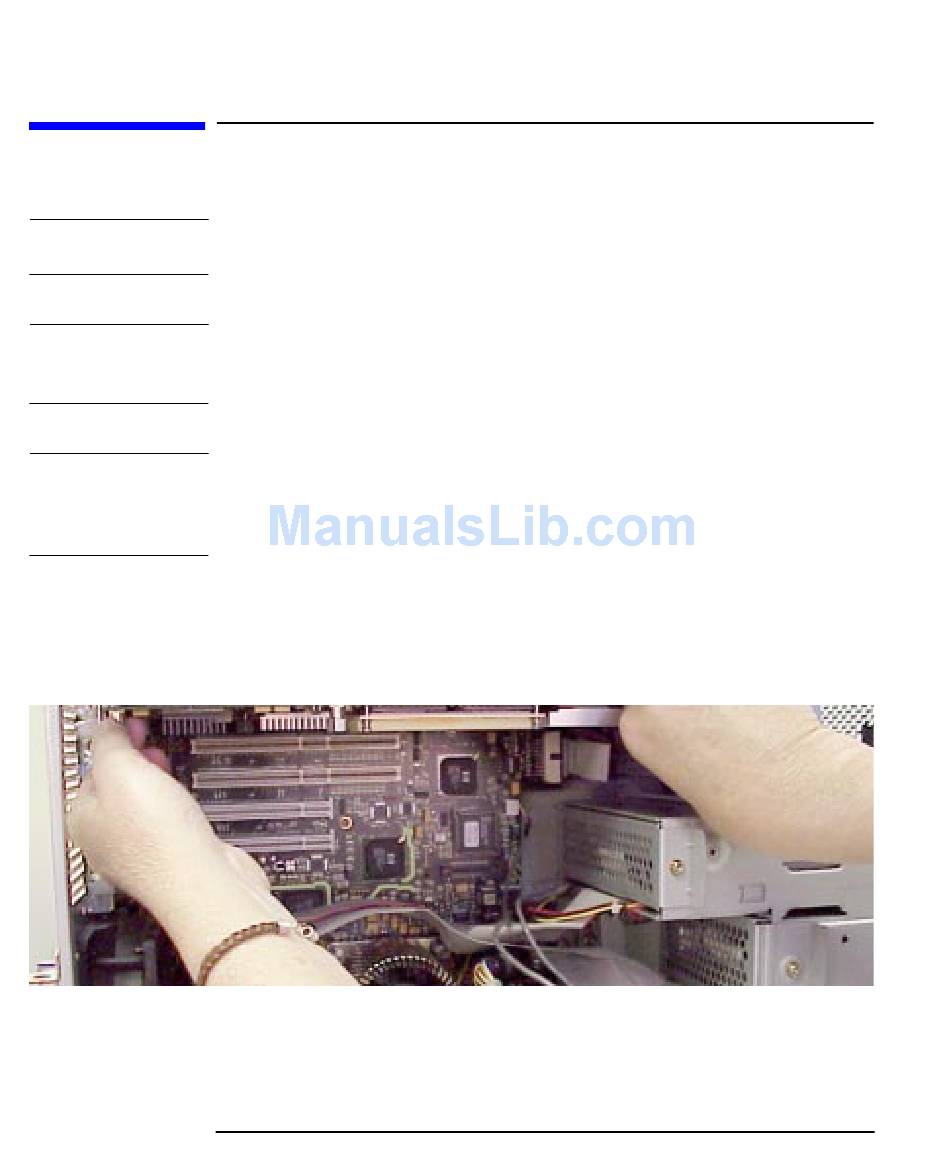

Installing the PCI Cards

2. Looking down on the PCI cards, replace the bulkhead screw for each

PCI card.
