System Board Removal/Replacement
Reinstalling the Hard Disk Fan
Reinstalling the Hard Disk Fan
1. Locate the area next to the DIMMs from which the fan was removed.
2. Align the hard-disk fan with the fan bracket guide and slide it into

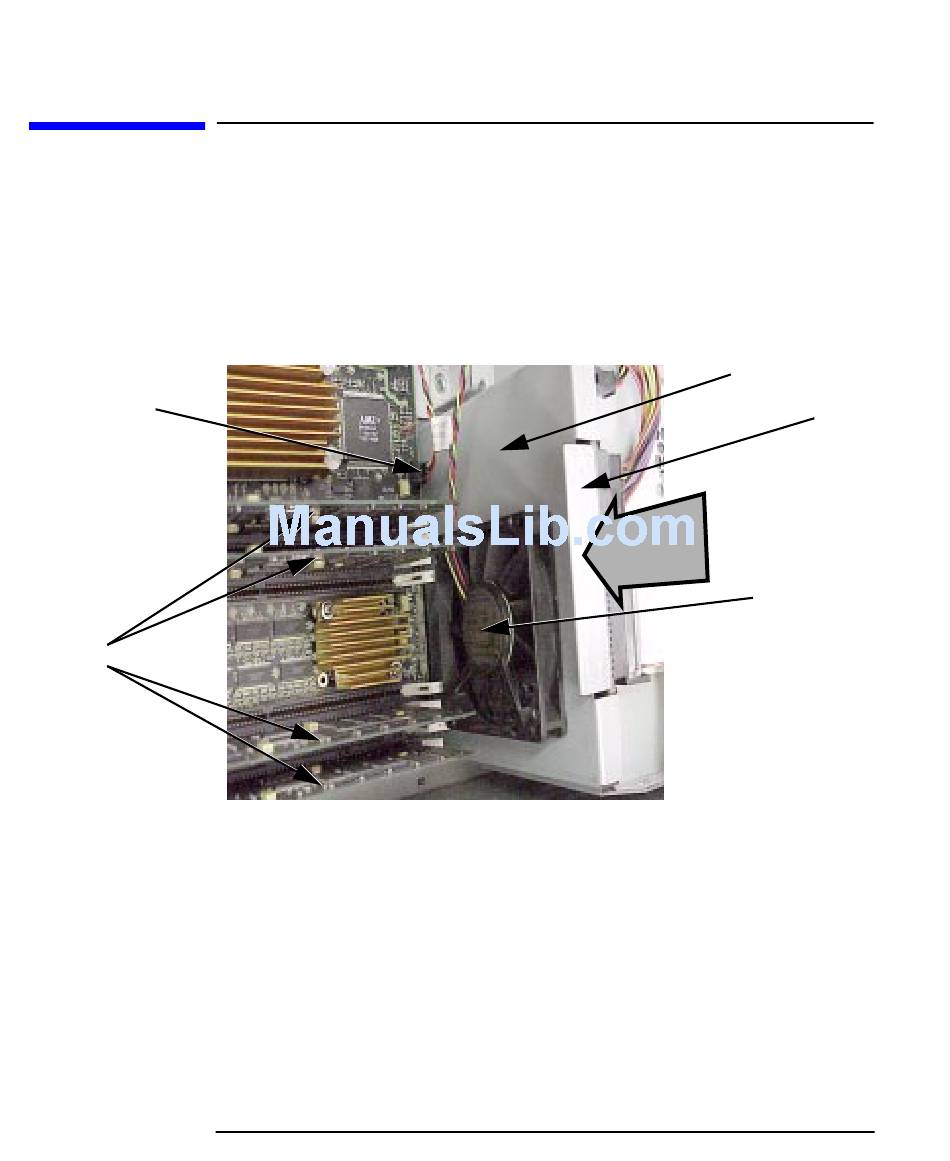

Figure 2-18
Reinstalling the Hard Disk Fan
Hard-Disk Fan
Power Cable
DIMMs
3. Reconnect the fan's power cable to the socket on the system board.
38
place, making sure the tabs engage the holes in the chassis. The fan
will click into place.
Fan Bracket
Fan Bracket Handl
Hard Disk Fan
Chapter 2
