System Board Removal/Replacement

Removing the Terminators and Cables

1. After powering down the workstation as described in the "Getting

2. Remove the two SCSI terminators from the back of the machine, as

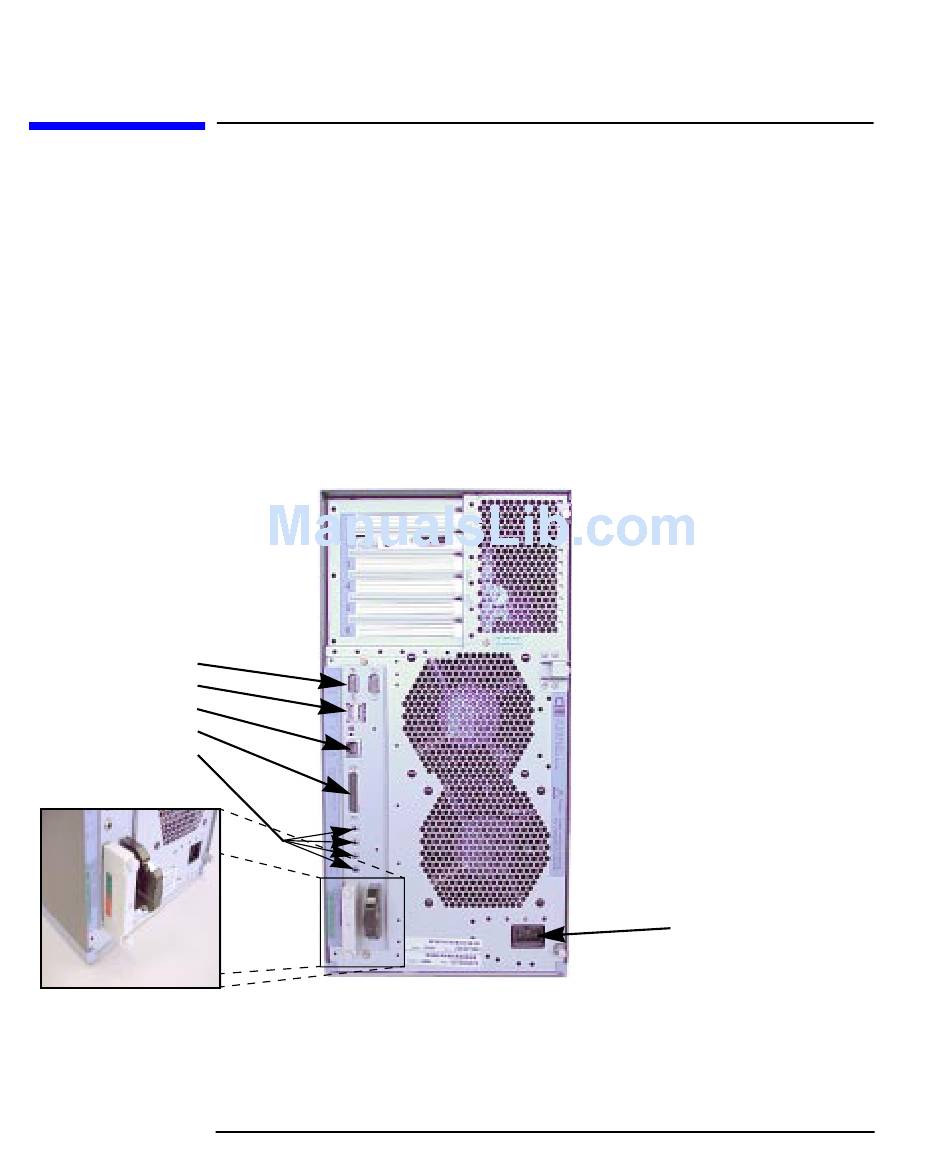

Figure 2-1

Serial Ports

USB Ports

LAN Port

Parallel Port

Audio In/Out Ports

SCSI Terminators

Started" chapter, unplug the power cable from the back of the

workstation. To avoid ESD damage to components, carefully follow

the ESD procedures (also described in the "Getting Started" chapter).

shown below. Or, if you have already replaced either or both of the

terminators with cables to external peripheral devices, remove those

cables., LAN cable, USB cables, and any other cables from the back of

the workstation.

Removing all Terminators and Cables

Power Plug

Chapter 2
