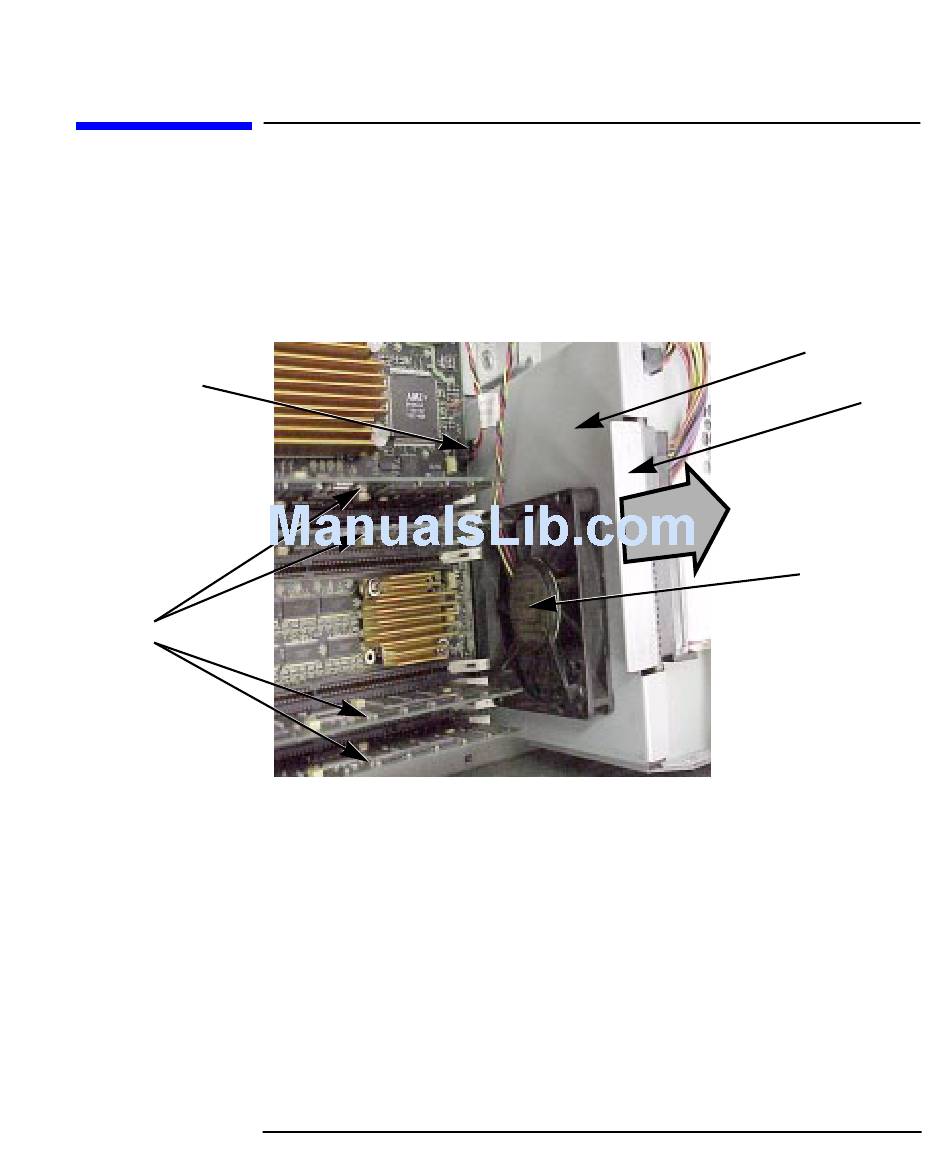

Figure 2-6
Fan Power Cable
DIMMs
Removing the Hard Disk Fan
1. Locate the memory DIMMs. The hard disk fan is to the right of these.
2. Disconnect the power cable from the system board that drives the
hard-disk fan.
Removing the Hard Disk Fan
3. Remove the hard-disk fan by lifting straight up on the handle of the
fan bracket.
Chapter 2
System Board Removal/Replacement
Removing the Hard Disk Fan
Fan Bracket
Fan Bracket Handl
Hard Disk Fan
23
