CAUTION
Figure 2-9
System Board Removal/Replacement
Removing the PCI I/O Card(s)
Removing the PCI I/O Card(s)
When removing a PCI I/O card, do not rock it from side to side, or the
card may be damaged. After removing each I/O card, locate the label
which indicates the PCI installation sequence, and place it on the
conductive sheeting until needed for re-assembly.
1. Looking down on the PCI cards, remove the bulkhead screw for each
PCI card.

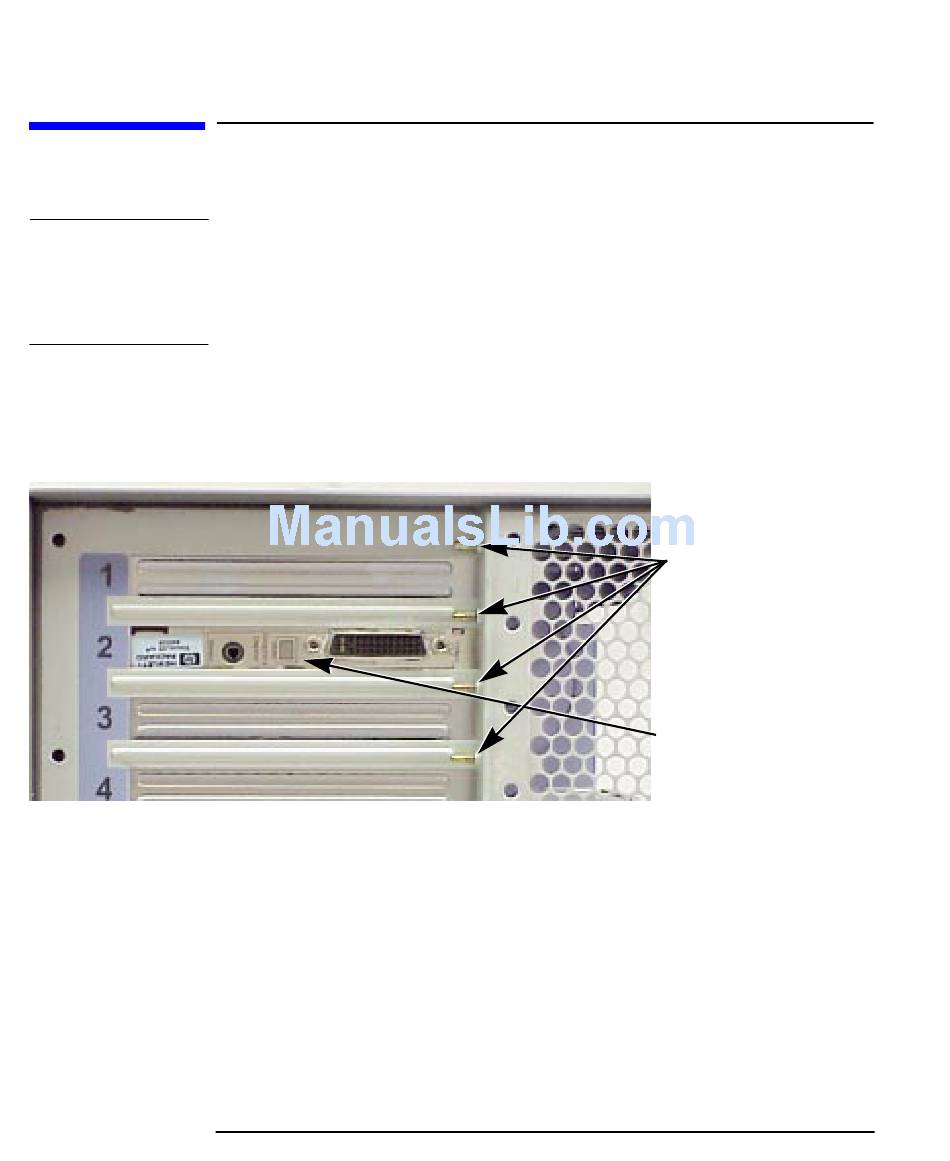

Removing the PCI Cards' Bulkhead Screws
2. Grasp the edges of each PCI card and pull it up and out of the
workstation.
26
Bulkhead screws
(remove from inside)
Typical PCI Card
Chapter 2
