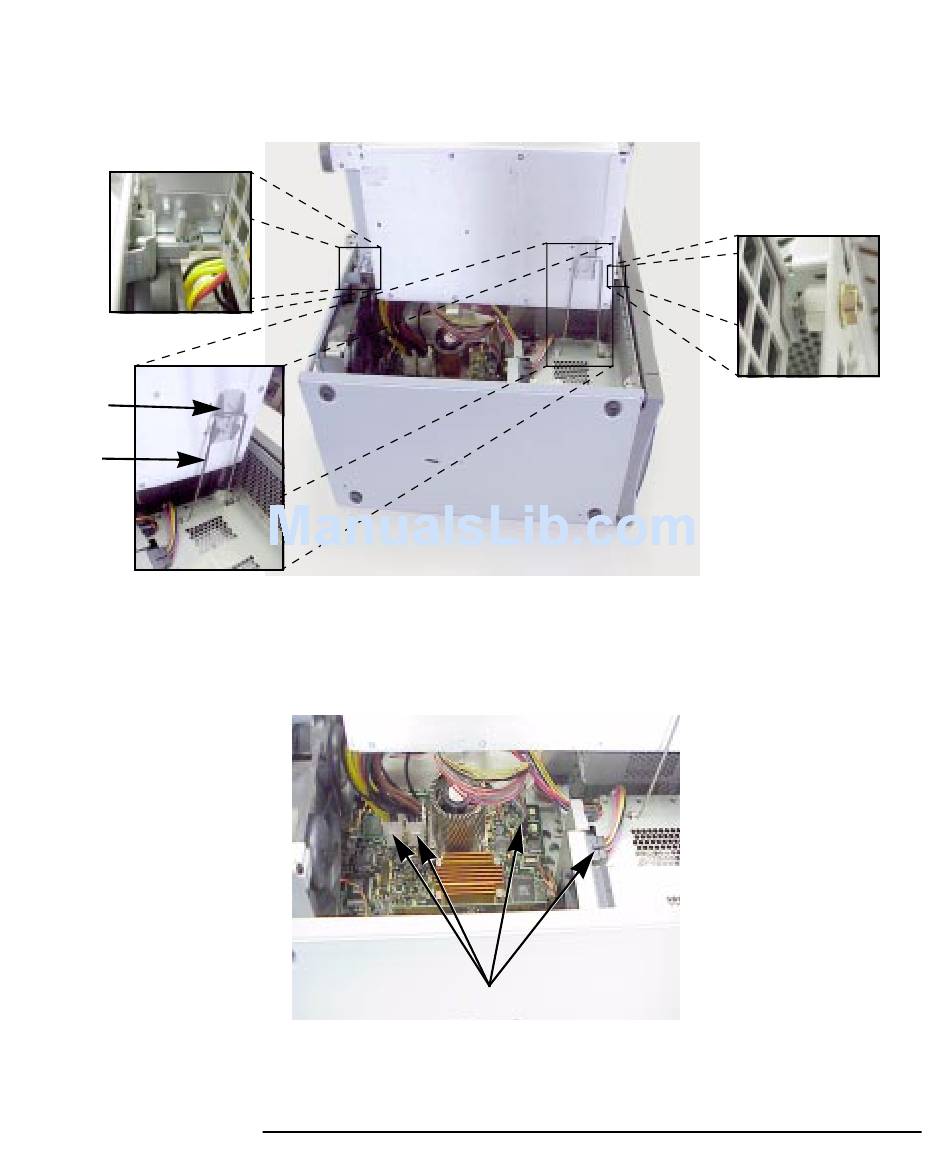

Figure 2-4
Spring Hinge
Bail
Lock
Bail
Figure 2-5
Tipping Up the Power Supply
5. Disconnect the four cables shown below located below the raised
power supply: three system power cables and the SCA hard disk
backplane cable.
Location of Power Cables
Power Cables
6. Remove the power supply from the workstation:
a. Holding the power supply handle, remove the bail from the bail
Chapter 2
System Board Removal/Replacement
Removing the Power Supply
Right-side Hinge Pin
