HP Visualize c3600 Upgrade Instructions page 36

System Board Removal/Replacement
Reinstalling the Air Divider
Reinstalling the Air Divider
1. Slide the air divider into the workstation.
2. Replace the two T-15 Torx screws—one on the back and one on the
3. Replace the PCI retainer clip by inserting its bottom end into the hole

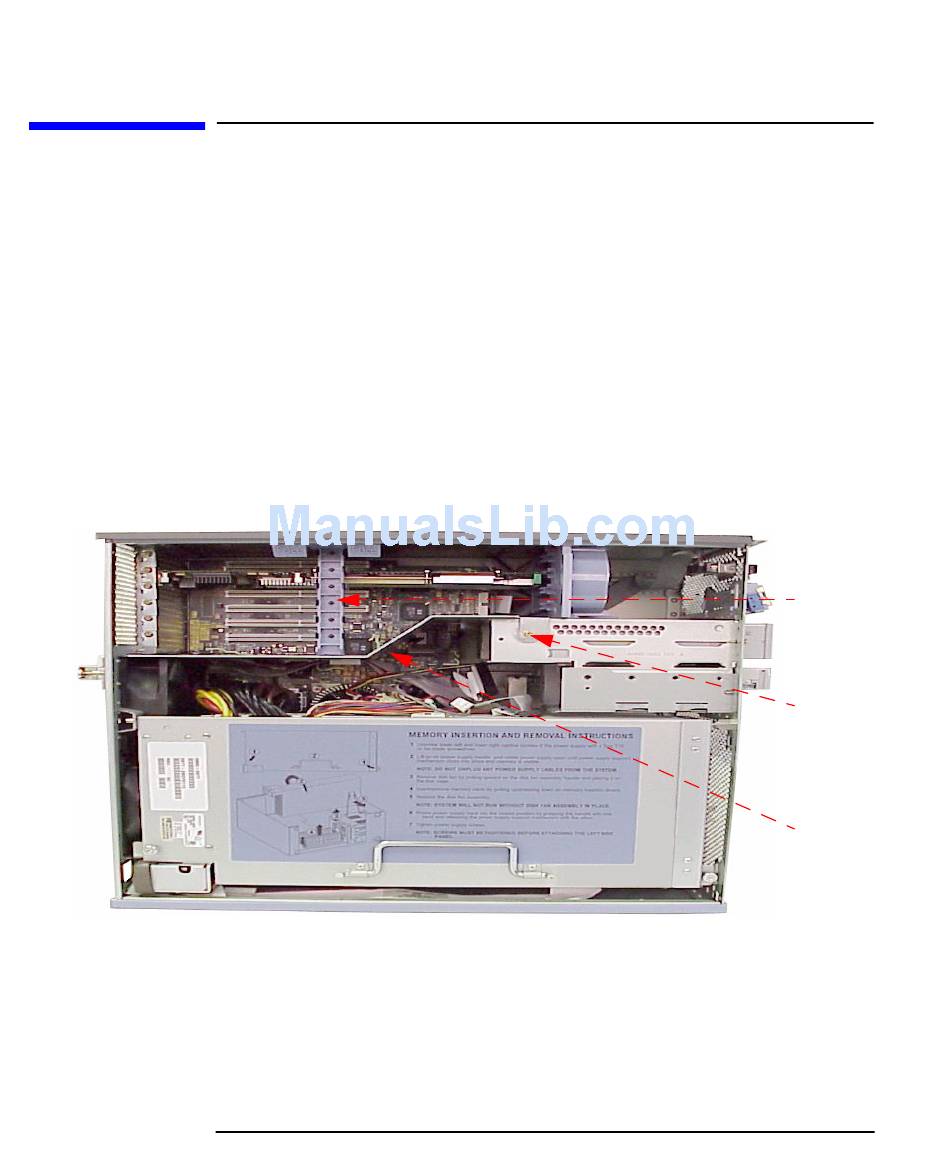

Figure 2-16 Installing the Air Divider
36
side—that secure the air divider to the chassis.
in the air divider, and then pushing upward and inward—making
sure that all the PCI cards' edges are aligned properly with the
individual retainers on the clip—until the clip clicks into place
against the top panel of the chassis. (The purpose of the air divider is
to keep the airflow that cools the PCI I/O cards separate from the
airflow that cools the system board; without the air divider, the
cooling of the components would be insufficient.)
PCI
Retainer
Clip
T-15
Torx
Thumbs
Air Divider
Chapter 2
