Parts Removal and Replacement

Terminators and Cables

Terminators and Cables
This section describes how to remove and replace the Terminators and Cables

Removing the Terminators and Cables

1. After powering down the workstation as described in the "Getting Started" chapter,
unplug the power cable from the back of the workstation. To avoid ESD damage to
components, carefully follow the ESD procedures (also described in the "Getting
Started" chapter).
2. Remove the two SCSI terminators from the back of the machine, as shown below. Or, if
you have already replaced either or both of the terminators with cables to external
peripheral devices, remove those cables., LAN cable, USB cables, and any other cables
from the back of the workstation.

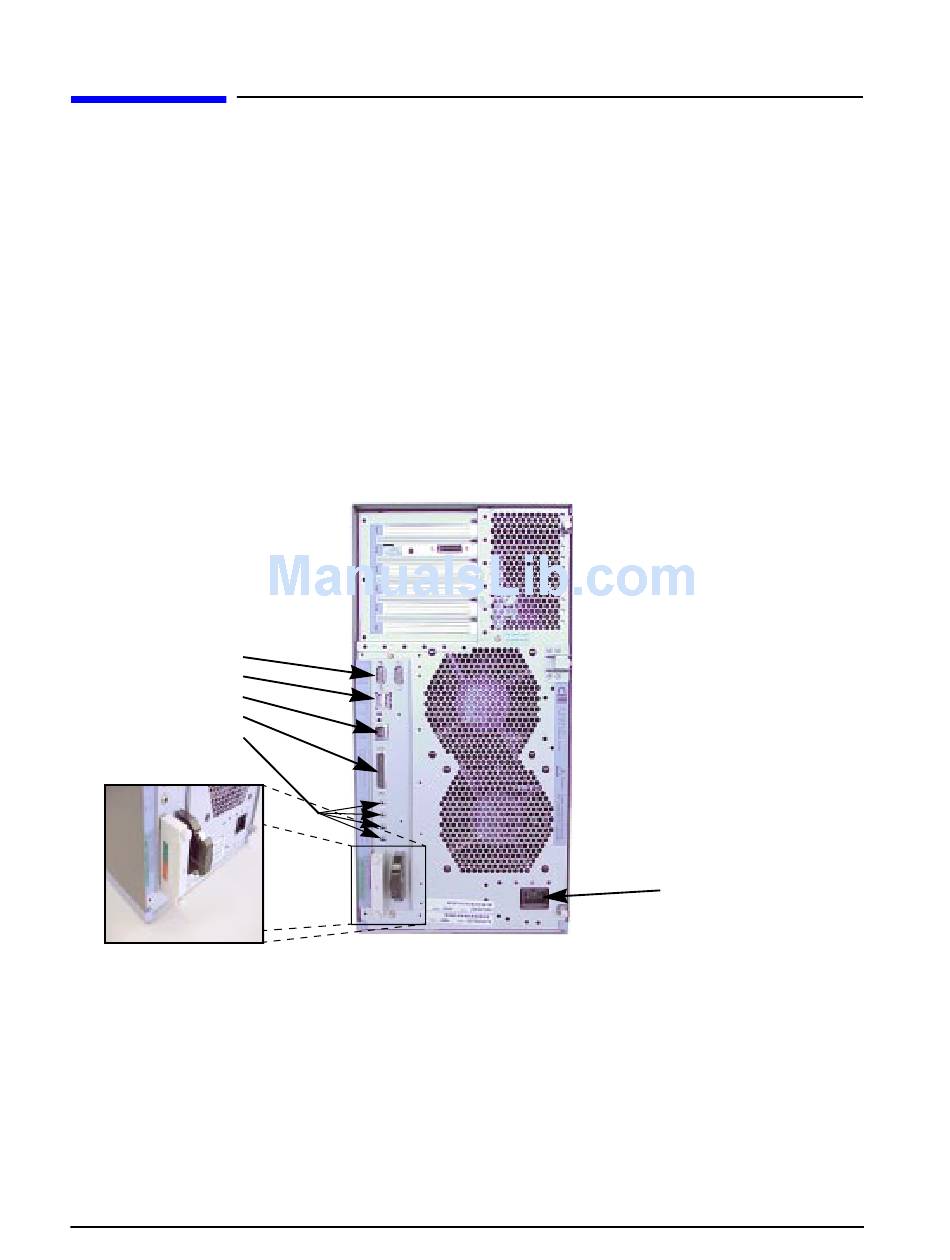

Figure 2-1. Removing all Terminators and Cables
Serial Ports
USB Ports
LAN Port
Parallel Port
Audio In/Out Ports
SCSI Terminators
1. Remove the cables from the USB Clip from the back of the Workstation.
10
Power Plug
