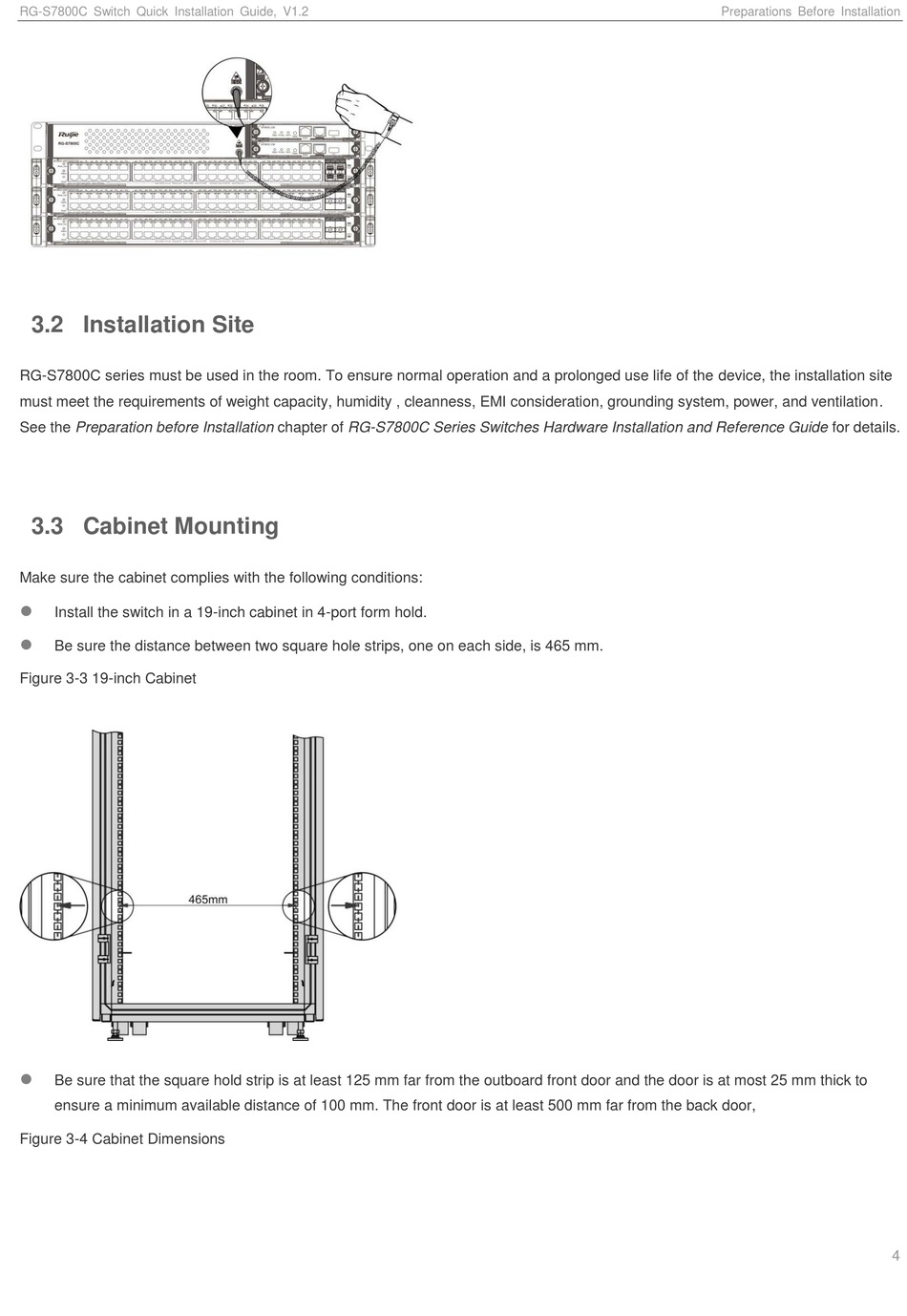

3.2 Installation Site

RG-S7800C series must be used in the room. To ensure normal operation and a prolonged use life of the device, the installation site
must meet the requirements of weight capacity, humidity , cleanness, EMI consideration, grounding system, power, and ventilation.
See the Preparation before Installation chapter of RG-S7800C Series Switches Hardware Installation and Reference Guide for details.

3.3 Cabinet Mounting

Make sure the cabinet complies with the following conditions:

Install the switch in a 19-inch cabinet in 4-port form hold.

Be sure the distance between two square hole strips, one on each side, is 465 mm.
Figure 3-3 19-inch Cabinet

Be sure that the square hold strip is at least 125 mm far from the outboard front door and the door is at most 25 mm thick to
ensure a minimum available distance of 100 mm. The front door is at least 500 mm far from the back door,
Figure 3-4 Cabinet Dimensions
