Ruijie RG-S7800C Switches Quick Installation Guide, V1.2
4 Installing the Switch
4.1 Installation Flowchart

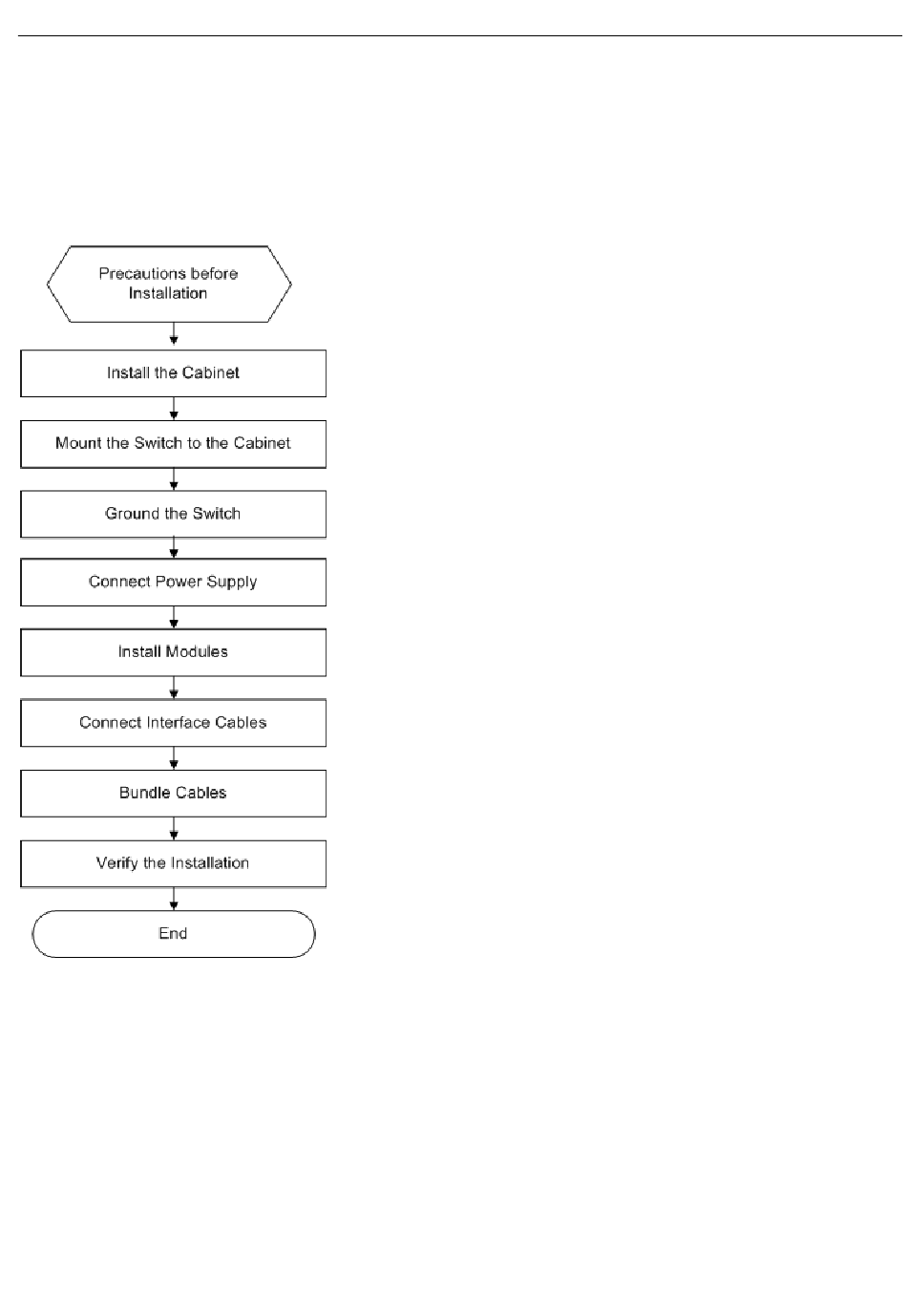

Figure 4-1 Installation Flowchart
4.2 Installing Slide Rails
When installing slide rails for the RG-S7800C, ensure that the plane to carry the chassis should be installed on the plane of delimiters
of 1 RU, as shown in Figure 4-2.
Figure 4-2 Installing Slide Rails
Installing the Switch
