Ruijie Networks RG-S7800C Series Quick Installation Manual page 12

RG-S7800C Switch Quick Installation Guide, V1.2

Note:
Captive screw

To install the air filter, follow these steps:
1) Insert the air filter along the slide rail. Make sure the air filter is installed properly.
2) Tighten the captive screws.

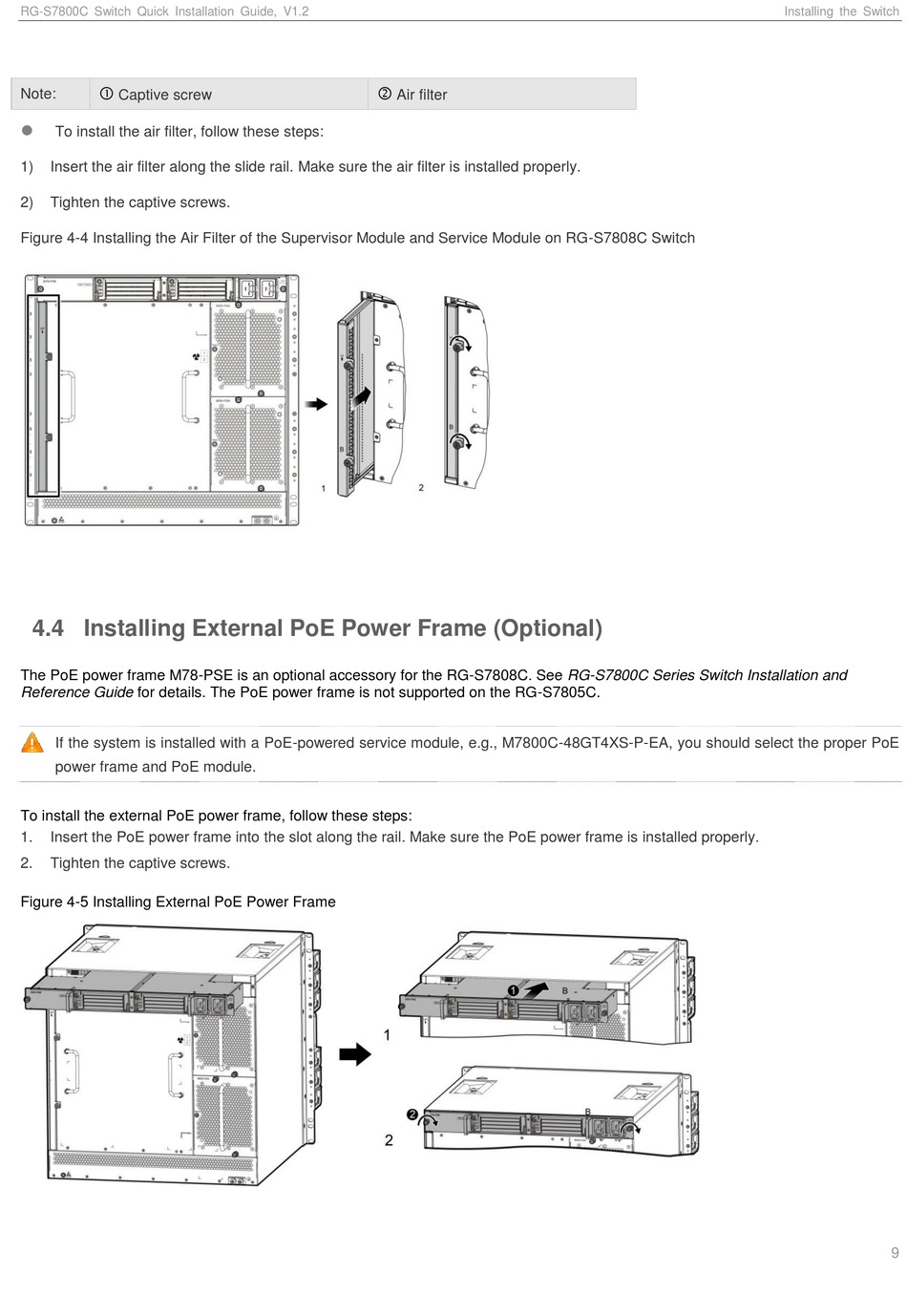

Figure 4-4 Installing the Air Filter of the Supervisor Module and Service Module on RG-S7808C Switch
4.4 Installing External PoE Power Frame (Optional)
The PoE power frame M78-PSE is an optional accessory for the RG-S7808C. See RG-S7800C Series Switch Installation and
Reference Guide for details. The PoE power frame is not supported on the RG-S7805C.
If the system is installed with a PoE-powered service module, e.g., M7800C-48GT4XS-P-EA, you should select the proper PoE
power frame and PoE module.
To install the external PoE power frame, follow these steps:
1. Insert the PoE power frame into the slot along the rail. Make sure the PoE power frame is installed properly.
2. Tighten the captive screws.
Figure 4-5 Installing External PoE Power Frame

Air filter
Installing the Switch
9
