RG-S7800C Switch Quick Installation Guide, V1.2

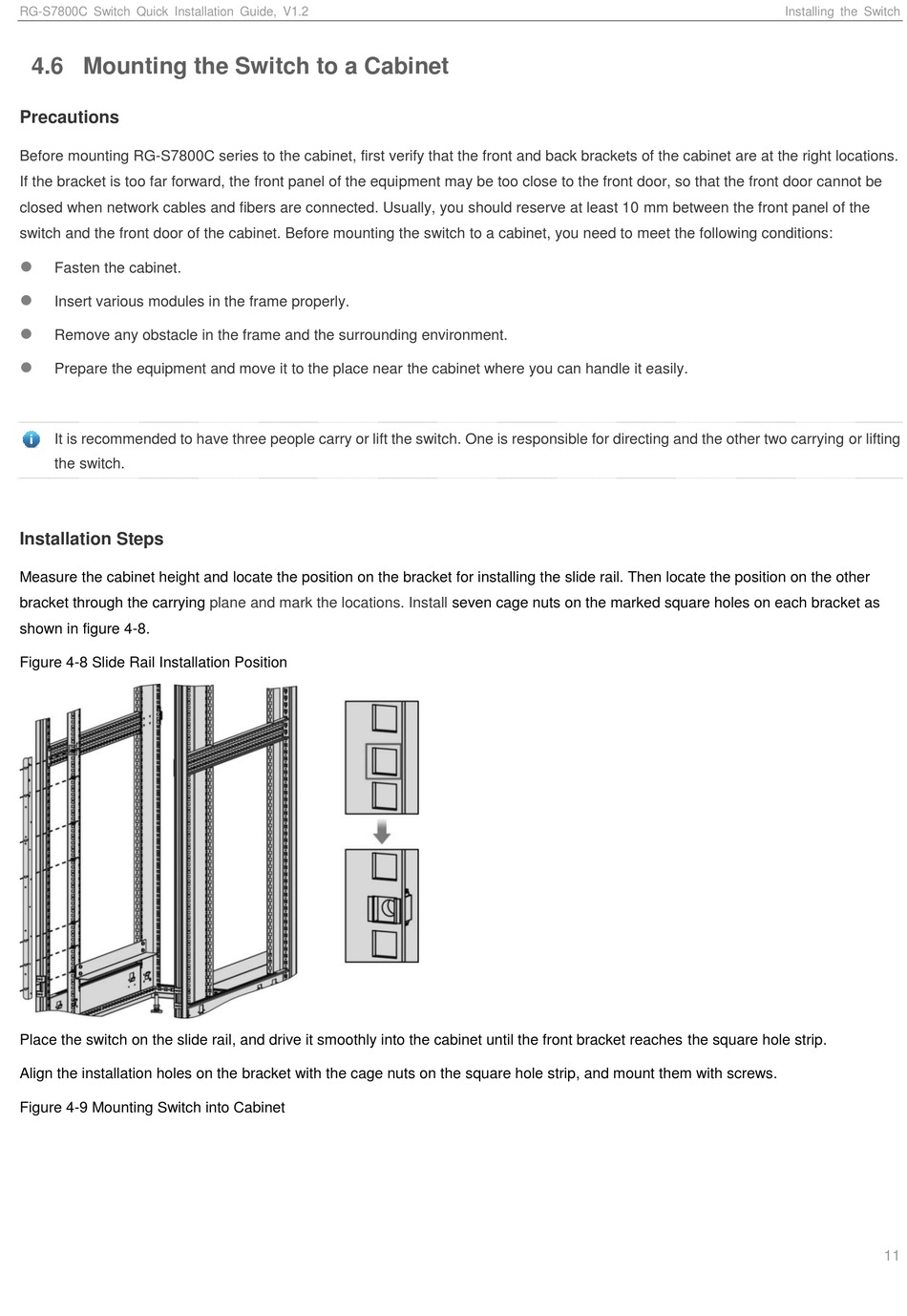

4.6 Mounting the Switch to a Cabinet

Precautions
Before mounting RG-S7800C series to the cabinet, first verify that the front and back brackets of the cabinet are at the right locations.
If the bracket is too far forward, the front panel of the equipment may be too close to the front door, so that the front door cannot be
closed when network cables and fibers are connected. Usually, you should reserve at least 10 mm between the front panel of the
switch and the front door of the cabinet. Before mounting the switch to a cabinet, you need to meet the following conditions:

Fasten the cabinet.

Insert various modules in the frame properly.

Remove any obstacle in the frame and the surrounding environment.

Prepare the equipment and move it to the place near the cabinet where you can handle it easily.
It is recommended to have three people carry or lift the switch. One is responsible for directing and the other two carrying or lifting
the switch.
Installation Steps
Measure the cabinet height and locate the position on the bracket for installing the slide rail. Then locate the position on the other
bracket through the carrying
shown in figure 4-8.
Figure 4-8 Slide Rail Installation Position
Place the switch on the slide rail, and drive it smoothly into the cabinet until the front bracket reaches the square hole strip.
Align the installation holes on the bracket with the cage nuts on the square hole strip, and mount them with screws.
Figure 4-9 Mounting Switch into Cabinet
plane and mark the locations. Install seven cage nuts on the marked square holes on each bracket as
Installing the Switch
11
