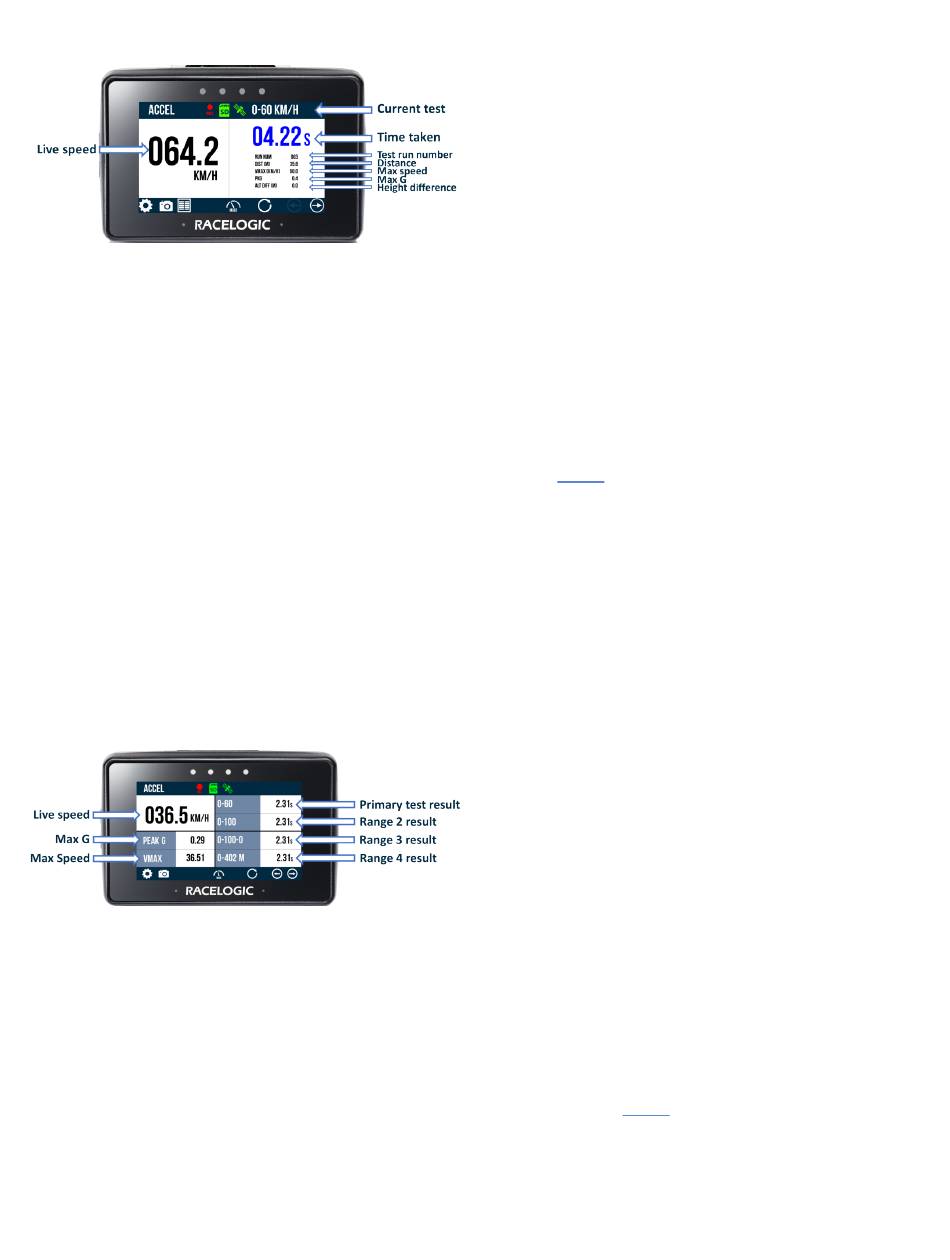

The screen is split into 2 halves:
• Left-hand side: This includes a live speed display which always show the current speed of the vehicle,
irrespective of any test start or end conditions. If the vehicle is travelling slower than 0.5 km/h or the satellite lock
is lost (less than 4 satellites), the value will display as 000.0.
• Right-hand side: This contains test information: time taken, run number, distance travelled, maximum speed
achieved (Vmax), maximum acceleration achieved (g) and height difference. These values will start to populate
once the start condition of the test is met. When the end condition is met, they will remain on the screen until the
start condition is met again. You can reset a test by pressing the
Note: If you are using the Performance Box Touch with a battery connected, the Current Test header will not include
units (unless you have selected 0 – ¼ mile 0 – ½ mile) to make space for the battery charge icon.
Accel - Secondary Screen
This screen displays current test information for all ranges. If you have enabled One Foot Rollout or Slope
Correction in the Accel Settings, the test header text will reflect the options.
The screen is split into 2 halves:
• Left-hand side: This includes a live-speed display which will always show the current speed of the vehicle,
irrespective of any test start or end conditions. If the vehicle is travelling slower than 0.5 km/h, or the satellite
lock is lost (less than 4 satellites), the value will display as 000.0. Information about maximum acceleration
achieved (Peak G) and maximum speed achieved (Vmax) is also available. These values will start to populate
once the start condition of the Primary test is met. When the end condition is met, they will remain on screen
until the start condition is met again. You can reset a test by pressing the
Reset button at the bottom of the screen.
Reset button at the bottom of the
